February 5, 2020

Backplane Systems Technology is proud to present iBase’s IB995 Based PICMG® 1.3 Full-Size CPU Card.

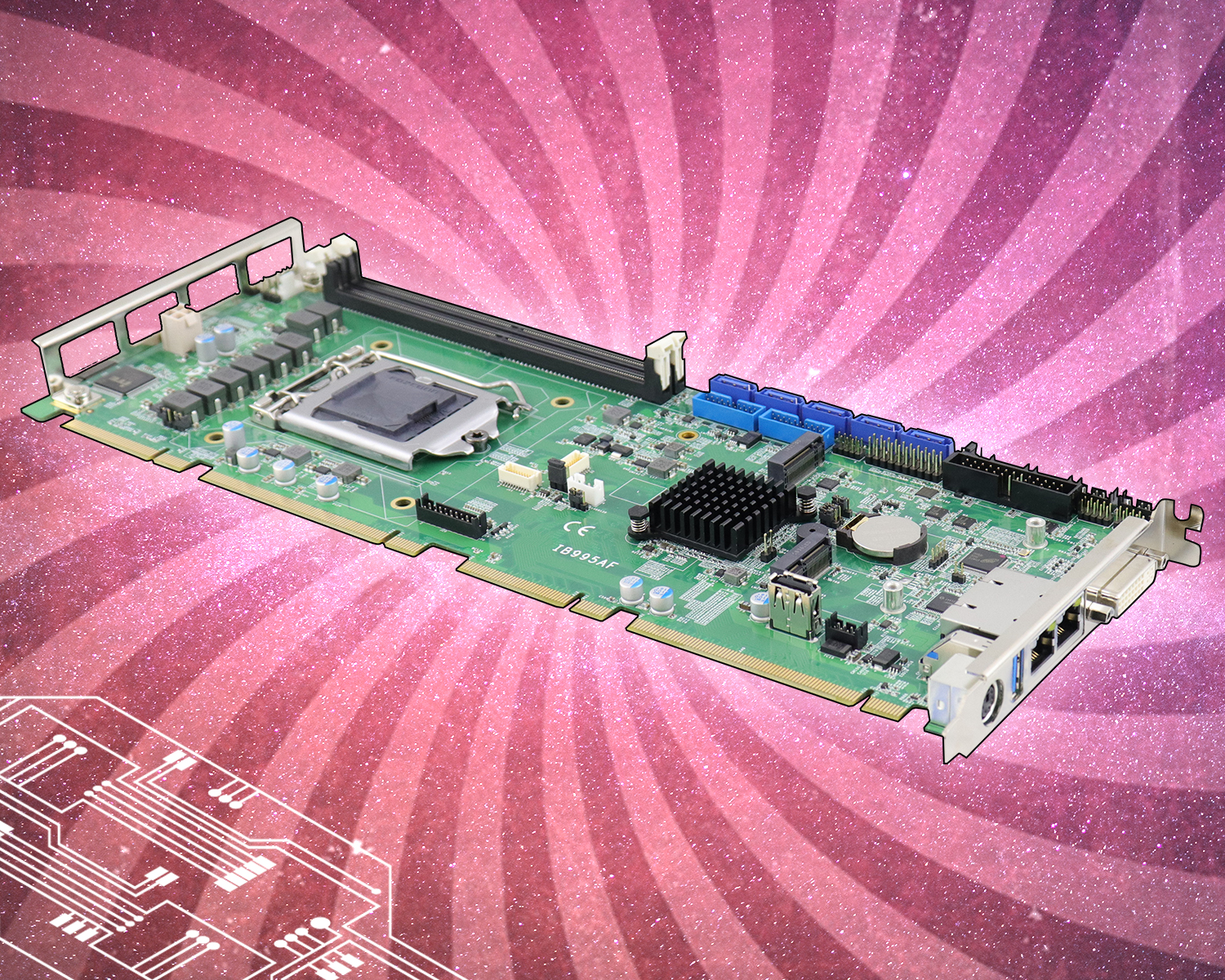

IB995 PICMG® 1.3 Full-Size CPU Card, a Slot-Card Server Designed for the 8th Gen and 9th Gen (codenamed “Coffee Lake Refresh”) of Intel’s Core Processors with support for up to 8 Cores and CNVi Architecture for Wireless Connectivity Devices. The new CPU Card delivers cutting-edge performance with Intelligent Security and Hardware Monitoring Features for Real-Time Applications in Process Control, Surveillance or Imaging in the Field of Automation, Transportation, Medical Technology and Digital Surveillance Markets.

This Full-Size CPU Card is currently available in 3 models, integrated with different chipsets: C246 (IB995AF-C246), Q370 (IB995AF) and H310 (IB995EF) – all of which feature an M.2 Storage Interface with NVMe (Non-Volatile Memory Express) that enables rapid storage with write speeds of up to 3500MB/s (7 times over SATA SSDs), and up to 32 GB of DDR4-2166/2400 memory.

Additionally, the board offers advanced TPM 2.0 to provide a high level of Hardware-Based security that carries out Cryptographic Operations for access control and authentication and prevent phishing attacks. With Intel® AMT 11.6, remote maintenance of Operating Systems and Hardware enables IT Managers to protect Networked Computers to improve service quality and reduce service operation costs.

The IB995 provides a wide range of interface and expansion flexibility. These include DVI-D, DVI-I and 24-bit dual channel video outputs, and three USB 2.0, five USB 3.0, five SATA III with RAID, four serial ports and two M.2 sockets (M/E key). It also comes with two Gigabit Ethernet, a PCIe x16 (from backplane), and four PCIe x1 expansion slots (configurable as one PCIe x4). The number of USB 3.0 and SATA varies, depending on the IB995 series.

Key Features:

  • 9th/8th Gen Intel® Xeon® E / Core™ i7/i5/i3 Pentium® QC/DC Processor, up to 4.7GHz
  • 2x DDR4 DIMM, Max. 32GB
  • 2x PCI-E Gigabit LAN
  • Intel® Processor Integrated Graphics, Supports DVI-I / DVI-D / LVDS
  • 3x USB 2.0, 5x USB 3.0, 5x SATA III, 4x COM
  • 2x M.2 Socket (M/E key)
