September 23, 2019

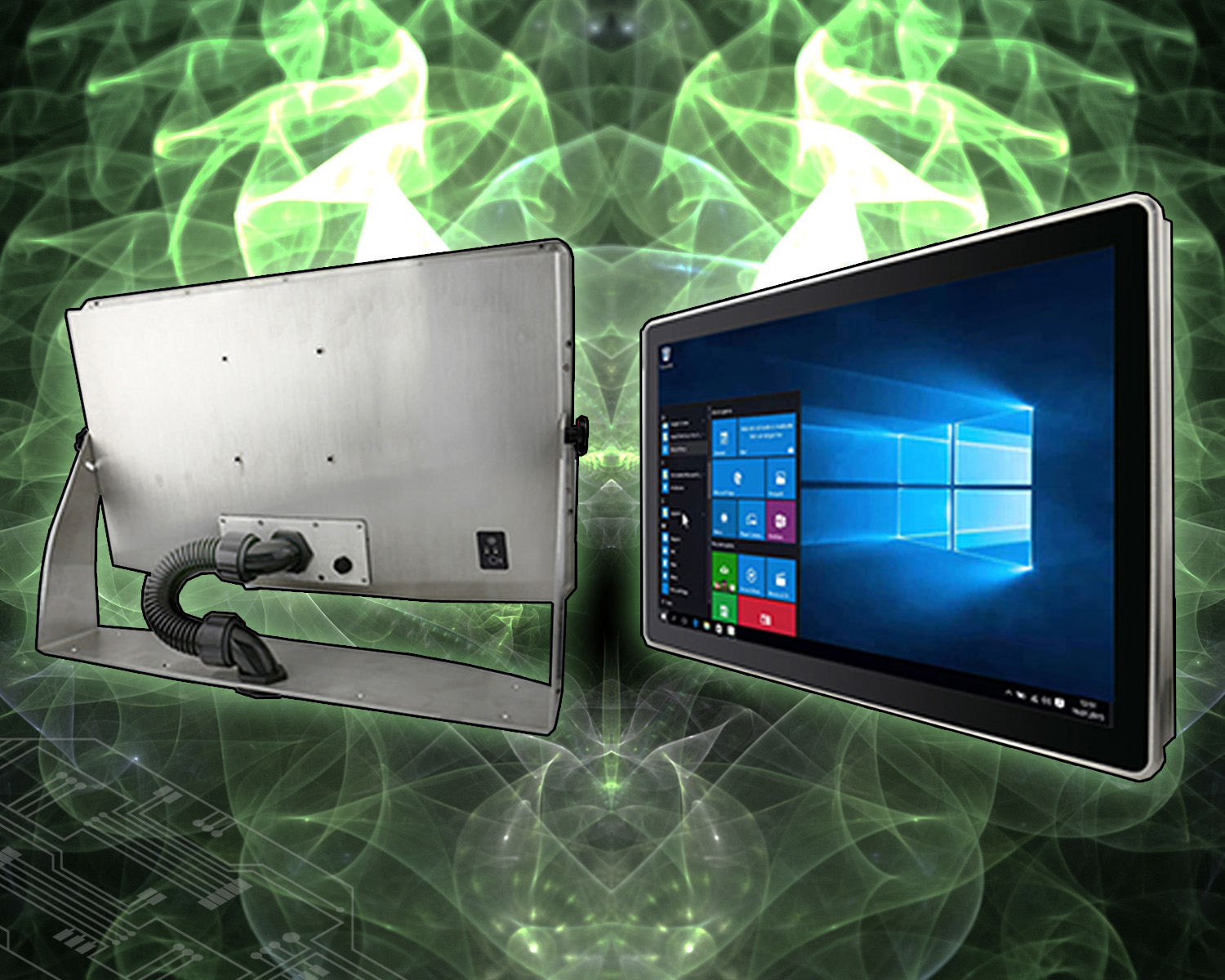

Backplane Systems Technology has introduced Winmate’s New IP69K Stainless P-Series with Waterproof Conduit Pipe Panel PC.


The IP69K Stainless P-Series Panel PC with Waterproof Conduit Pipe, feature Screen Sizes Ranging from 15” ~ 23.8”, with P-Cap Touchscreen to ensure a user-friendly Multi-Touch experience and a Waterproof Conduit Pipe for extra cable protection. This P-Series with Conduit Pipe is engineered to be the Perfect Terminal for Operations in demanding Environments that call for Uncompromising Hygiene requirements, such as in the Food, Chemical or Pharmaceutical Industries


IP69K P-Series Panel PC consists of SUS304 Stainless Steel, the housing is full IP69K-rated Water, Dust and Corrosion-Proof, withstanding extensive wash downs with corrosion resistance against cleaning agents, especially against Close-Range High-Pressure (up to 30 Bar) and High Temperature (up to 80°C) Wash Downs.

The custom-built Waterproof Conduit Pipe is preinstalled to give an additional layer of protection for the Peripheral Cables connected to the device. The included Air Vent Valve comes with an Automatic Mechanical System to act as a Safety Device that controls and maintains pressure without the user’s assistance in order to avoid air related problems.

The Projective Capacitive Technology the P-Series delivers excellent responsive performance, even in extreme environments, by supporting multi-touch and allowing for the use to operate it easily with fingers.

The P-Series boasts versatile mounting options, including Panel, Yoke and VESA Mount, for installation in all the industrial scenarios.


The P-Series IP69K Panel PC is equipped with a high performing Intel® Core™ i5-7200U Kaby Lake processor, meaning it can easily handle Multimedia content. The wireless connectivity is not compromised thanks to the support for Wi-Fi and Bluetooth for real-time Communications and Data Transfer.

Key Features:

  • Custom-built Waterproof Conduit Pipe
  • Close-Range High-Pressure (up to 30 Bar)
  • High Temperature (up to 80°C) Wash Downs
  • IntelRCore i5-7200U Kaby Lake 2.5GHz Processor
  • 4GB DDR4 2133 (Optional up to 16GB)
  • Screen Sizes Ranging from 15” ~ 23.8”
  • Support Multiple Mounts: Panel, Yoke, VESA.
