February 3, 2020

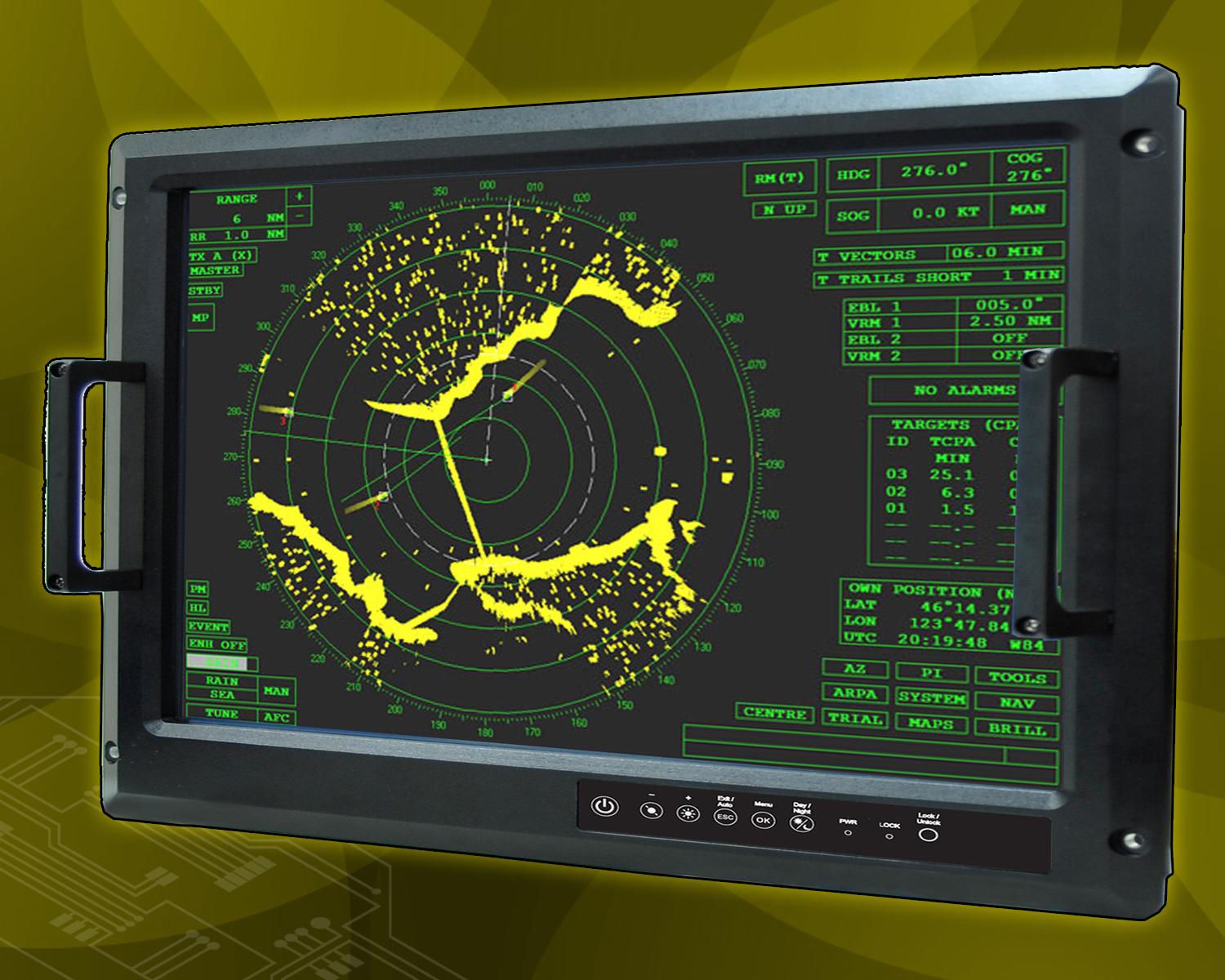

Backplane Systems Technology is proud to present Winmate’s MIL-Panel PC with Intel Kaby Lake and MIL-DTL-38999/1 Connector which is MIL-STD 810F/G and MIL-STD 461E/F compliant.

A complete military-grade video wall solution engineered in sizes up to 32” and with 4K-UHD/HD options, satisfying users looking for a larger screen for sufficient data display and ultra-high resolution visual information solutions to minimize errors and improve operational efficiencies. Taking ergonomics into consideration the panels are built with a 0% – 100% LED dimmer and P-Cap technology for a user-friendly sunlight/night-time readable, multi-touch experience.

To maximize the use of the space effectively, each display comes with a true flat and slim bezel, which will also leave the digital sources unobstructed; apart from that, support for various mounting solutions (rack mount/ chassis mount) suits different installation needs.

Defence and inspection are a 24/7, 365-day mission. Consequently, these video wall solutions feature true ruggedness. The bezel consists of Aluminium with Anti-Corrosion treatment. The devices are MIL-STD 810F/G and MIL-STD 461E/F compliant, that is, they can withstand extreme environmental conditions such as high and low temperature, shock, vibration, humidity, and meeting the requirements for the control of electromagnetic interference.

The protection from electromagnetic interference is further enhanced by the application of ITO EMI shielding. Winmate uses the MIL-DTL-38999/1 military grade power connector to ensure reliable power and rugged mechanical performance.

Key Features:

  • 15~32” Projected Capacitive (P-Cap) Multi-touch Screen
  • Compliant with Military Standard MIL-STD-810G/F
  • Anti-Corrosion Housing
  • Flush and Rack Mount Mechanical Design (8U)
  • Convenient On-Screen Display Controls
  • Built-in Light Sensor for Auto Brightness Control
  • Military Grade Power Connector (MIL-DTL-38999/1)
  • Default with Standard AR Glass
  • DC 9~36V Power Input with Isolation (Optional)
