January 17, 2020

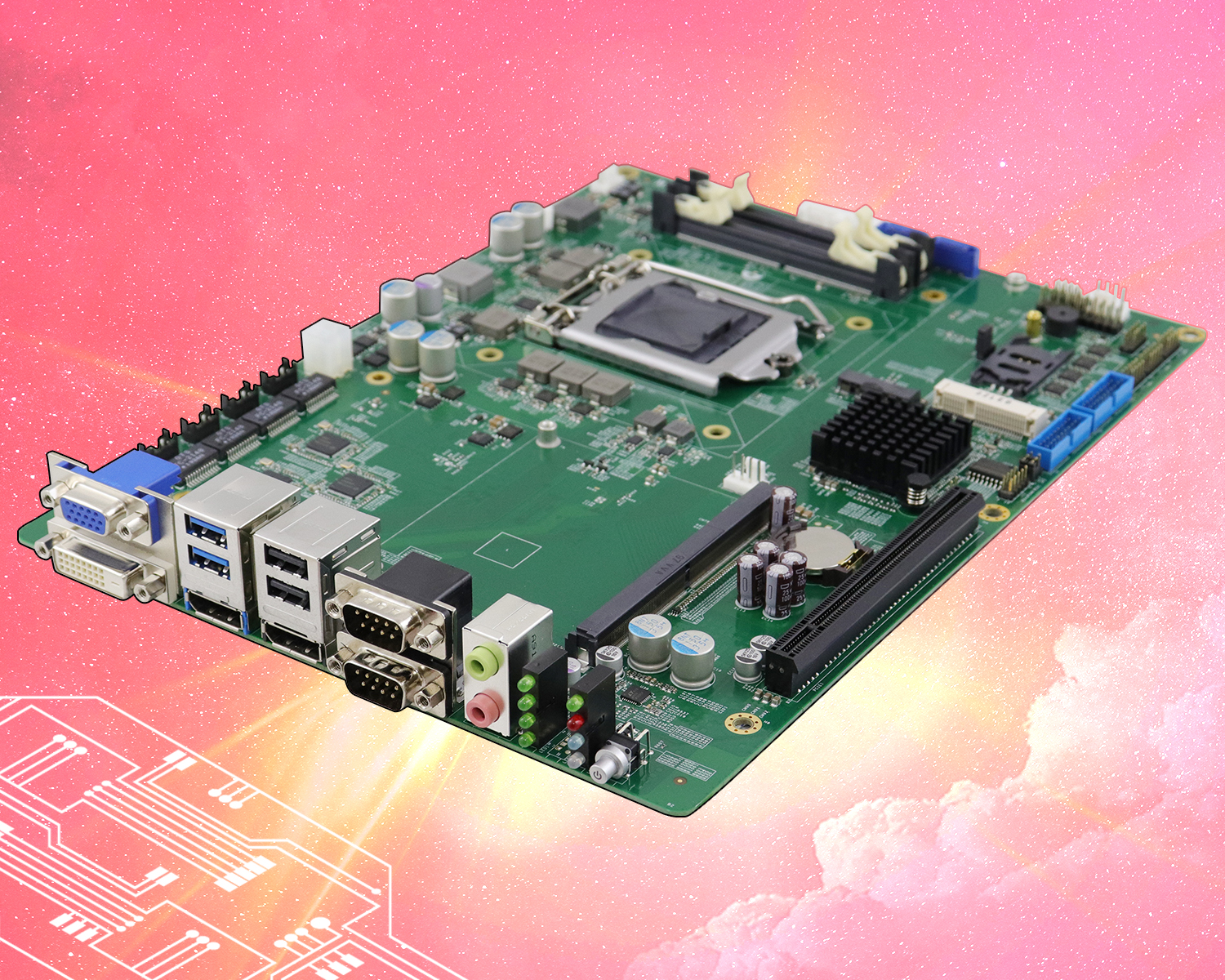

Backplane Systems Technology is proud to present iBase’s MT800M-P, a New NVIDIA MXM Compatible Motherboard Designed for AIoT Applications.

The MT800M-P supports the latest 8th Generation Intel® Core™ processor family, enabling customers to benefit from Optimized Processing and Graphics Performance and Enhance I/O Capability.

With the increasing demand of AI-enabled inference platforms, MT800M-P features an MXM socket for NVIDIA’s graphics cards (up to 190w) with GPU acceleration to harness its cutting-edge performance and responsiveness to power currently prevalent AI services such as Speech Recognition, Image Analysis, Visual Search and Media Processing.

Combined with the latest MXM 3.0/3.1 GPU modules, the MT800M-P leverages the advantages of the NVIDIA’s GPU technology to deliver parallel processing performance with unmatched power efficiency. The MT800M-P is suitable for artificial intelligence applications in the retail, banking and transportation industries.

In addition to four display interfaces and 32GB system memory support, MT800M-P offers rich network connectivity with four Gigabit Ethernet and high speed I/O peripheral expandability through its six USB 3.1, two USB 2.0, two SATA III, and six serial ports. Expansion is provided by a fast PCIe x16, a Mini PCIe and an M.2 (M-key) slot. The board measures 270mm by 220mm and has 24V power input. It runs on both Windows 10 and Linux Ubuntu operating systems.

Key Features:

  • 8th Gen Intel® Core™ i7/i5/i3 Processors
  • 2x DDR4 SO-DIMM, Max. 32GB
  • 4x Intel® Gigabit LAN
  • 2x DisplayPort,1x DVI-D, 1x VGA
  • 6x USB 3.1, 2x USB 2.0, 2x SATA III, 6x COM
  • 1x PCI-Ex16 (3x PCI-E x4 Signal, Optional Riser Card), 1x Mini PCI-E Socket, 1x M.2 (M-Key)
  • 1x MXM Socket Supports NVIDIA MXM GPU Card (Up to 190W)
