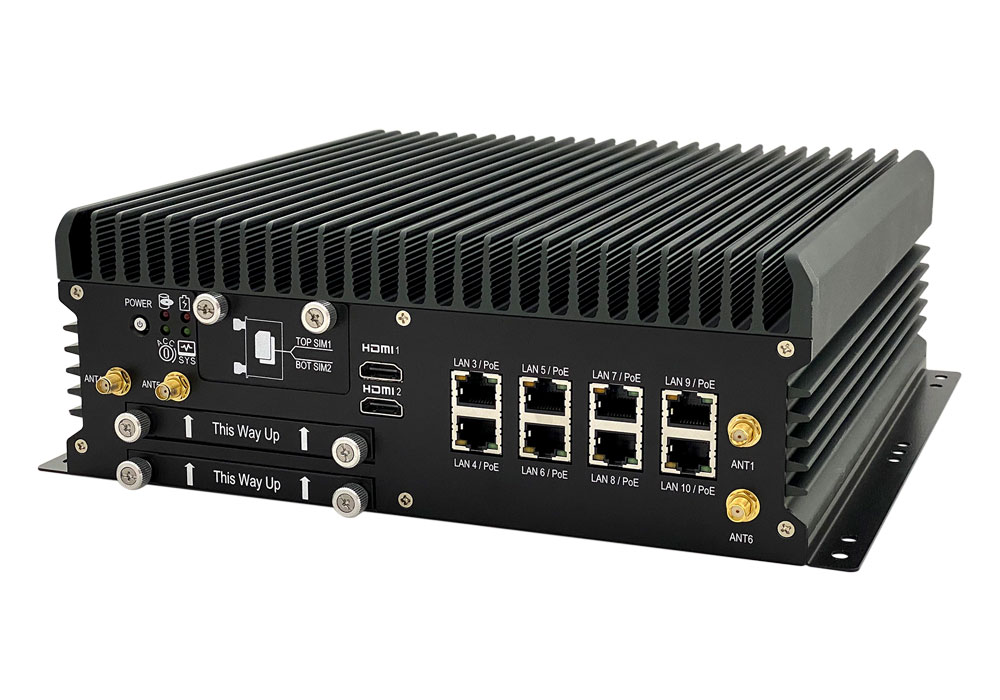

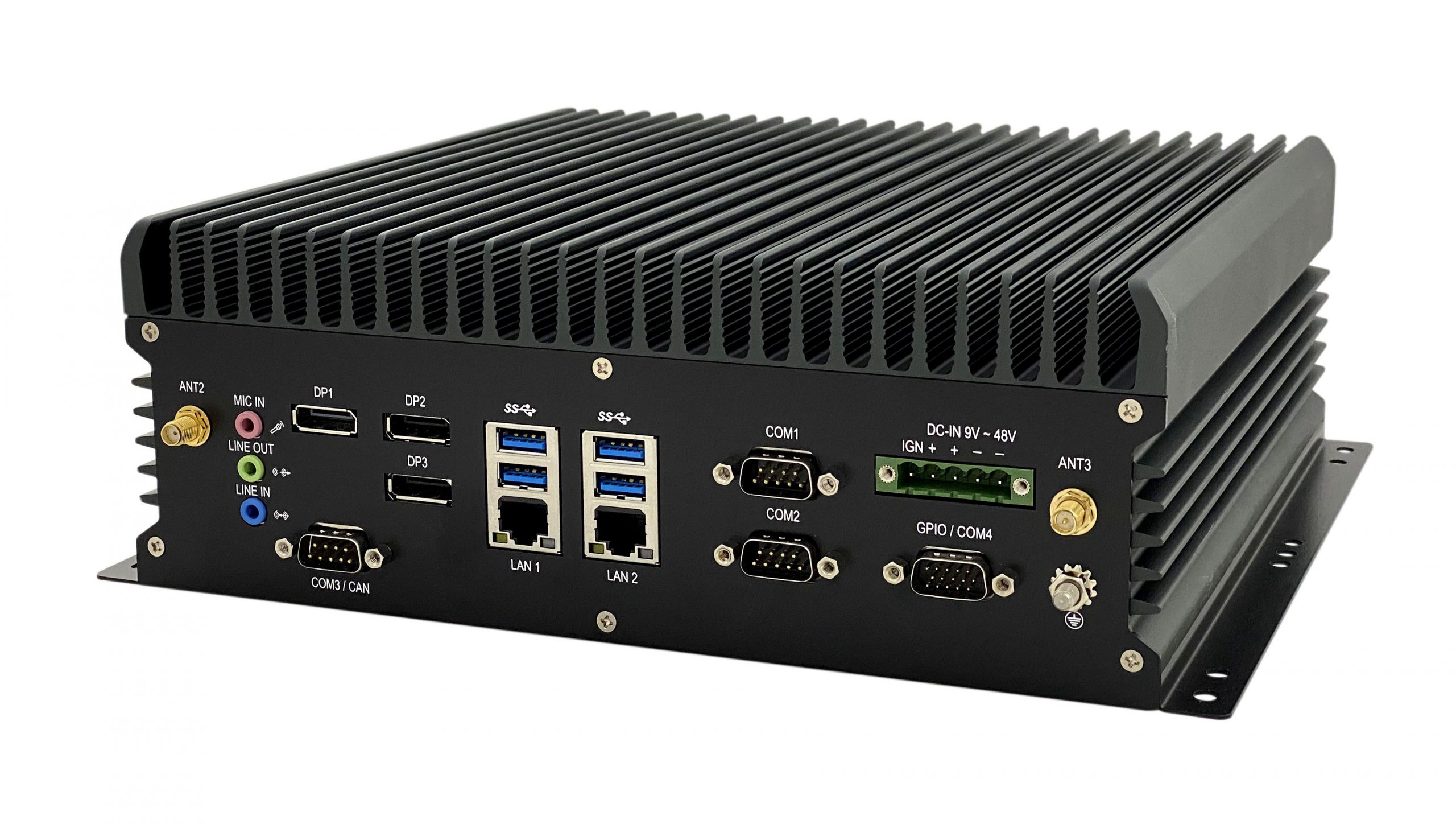

ABOX-5210G

The ABOX-5210G Fanless Computers are powered by Intel Gen 10 Core i9 and NVIDIA® GeForce with up to GTX 1660 GPU supporting 1408 CUDA Cores. The new ABOX-5210G was engineered using Dual Hot Swappable SATA Storage RAID 0,1,5. As for the expansion, it has two Full Mini-PCIe Slots, one M.2 A-E Key 2230/3030 slot, and one M.2 B Key 2240 for two SIM Card Sockets for LTE.

ABOX-5210G Fanless Computers can be used in AIoT and Smart Cities solutions, assisting systems in detecting objects, performing basic classification, and alerting drivers. It can support various applications, such as surveillance & security, traffic flow analysis, smart parking, and autonomous vehicle operations.

  • Intel GEN 10th 10 Cores Xeon W-1290TE / i9-10900TE
  • NVIDIA® GeForce up to GTX 1660 GPU
  • Support 1408 CUDA Cores
  • 8 x GPI, 4 x GPO and 3 x RS-232/422/485
  • 1 x M.2 B key, 1 x M.2 A-E key & 2 x miniPCIe expansion slots
  • Dual Hot Swappable SATA Storage RAID 0,1,5
  • 9-48V DC Input and Operating Temp.: -40~70°C
  • 10 x GbE RJ45 (Optional 8 x PoE and 8 x M12 connectors)
Part Number ABOX-5210XXP-YY (XX= Z1, i9, i7, i5, i3 or C1; P = PoE function; YY=GA (w/GTX1050TI), GB (w/GTX1650) or GC (w/GTX1660)
Description Intel Gen 10th 10 Cores Xeon, i9 CPU w/ 10 x GbE (Optional 8 x PoE)/3 x COM/ 3 x DP/ 2 x HDMI/4 x USB 3.0/ NVIDIA® GeForce GTX GPU/ 9-48V Input AI GPU Computing
