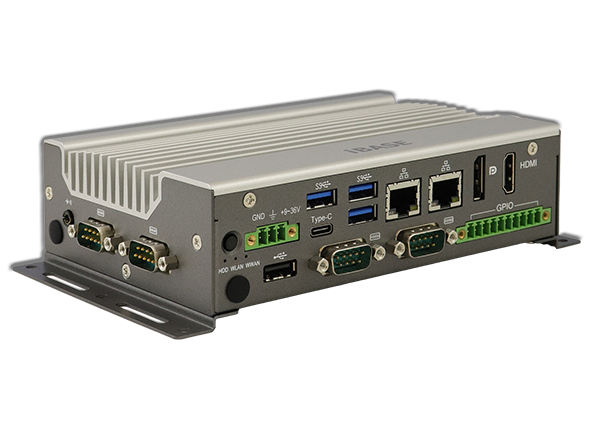

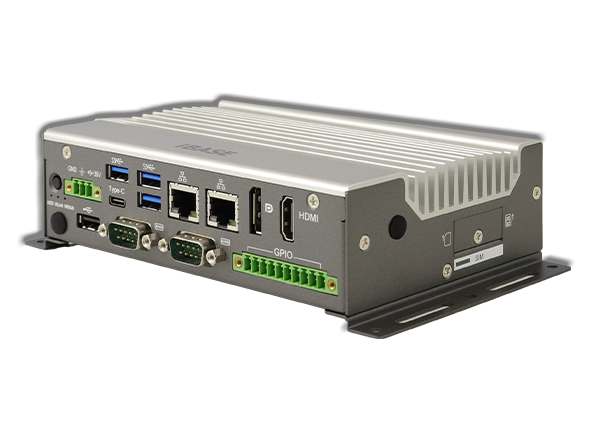

AGS104T

Ultra-Compact IoT Gateway Edge Computing System with Intel® Atom® x7433RE/x7211RE Processors



Key Features:

  • Fanless system with IBASE MBE104T proprietary board
  • Intel® Atom® x7433RE/x7211RE Processors (Amston Lake platform)

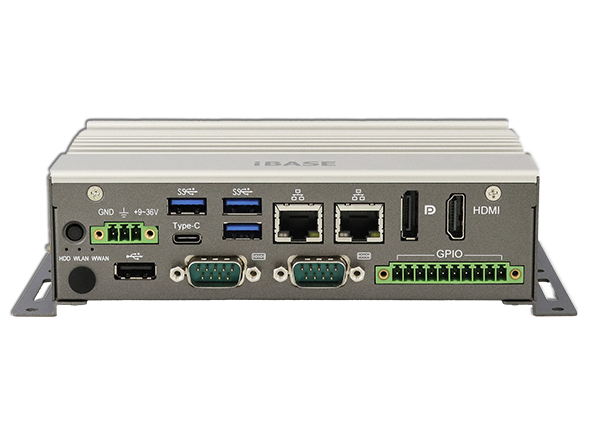

  • HDMI & DisplayPort, USB Type-C (For DP & USB 3.2), GPIO 4-in/4-out
  • 1x M.2 B-Key 3052, supports 5G/4G/LTE module
  • 1x M.2 E-Key 2230, supports WiFi/BT, 1x full-size Mini PCI-E for mSATA
  • 2x 2.5G LAN port, 3x USB 3.2, 1x USB 2.0, 4x COM (RS232/422/485)
  • 9V~36V DC wide-range power input
  • Supports over/under/reverse voltage protection
  • Wide-range operating temperature from -40°C to 70°C

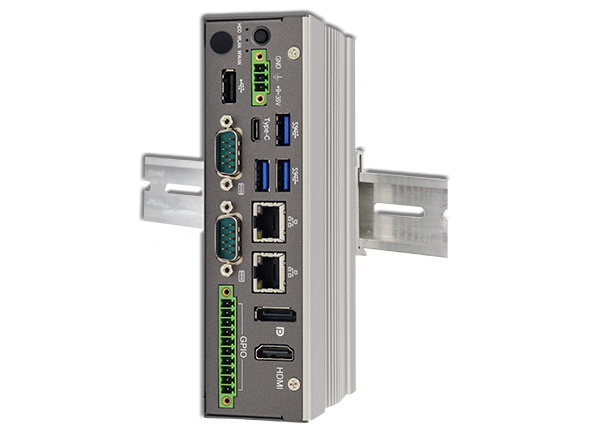

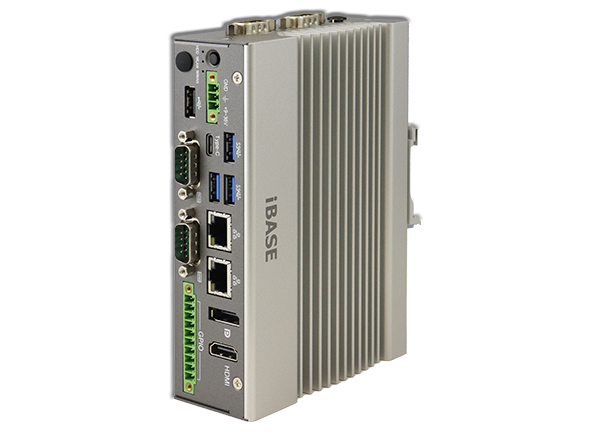

  • Supports DIN-rail mount, wall mount & TPM 2.0

Backplane Systems Technology is pleased to present iBase’s AGS104T. The AGS104T is the latest addition to IBASE’s IoT gateway lineup, powered by Intel® Atom® x7433RE and x7211RE processors (formerly known as Amston Lake). Designed specifically for demanding industrial environments, this fanless gateway computer boasts an extended operating temperature range of -40°C to 70°C, making it an ideal solution for critical IoT deployments.

Building on the strengths of its predecessors, the AGS104T supports up to 16GB of DDR5-4800 memory, ensuring high-speed data processing. It features dual 2.5G Ethernet ports, versatile COM ports (RS232/422/485), and expansion options through M.2 and Mini PCI-E slots. For added security and reliability, it comes equipped with TPM 2.0, a wide-range 9V~36V DC power input with comprehensive voltage protections, and GPIO 4-in/4-out for enhanced control functions.

Compact and flexible, the AGS104T supports both DIN-rail and wall-mount installations, offering a wide range of I/O interfaces, including HDMI, DisplayPort, and USB 3.2. These features make it suitable for various industrial applications. Like all IBASE products, the AGS104T is engineered for long-term reliability and high performance, reaffirming IBASE’s commitment to delivering innovative IoT solutions.

Ordering Information

AGS104T-7433 Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom™ Processor x7433RE, 2x 2.5G Ethernet, 4x COM, with industrial-grade 16GB DDR5 memory + 128GB mSATA SSD, w/o power adaptor, w/ Wall-mount & Din-rail brackets (RoHS2)
AGS104T-7433M Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom™ Processor x7433RE, 2x 2.5G Ethernet, 4x COM, w/o memory, storage, power adaptor, w/ Wall-mount & Din-rail brackets (RoHS2)
AGS104T-7211-8G Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom™ Processor x7211RE, 2x 2.5G Ethernet, 4x COM, with industrial-grade 8GB DDR5 memory + 128GB mSATA SSD, w/o power adaptor, w/ Wall-mount & Din-rail brackets (RoHS2)
AGS104T-7211M Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom™ Processor x7211RE, 2x 2.5G Ethernet, 4x COM, w/o memory, storage, power adaptor, w/ Wall-mount & Din-rail brackets (RoHS2)
