Expandable Fanless & Ventless System with 14th /13th Gen Intel® Core™ i9/i7/i5/i3 desktop processors (35W TDP)

Key Features:

  • Fanless system with iBASE MBE240 proprietary board
  • 14th/13th Gen Intel® Core™ desktop processors
  • Support DDR5-5600 memory, up to 64GB Max. (ECC can be optional)
  • 2x Intel® 2.5G LAN, 2x Intel® GbE (Support 802.3 at PoE++), 3x M.2 sockets (M-Key/B-Key/E-Key)
  • Support PCI Express Generation 5 for 1x PCI-E(16x) expansion slot
  • Support Over/Under/Reverse voltage protection
  • Dual SIM slots support WWAN redundancy, iAMT (16.1), dTPM(2.0)
  • 2x 2.5” Storage (Support RAID 0/1)

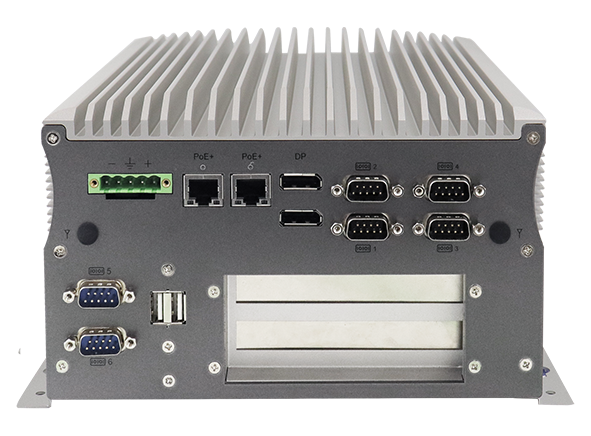

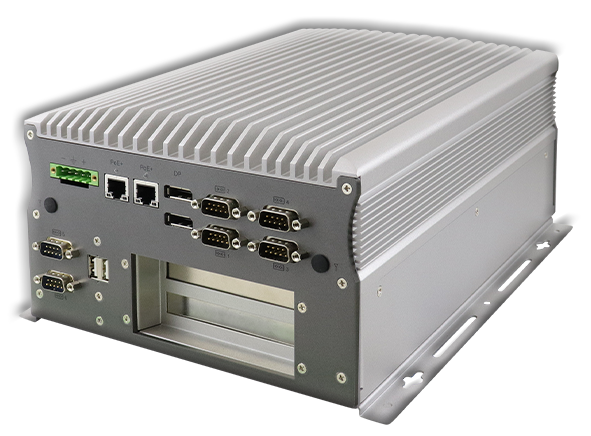

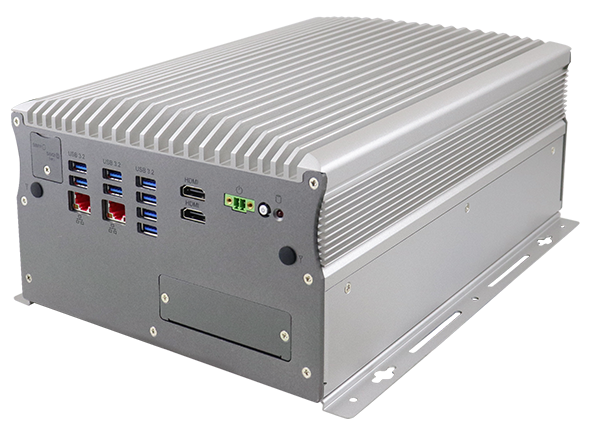

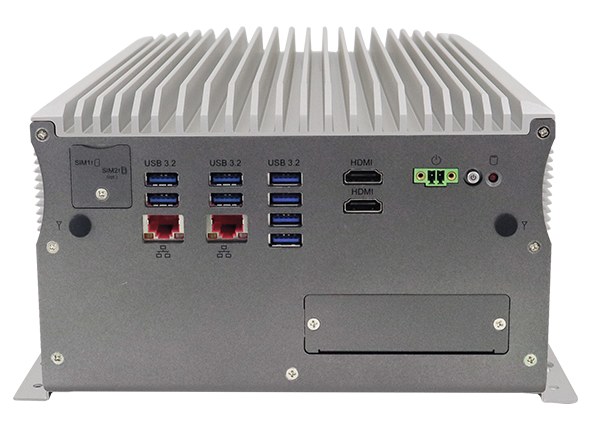

Backplane Systems Technology is pleased to present iBase’s AMI242. The iBASE Intelligent System AMI242 is a powerful, expandable fanless and ventless system designed to meet the demands of modern computing environments. This system is built around the iBASE MBE240 proprietary board and supports 14th and 13th Gen Intel® Core™ i9, i7, i5, and i3 desktop processors with a 35W TDP, providing robust performance for a variety of applications.

A key feature of the AMI242 is its support for DDR5-5600 memory, with a maximum capacity of 64GB, and optional ECC for enhanced reliability. The system is equipped with advanced networking capabilities, including two Intel® 2.5G LAN ports and two Intel® GbE ports that support 802.3 at PoE++, ensuring high-speed and versatile connectivity.

The AMI242 offers extensive expansion options with three M.2 sockets (M-Key, B-Key, E-Key) and a PCI Express Generation 5 slot for 1x PCI-E (16x) expansion. This makes it highly adaptable to various peripheral requirements. Additionally, the system features dual SIM slots for WWAN redundancy, iAMT (16.1) for remote management, and dTPM (2.0) for enhanced security.

Storage options include two 2.5” slots supporting RAID 0/1 configurations, providing both performance and data redundancy. The system also includes protections against over, under, and reverse voltage, ensuring reliable operation in challenging conditions.

Ideal for industrial and commercial applications, the iBASE AMI242 offers a robust, fanless solution for high-performance computing needs.

Ordering Information

AMI242AFM (AMI) Aluminum Chassis with MBE240 (Q670E PCH), Fanless Design w/o CPU/memory/SSD/Power adaptor, Support iAMT (16.1), mounting brackets, 1x expansion slot (IP218 riser card) (RoHS2)
AMI242AFM-R (AMI) Aluminum Chassis with MBE240 (R680E PCH), Fanless Design w/o CPU/ECC memory/SSD/Power adaptor, Support iAMT (16.1), mounting brackets, 1x expansion slot (IP218 riser card) (RoHS2)
