ARMPAC-6B Series

HMI with a projective capacitive touch screen that comes in 7” TFT-LCD and upcoming 10.1” TFT-LCD. It is powered by a Cortex-A72 processor with an onboard memory of 4GB SDRAM and storage of 16GB/32GB eMMC (optional). Besides, it has powerful graphic performance as well for supporting different software applications

Key Features:

  • Rugged Designed for Industrial Usage
  • Flat Front Panel Designe
  • Powerful Qual Core ARM Cortex-A72 Processors
  • Onboard 4GB LPDDR4 Memory
  • Onboard 16GB/32GB eMMC Flash
  • DC 24V Power Input With 3kV Power Isolation

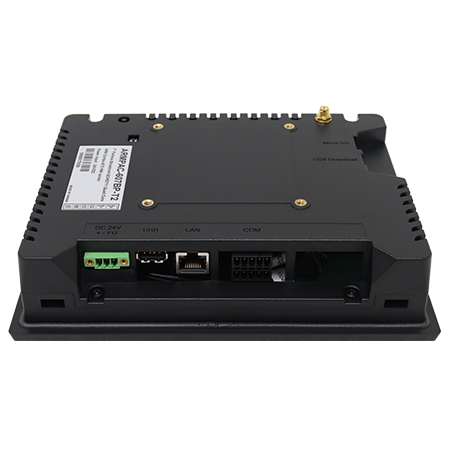

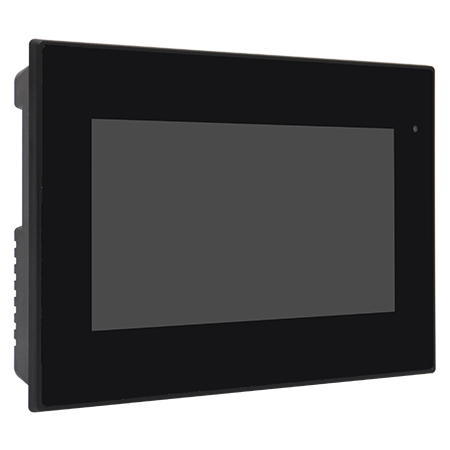

ARMPAC-607BP
7″ 800×480 fanless HMI barebone with Broadcom BCM2711 quad core ARM
Cortex-A72,4GB LPDDR4 ,16/32GB eMMC,PCAP touch, 24V DC input with
3kV isolated, plastic chassis.

ARMPAC-610BP
10.1″ 1280×800 fanless HMI barebone with Broadcom BCM2711 quad core
ARM Cortex-A72,4GB LPDDR4 ,16/32GB eMMC,PCAP touch, 24V DC input
with 3kV isolated, plastic chassis.
