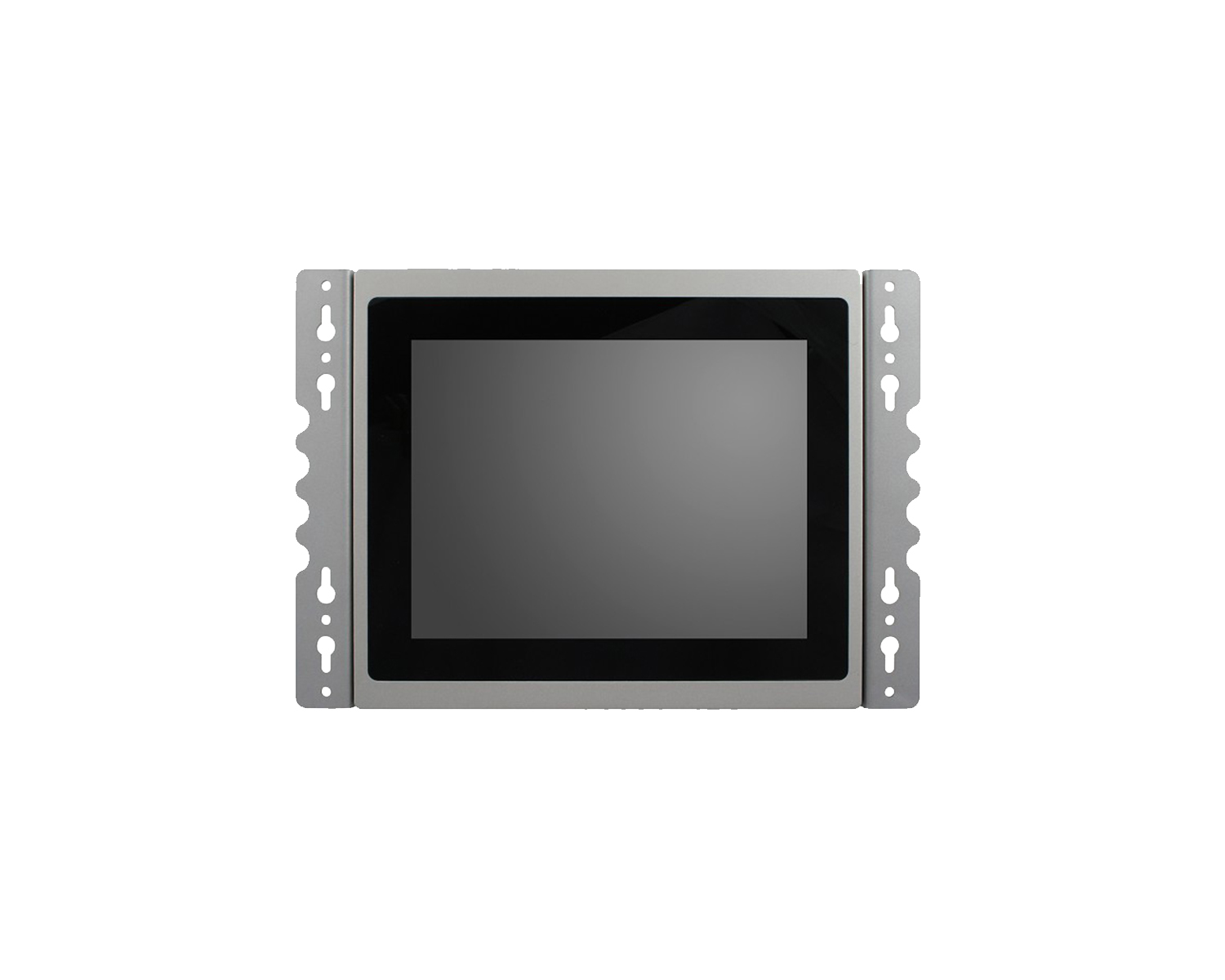

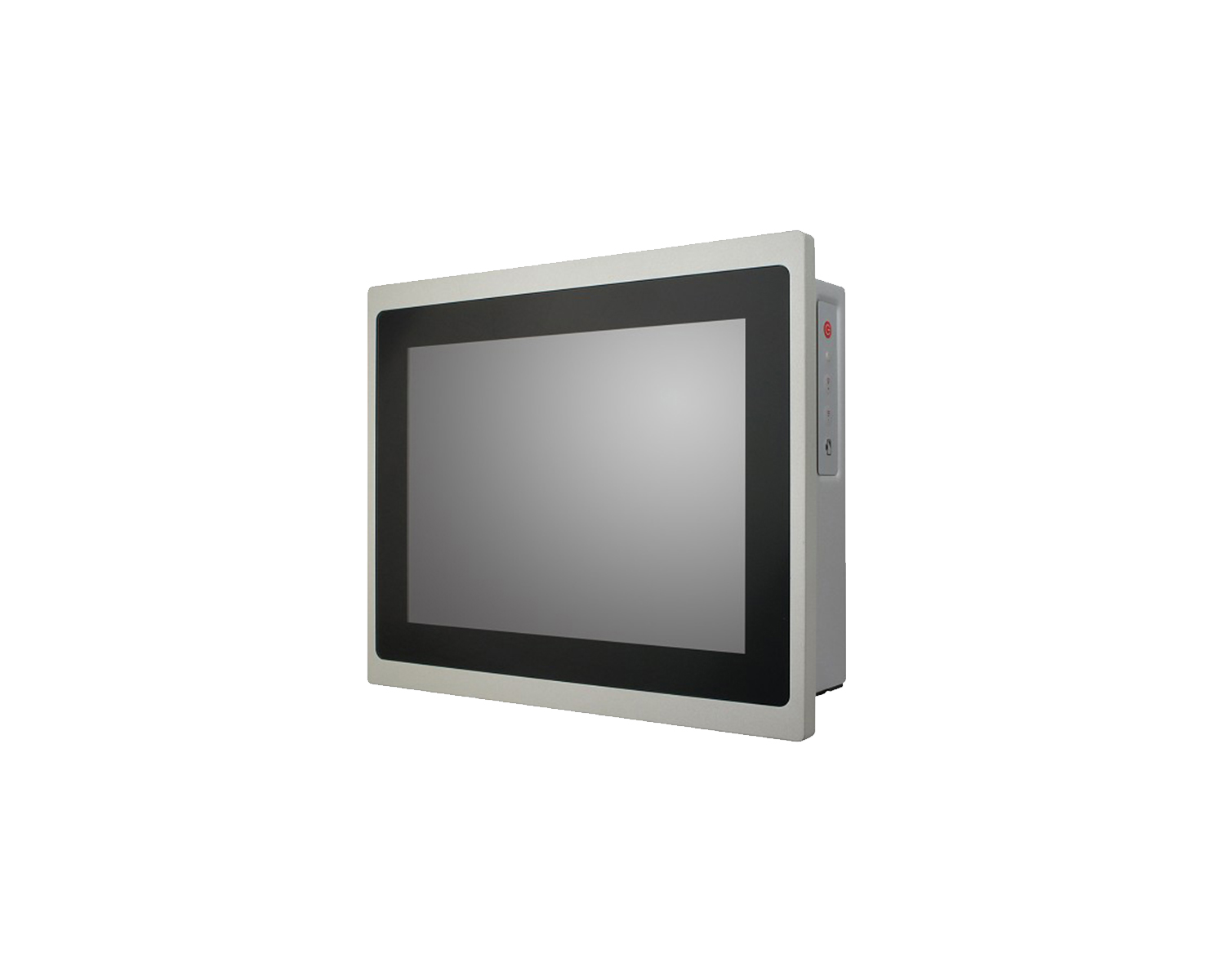

BYTEM-103-PC

Based on the quad-core Intel® Atom® processor E3845 and EN50155 certified for railway applications. It provides high computing performance and low power consumption, silently operating at temperatures from -40°C to 75°C.

Key Features:

  • EN50155 Certified
  • Full Flat Bezel Design
  • IP65 Front-Panel Waterproof Protection and Full IP54 Protection
  • Additional Rack Mount Kit
  • One M12 LAN Port
  • 24V DC Power Input with M12 Connector, 72V DC or 110V DC (option)
  • Programmable Membrane Keypad
BYTEM-103-PC 10.4” (1024 x 768) Flat Panel Design Panel PC with IB897, Intel® Atom® Processor E3845 1.91GHz, 4GB DDR3L, SO-DIMM, 64G SSD, projected capacitive touch, w/o power adaptor
Power adaptor (optional) AC 100V~240V input, 24V DC output 90W power adaptor, IBASE P/N: A005PS090W0100600P
