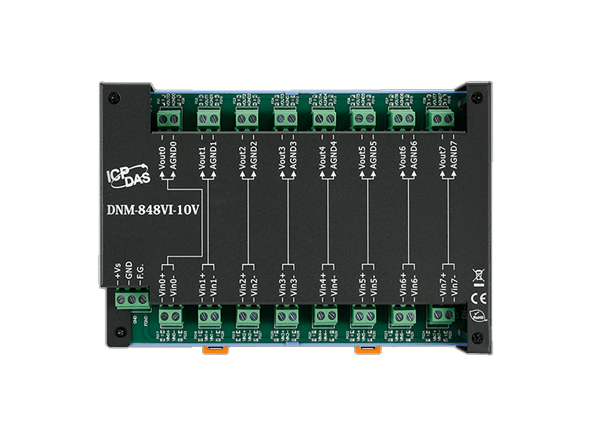

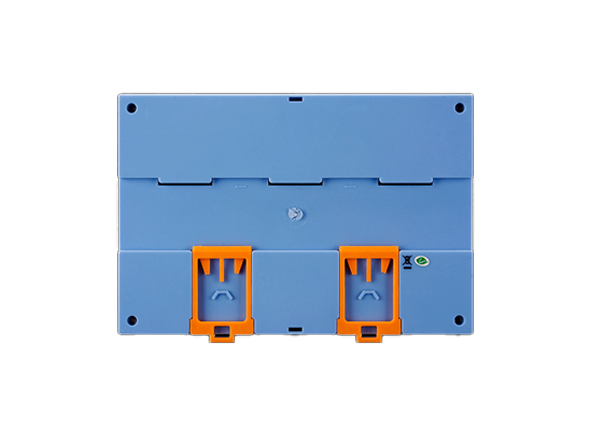

DNM-848VI-10V

8-channel 10 VDC Voltage Attenuator with channel-to-channel isolation

KEY FEATURES:

AC/DC Source Input
• High Voltage Input Measurement
• Linear Attenuation Ratio
• High Input Impedance
• Easily wire connection

Backplane Systems Technology is proud to introduce ICP DAS’s DNM-848VI-10V.  The voltage input attenuator series are the DNM-843VI and DNM-848VI. The maximum input range can be reduced to 10 V and is between 80 and 800 V.



To prevent noise interference from inputs to outputs or channel to channel, provide 3000 VDC channel-to-channel isolation as well as 3000 VDC intra-module isolation. It can be utilised with analogue input modules like I-7017, I-87017, M-7017RMS, and I-87017W-RMS to measure the high voltage.



EMS Security ESD (IEC 61000-4-2) 3 kV for power line voltage, 4 kV contact for power lines, input and output channels, and 8 kV air for random point surges (IEC 61000-4-5).



Channels for analogue input 8 \sType AC/DC Precision 1% of FSR Voltage Range 10 Vpp Bandwidth 30 KHz. Channel-to-Channel Isolation 3000 VDC Input Impedance >1 M. 3000 VDC Intra-module Isolation



8 analogue output channels, AC/DC, 10 Vpp voltage range. Power input +10 VDC to +24 VDC, 9.2 W of consumption. Dimensions (mm) of the mechanical casing metal are 173 x 122 x 35. (W x L x D). DIN-Rail Mounting Installation. Operating Environment Temperature: -25 to +75 °C. Storage Range: -30 to +75 °C. 10–90% relative humidity, non-condensing.

Ordering Information:

DNM-848VI-10V CR

8-channel 10 VDC Voltage Attenuator with channel-to-channel isolation (Metal) (RoHS)
