EAC-5100-OOB

NVIDIA® Jetson AGX Orin™ Embedded AI Computing System



Key Features:

  • Advanced NVIDIA® Jetson AGX Orin™ platform delivers up to 275 TOPS AI performance
  • Latest NVIDIA Ampere™ architecture, featuring with 2048 NVIDIA® CUDA® cores and 64 Tensor cores
  • 1 PCIe Gen 3 x8 expansion slot supports optional multiple 10GigE/PoE LAN/USB connections
  • 2 Isolated CAN Bus support Flexible Data-rate, 2 COM RS-232/422/485
  • 6 GigE LAN with 4 PoE+, 5 USB 3.1, 1 Digital Display supports 4K60
  • Support disaster recovery by Out-of-Band management
  • DC 9V to 50V wide range power input, Ignition Power Control

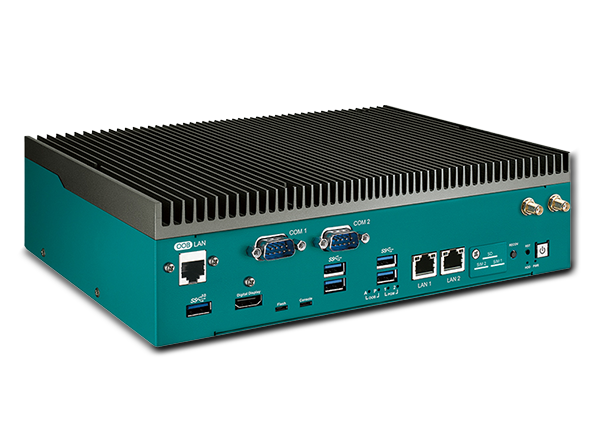

Backplane Systems Technology is pleased to present VECOW’s EAC-5100-OOB. The VECOW EAC-5100-OOB is a cutting-edge embedded AI computing system designed for advanced edge AI applications, powered by NVIDIA® Jetson AGX Orin™ technology. Delivering up to 275 TOPS of AI performance, it features the latest NVIDIA Ampere™ architecture with 2048 CUDA® cores and 64 Tensor cores, providing a significant performance boost for real-time AI processing. This system supports a wide range of power inputs from 9V to 50V, making it ideal for industrial, automotive, and mobile applications.

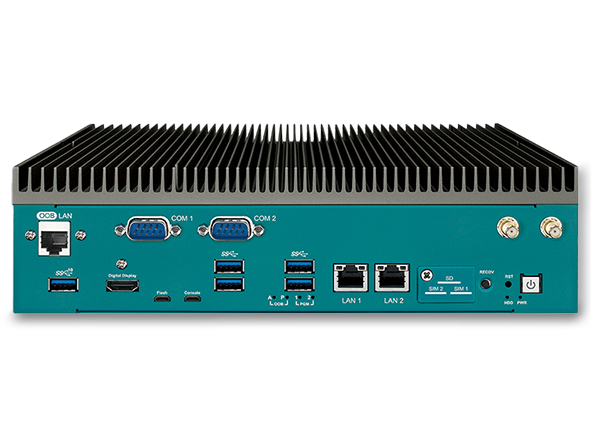

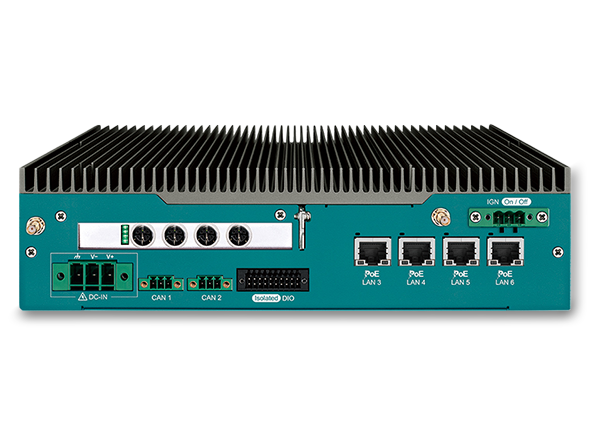

The EAC-5100-OOB offers extensive connectivity, including six GigE LAN ports, four with PoE+ support, five USB 3.1 ports, and one digital display supporting 4K60 resolution. For flexible integration, it features a PCIe Gen 3 x8 slot, isolated CAN bus, RS-232/422/485 ports, and support for automotive cameras via FAKRA-Z connectors. Its rugged design ensures reliable performance in harsh environments, operating in temperatures from -25°C to 70°C and meeting military-grade standards for shock and vibration resistance.

With built-in Out-of-Band (OOB) management, the EAC-5100-OOB enables remote disaster recovery, allowing operators to manage and reboot devices even during system failures. This makes it a reliable and versatile solution for edge AI deployments.
