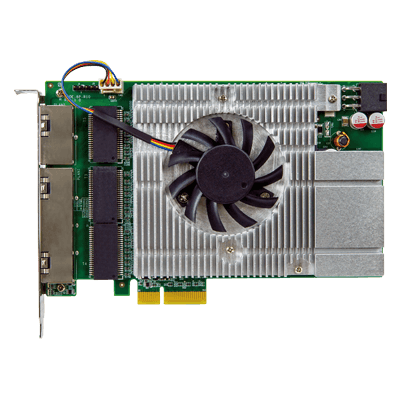

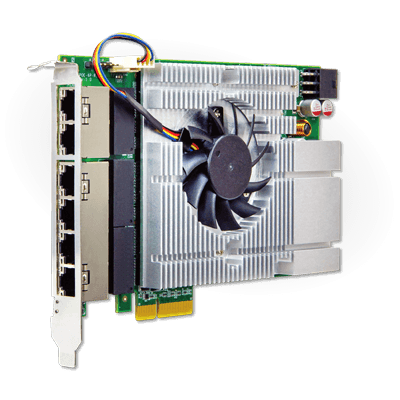

GPOE-6P

The GPOE-6P comes with 6 PoE ports with one slot capacity and only 21.59mm wide. It supports a total of 180 Watts power budget with a maximum of 60 Watts per port and has an individual cooler heatsink with a cooling fan. A GPOE Management Software Tools is provided to control each PoE port.

● Provide 6 x10/100/1000Base-T(X) PoE (P.S.E.) ports
● Total 180 Watts power budget with maximum 90 Watts per port
● PoE power sourced from 12~24VDC of ATX power
● Each LAN port supports both PoE and Non-PoE connections (Auto Detect & Classification)
● Supports SW/RDK (IEI GPOE Management Software Tools)
● Compatible with x4, x8 and x16 PCIe slots
● IEEE 802.3at/bt PoE compliant

GPOE-6P-R10: PCI Express Power over ethernet card, 6-port 1000 Base(T), 802.3at/bt compliant, RoHS
