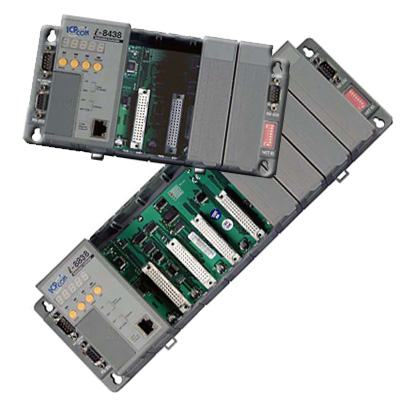

I-8438-G / I-8838-G

SKU 2875

Matlab embedded controller , which is based on real-time workshop and real-time workshop embedded coder, presents a real-time embedded control solution for I-8438-G/8838-G equipped with various I/O modules. There are more than 20 I/O-bridge and system-level Simulink function blocksets built for customized application.

Software Features

  • MATLAB 6.5 or 6.1
  • Simulink 4.1 or 5.0
  • Real-Time Workshop 4.1 or 5.0
  • Real-Time Workshop Embedded Coder 2.0 or 3.0
  • Stateflow and Stateflow Coder 4.1 or 5.0(opt.)

Hardware Features

  • CPU:80186, 80MHz
  • SRAM: 512K bytes
  • Flash ROM: 512K bytes
  • EEPROM: 2K bytes
  • Built-in Watchdog Timer
  • Real Time Clock (for I-8438-G/8838-G)
  • COM0: Internal use
  • COM1: RS-232/Program download port
  • COM2:10 BaseT NE2000 compatible
  • COM3: RS-232/485
  • COM4: RS-232
  • S-MMI: Small Man Machine Interface
  • I/O Expansion Slot: 4-slot for I-8438-G / 8-slot for I-8838-G
  • Power Supply: 20W Unregulated +10Vdc to +30Vdc

I-8438-G: 80M CPU, 512K Flash,512K SRAM,4 Slot, 10M Ethernet

I-8838-G: 80M CPU, 512K Flash,512K SRAM,8 Slot, 10M Ethernet
