IBQ800

SKU 4940

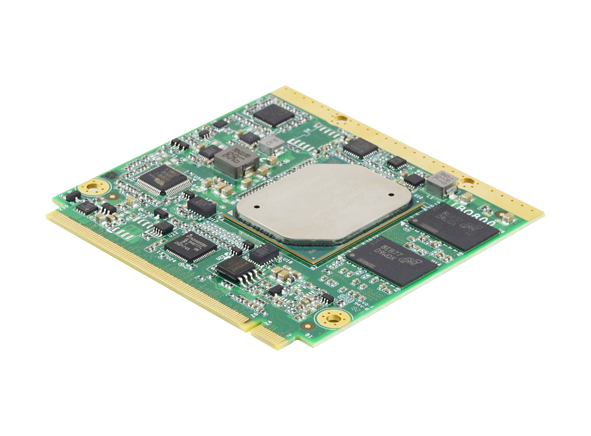

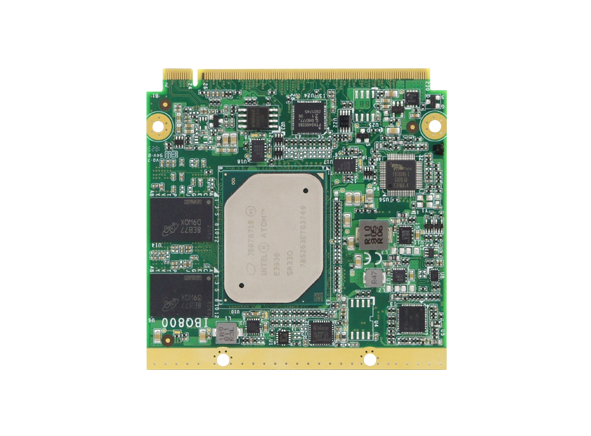

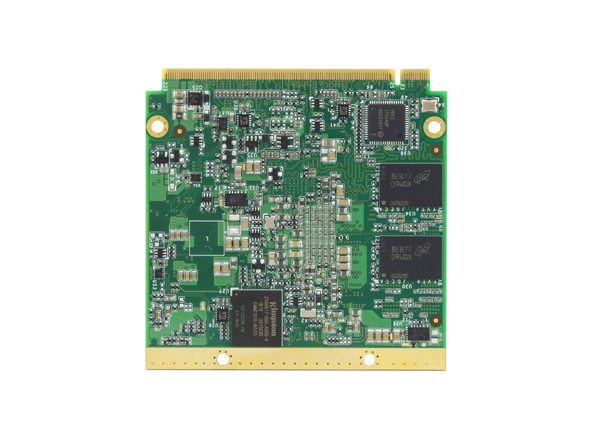

The IBQ800 is a highly integrated low-power CPU module with an Intel® Atom™ processor, produced by iBASE Technology and featuring:

  • Onboard Intel® Atom™ x5-E3930 @1.8GHz or x7-E3950 @2.0GHz [i-Temp Support]
  • Onboard LPDDR4 Memory
  • 1x Intel® I210IT PCI-E Gigabit LAN
  • Supports TPM (2.0), eMMC5.0 (Optional)
  • Wide-Range -40°C to 85°C Operating Temperature

Please see the product PDF for more in-depth product specifications and do not hesitate to contact us if you have any questions.

  • Onboard Intel® Atom™ x5-E3930 @1.8GHz or x7-E3950 @2.0GHz [i-Temp Support]
  • Onboard LPDDR4 Memory
  • 1x Intel® I210IT PCI-E Gigabit LAN
  • Supports TPM (2.0), eMMC5.0 (Optional)
  • Wide-Range -40°C to 85°C Operating Temperature

IBQ800-X7LVE8G: Qseven CPU Module with Intel® Atom™ E3950 (2.0GHz), eMMC32GB, 8GB Memory on Board, LVDS Support

IBQ800-X5LVE8G: Qseven CPU Module with Intel® Atom™ E3930 (1.8GHz), eMMC32GB, 8GB Memory on Board, LVDS Support

IBQ800-X5LVE: Qseven CPU Module with Intel® Atom™ E3930 (1.8GHz), eMMC32GB, 4GB Memory on Board, LVDS Support

IBQ800-X5: Qseven CPU Module with Intel® Atom™ E3930 (1.8GHz), 4GB Memory on Board, eDP Support

IP416: Qseven (R2.1) Carrier Board
