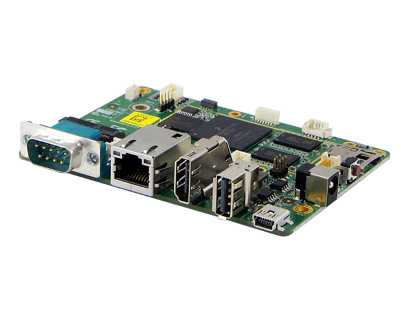

IBR115

SKU 4890

Low-Power 2.5″ SBC with NXP ARM® Cortex-A9 i.MX 6Dual-Lite 1GHz Processor

Please see Product PDF for further details and specifications.

  • NXP Cortex™-A9, i.MX 6Dual-Lite 1GHz processor
  • Supports HDMI and single LVDS interface
  • Supports 1GB DDR3, 4GB eMMC and Micro SD socket for expansion
  • Embedded I/O as COM, GPIO, USB, USB-OTG, audio and Ethernet
  • M.2 Key-E (2230) for wireless connectivity
  • OpenGL ES 2.0 for 3D BitBlt for 2D and OpenVG1.1
  • IBR115: 5” ARM-based SBC, NXP Cortex™-A9, i.MX 6Dual-Lite 1GHz, 1GB DDR, 4GB eMMC, Single LVDS, HDMI, RS-234/422/485, USB, M.2 Key E(2230)
  • Heatsink: HSIBR115-A
  • Cable: LCD403, Panel cable for 7”
    • LCD404, Panel cable for 15”
    • IVT-76, Backlight for 7” and 15” panel
    • PK1-135, GPIO
    • PK1-133, COM port
    • USB-81, USB OTG cable
    • PK1-100A, Debug cable
  • RF module: WNFT-234ACN, WiFi/BT M.2 module
  • Display: AM-1024600ATMQW-A0H:
    • 7” Capacitive LVDS TFT LCD, 1024 x 600
  • M150GNN2 R1:
    • 15” Capacitive LVDS TFT LCD, 1024 x 768
