- With NXP Cortex™-A53/Cortex™-M4, i.MX 8M Dual/Quad 1.5GHz Processor
- Supports 4K HDMI, dual channel FHD LVDS
- Supports 3GB LPDDR4, 8/16/32/64GB eMMC and SD socket

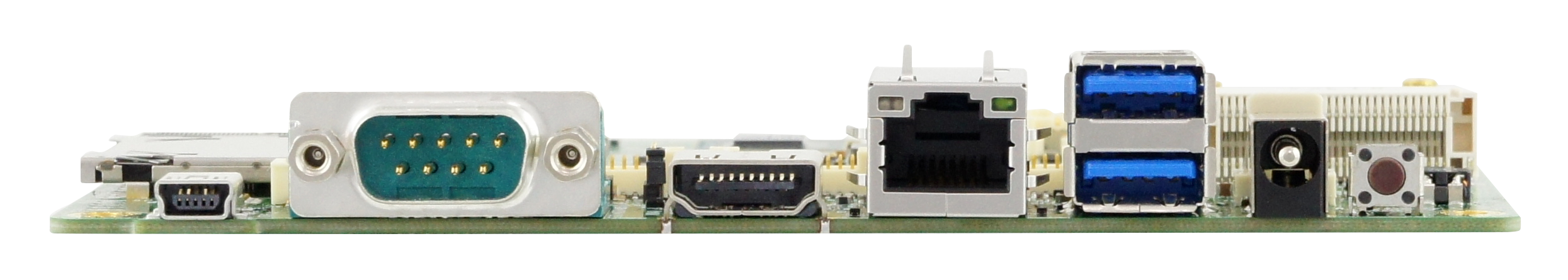

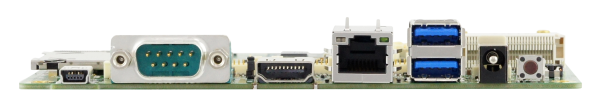

- Supports embedded I/O for COM, GPIO, USB3.0, USB-OTG, Audio and Ethernet
- Supports M.2 Key-E (2230) and mini-PCI-E with SIM socket for wireless/4G/LTE connectivity
IBR210

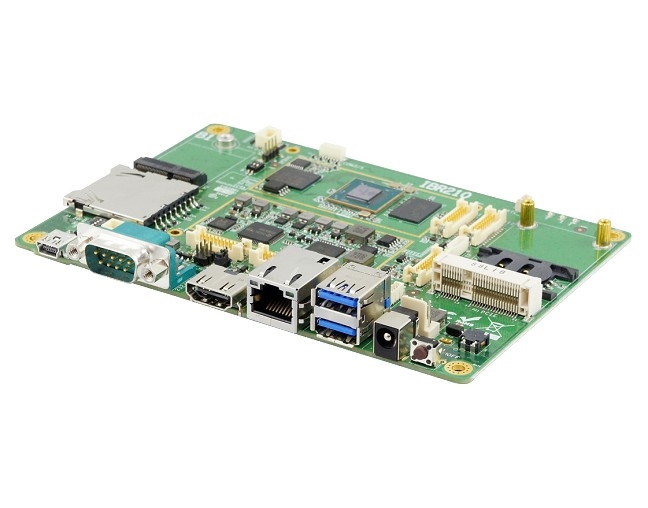

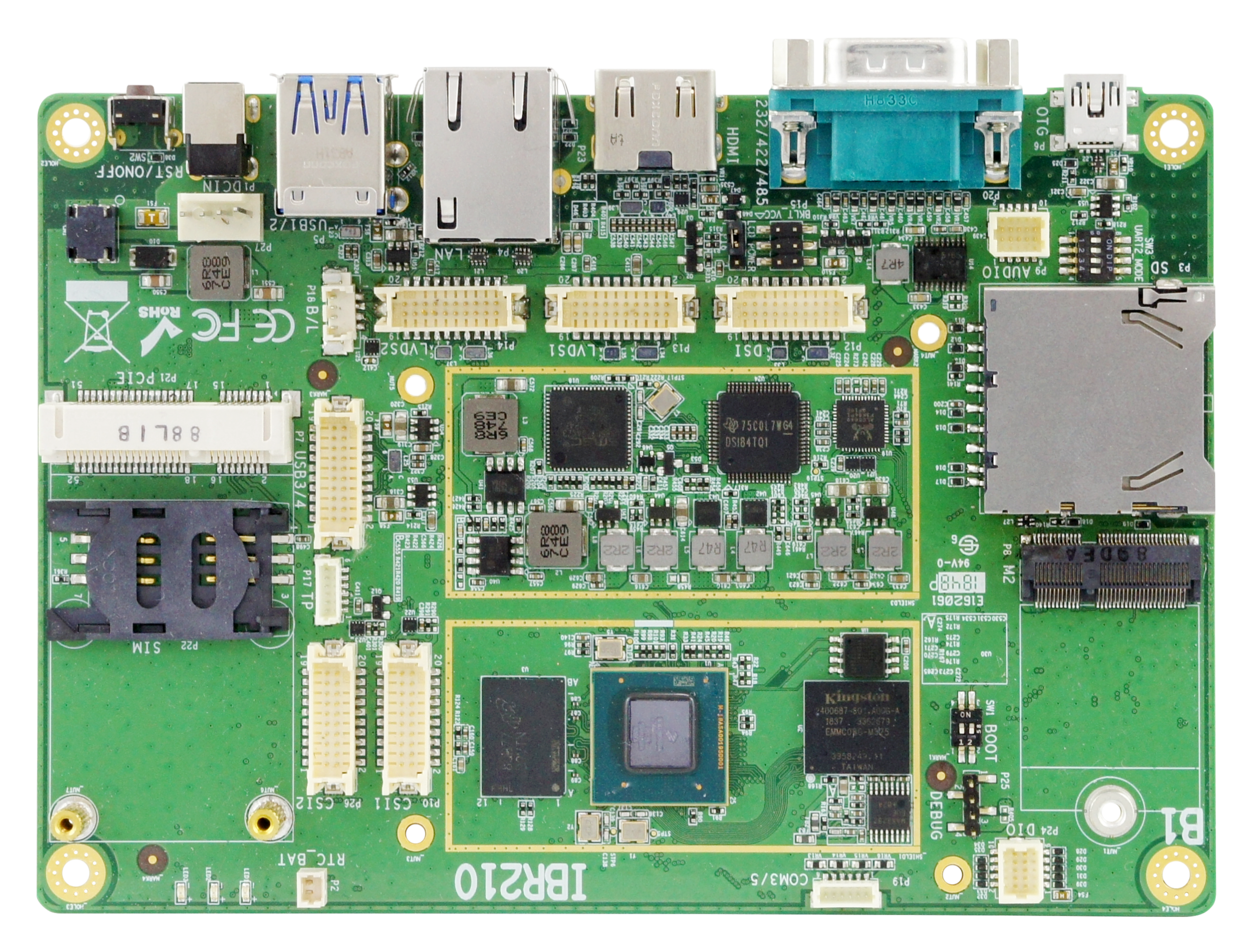

The IBR210 3.5-inch single board computer features NXP’s dual or quad core Arm Cortex-A53 i.MX 8 processors in 1.3GHz and 1.5GHz CPU frequencies. The i.MX 8 application processors are built with advance media processing, allowing IBR210 to deliver 4K HDMI content with HDR and run a dual-channel FHD LVDS display. The board is targeted at multiple signage displays at airports, train and bus stations, and shopping malls, as well as HMI passenger information applications.
IBR210-D308: 3.5” SBC, i.MX 8M Dual 1.5GHz, 3GB LPDDR4, 8GB MLC eMMC
IBR210-D308I: Industrial Grade 3.5” SBC, i.MX 8M Dual 1.3GHz, 3GB LPDDR4, 8GB MLC eMMC
IBR210-Q316: 3.5” SBC, i.MX 8M Quad 1.5GHz, 3GB LPDDR4, 16GB TLC eMMC
IBR210-Q316I: Industrial Grade 3.5” SBC, i.MX 8M Quad 1.3GHz, 3GB LPDDR4, 16GB TLC eMMC
