- Intel® 22nm Atom™ or Celeron® on-board SoC supported
- Intel® HD Graphics Gen7 integrates high-performance graphics and media processing
- Supports 1333/1066 MHz DDR3L (1.35V) memory, up to 8GB
- Supports one analog CRT, one 24-bit dual-channel LVDS, and one DDI
- Optional soldered down 4GB SSD
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery

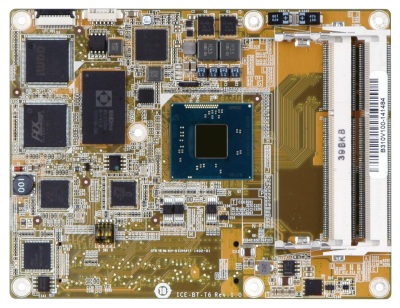

ICE-BT-T6
The ICE-BT-T6 COM Express Type 6 module provides the main processing chips and is connected to a compatible COM Express baseboard. The ICE-BT-T6 is preinstalled with 4th generation Intel® Atom™ or Celeron® processor. The COM Express standard allows the COM Express baseboard to be designed, while leaving the choice of processor till the later stages of design. The ICE-BT-T6 provides a low power option with the full range of modern I/O options. The ICE-BT-T6 embedded module is designed for flexible integration by system developers into customized platform devices.
ICE-BT-T6-J19001-R10: COM Express Basic Type 6 module with Intel® Celeron® quadcore processor J1900 (10W), VGA, DDI, LVDS, GbE, SATA,
USB 3.1 Gen 1 (5Gb/s) and HD Audio, RoHS
ICE-BT-T6-N29301-R10: COM Express Basic Type 6 module with Intel® Celeron® quadcore processor N2930 (7.5W), VGA, DDI, LVDS, GbE, SATA,
USB 3.1 Gen 1 (5Gb/s) and HD Audio, RoHS (EOL 30/6/2020)
ICE-BT-T6-N28071-R10: COM Express Basic Type 6 module with Intel® Celeron® dualcore processor N2807 (4.3W), VGA, DDI, LVDS, GbE, SATA,
USB 3.1 Gen 1 (5Gb/s) and HD Audio, RoHS (EOL 30/6/2020)
ICE-BT-T6-E38XX1-R10: COM Express Basic Type 6 module with Intel® Atom™
processor E38XX, VGA, DDI, LVDS, USB 3.1 Gen 1 (5Gb/s),
GbE, SATA and HD Audio, RoHS (by request MOQ: 100pcs/lot)
ICE-DB-T6R-R11: Baseboard for COM Express Type 6 Module COM.0 Rev. 2.1,
supports PICMG EAPI R1.0
19100-000186-00-RS: Heat spreader for ICE-BT-T6
