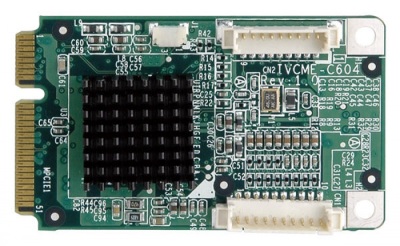

IVCME-C604

SKU 2457

PCIe Mini video/ audio capture card with 4-channel video/audio input, total 120fps @ D1 for 4 channels (NTSC)

Features

• External GPIO relay board with eight channels (4 in / 4 out), included I/O kit & cable
• PCI Express x1 interface with PCIe-to-PCI bridge  onboard
• Four video channels with 120 fps @ D1 per channel
• NTSC/PAL/SECAM auto sensing
• Support Multiple Card (maximum 32 ports video input )
• SDK with Windows® drivers
• Applications: Video surveillance, security, public transportations, police and government

 Ordering Information

 IVCE-8784-R10:  PCI Express video capture card with four video input channels, otal 120 fps@720×480(NTSC)

 VIOCARD-GPIORS-RS-R10:  8 GPIO channels (4 digital inputs and 4 relay outputs)

  • Single card 4-channel composite video (NTSC/PAL) solution
  • PCIe Mini card interface supported
  • Compatible with Linux, Windows® XP and Windows® 7 (32-bit and 64-bit)
  • Total 120fps @ D1 for 4 channels (NTSC)
  • External GPIO daughter board with 4 inputs and 4 outputs (optional)
  • SDK available for customer to create customized applications

IVCME-C604-R10: PCIe Mini video/audio capture card with 4-channel video/audio input, total 120fps @ D1 for 4 channels (NTSC)

VIOCARD-GPIO-RS-R10: 8 GPIO channels (4 digital inputs and 4 relay outputs)

32031-000100-100-RS: GPIO card to IVCME capture card connection cable

  • IEI Integration
