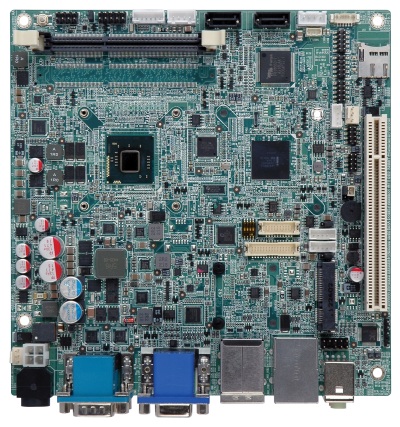

KINO-CV-D25501/N26001

SKU 4213

The KINO-CV-D25501/N26001 is a Mini-ITX SBC with a Intel® Atom™ processor D2550 or N2600. The KINO-CV-D25501/N26001 is designed for fanless operation. The low power CPUs don’t require active cooling and stay within specified heat range using the included heatsink.

Storage on the board is handled by a SATA 3Gb/s port for connecting a hard drive, optical drive or SSD. The PCIe Mini slot allows an mSATA card to be installed. A bootable microSD card can be installed into the on-board microSD slot.

See the Product PDF Datasheet for Full Specifications.

  • Mini-ITX form factor with Intel® D2550/N2600 dual-core processor supports DDR3/DDR3L (1.35V) memory
  • Wide range 9V ~ 28V DC input
  • Flexible VGA, dual LVDS and HDMI with dual-display support
  • Complete I/O: six USB 2.0, two USB 3.0, two SATA 3Gb/s, six COM and audio mSATA SSD capable
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery

KINO-CV-D25501-R10: Mini-ITX SBC with Intel® Atom™ D2550 1.86GHz, DDR3, VGA/HDMI/dual LVDS, dual GbE, USB 3.0, 9V ~ 28V, SATA 3Gb/s, Audio, RoHS

KINO-CV-N26001-R10: Mini-ITX SBC with Intel® Atom™ N2600 1.6GHz, DDR3, VGA/HDMI/dual LVDS, dual GbE, USB 3.0, 9V ~ 28V, SATA 3Gb/s, Audio, RoHS

KINO-CV-N28001-R10: Mini-ITX SBC with Intel® Atom™ N2800 1.86GHz, DDR3, VGA/HDMI/dual LVDS, dual GbE, USB 3.0, 9V ~ 28V, SATA 3Gb/s, Audio, RoHS (by project support, MOQ 100pcs / lot)
