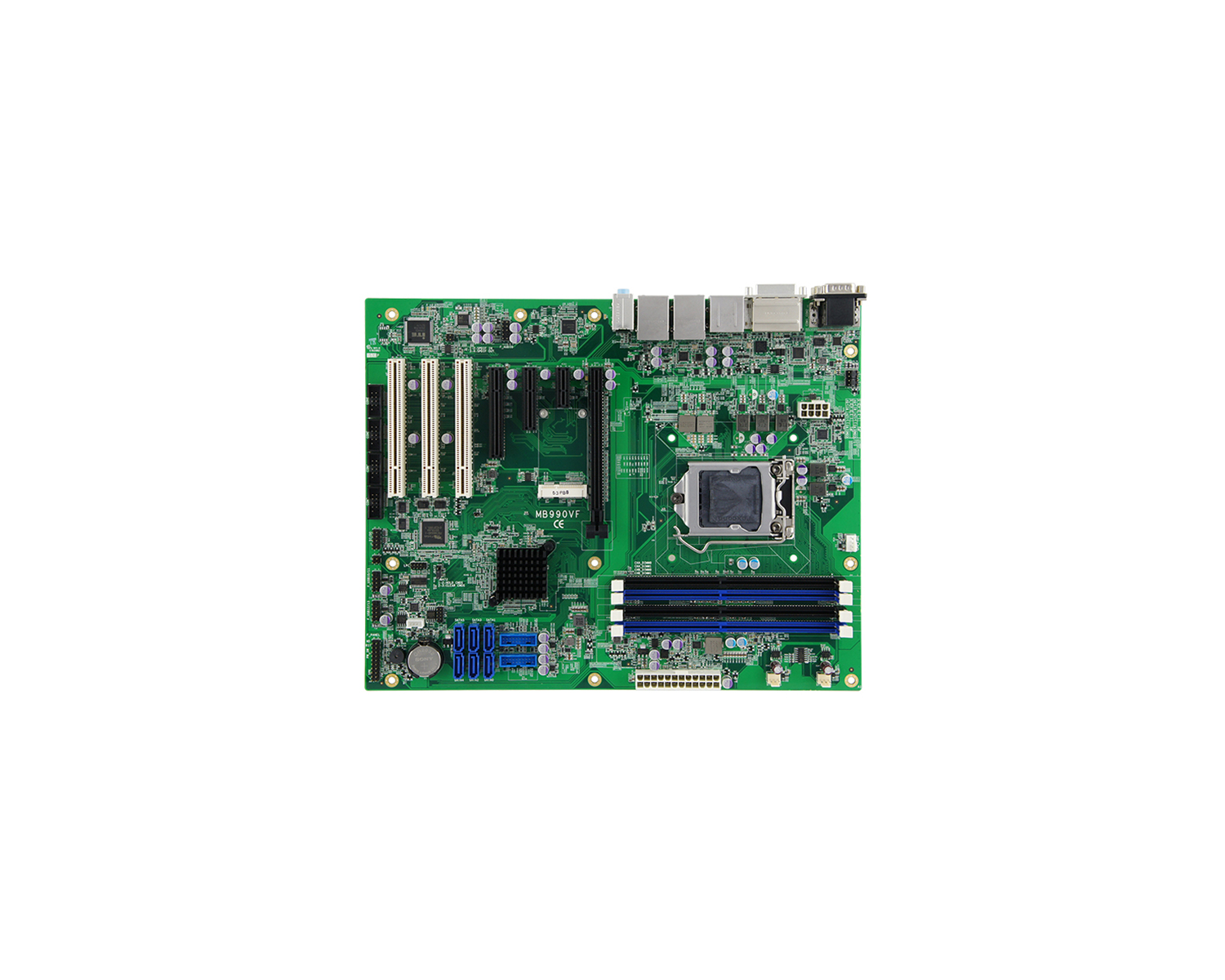

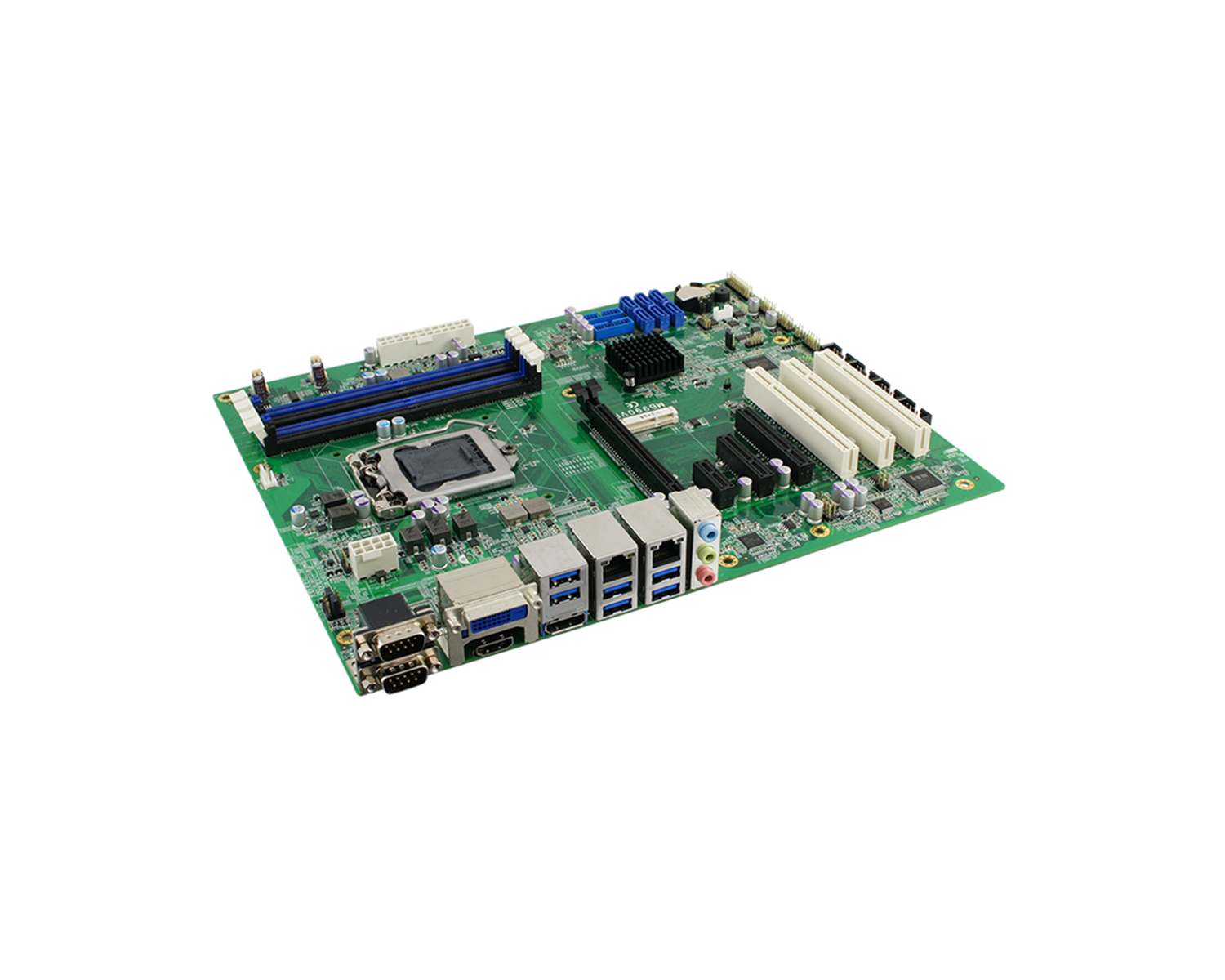

MB990

an ATX motherboard that supports Intel’s newest 7th/6th Gen Intel® Core™ processors. It features an LGA1151 socket for 7th/6th Gen Intel® Core™, Pentium, or Celeron processors based on the code-named “Skylake-S” micro-architecture.

Key Features:

  • 7th/6th Gen Intel® Core™ i7/i5/i3 / Pentium® / Celeron® QC/DC Processors, up to 4.0GHz
  • 4x DDR4 DIMM, Max. 64GB, ECC Compatible
  • Intel® Processor Integrated Graphics Supports DVI-D, HDMI, and DisplayPort
  • Dual Intel® Gigabit LAN
  • 4x USB 2.0, 10x USB 3.0, 6x COM, 6x SATA III
  • 1x PCI-E(x16), 1x PCI-E(x8) [(x4) Link], 1x PCI-E(x4) [(x1) Link], 1x PCI-E(x1), 3x PCI
  • 1x Mini PCI-E
  • Watchdog Timer, Digital I/O, iAMT(11.0), TPM(1.2), vPro, iSMART
MB990VFS-A LGA1151 Q170 ATX motherboard w/ DVI-D, HDMI, DisplayPort, dual Gigabit LAN, RAID, iAMT (11.0), TPM (1.2), vPro, iSMART
