MI988

SKU 4877

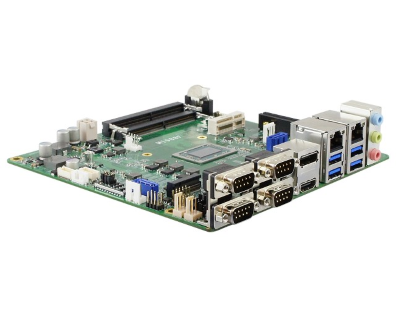

The MI988 Mini-ITX motherboard is based on the latest AMD Ryzen™ Embedded V1000 processor family. With the 14nm architecture, the AMD Ryzen™ Embedded V1000 processor combines the processing power of the advanced AMD “Zen” CPU and “Vega” graphics architecture in a single chip. Thanks to the high processing and graphics capabilities of the AMD Ryzen™ mobile processors, the MI988 delivers brilliant graphics and a stunning level of video performance. The MI988 enables power savings and scalability for high-performance devices used in mission-critical markets in the field of machine vision, medical imaging and gaming.

  • AMD Ryzen™ Embedded V1000 on board
  • 2x DDR4 SO-DIMM, Max. 32GB
  • 2x PCI-E Gigabit LAN
  • 1x HDMI(2.0a), 1x DisplayPort (1.4), 1x eDP or 1x 24-bit dual channel LVDS
  • 2x USB3.1(10Gbps), 2x USB3.1(5Gpbs), 2x SATAIII, 6x COM
  • 1x PCI-E(x8), 1x Mini PCI-E socket, 1x M.2 (M-key)

MI988F-1807: AMD Ryzen™ V1807B QC APU (3.35GHz/3.8GHz) on board Mini-ITX motherboard, with HDMI (2.0), DP, eDP or LVDS, dual Gigabit LAN, iSAMRT,  +12V~+24V DC-in

MI988F-1756: AMD Ryzen™ V1756B QC APU (3.25GHz/3.6GHz) on board Mini-ITX motherboard, with HDMI (2.0), DP, eDP or LVDS, dual Gigabit LAN, iSAMRT, +12V~+24V DC-in
