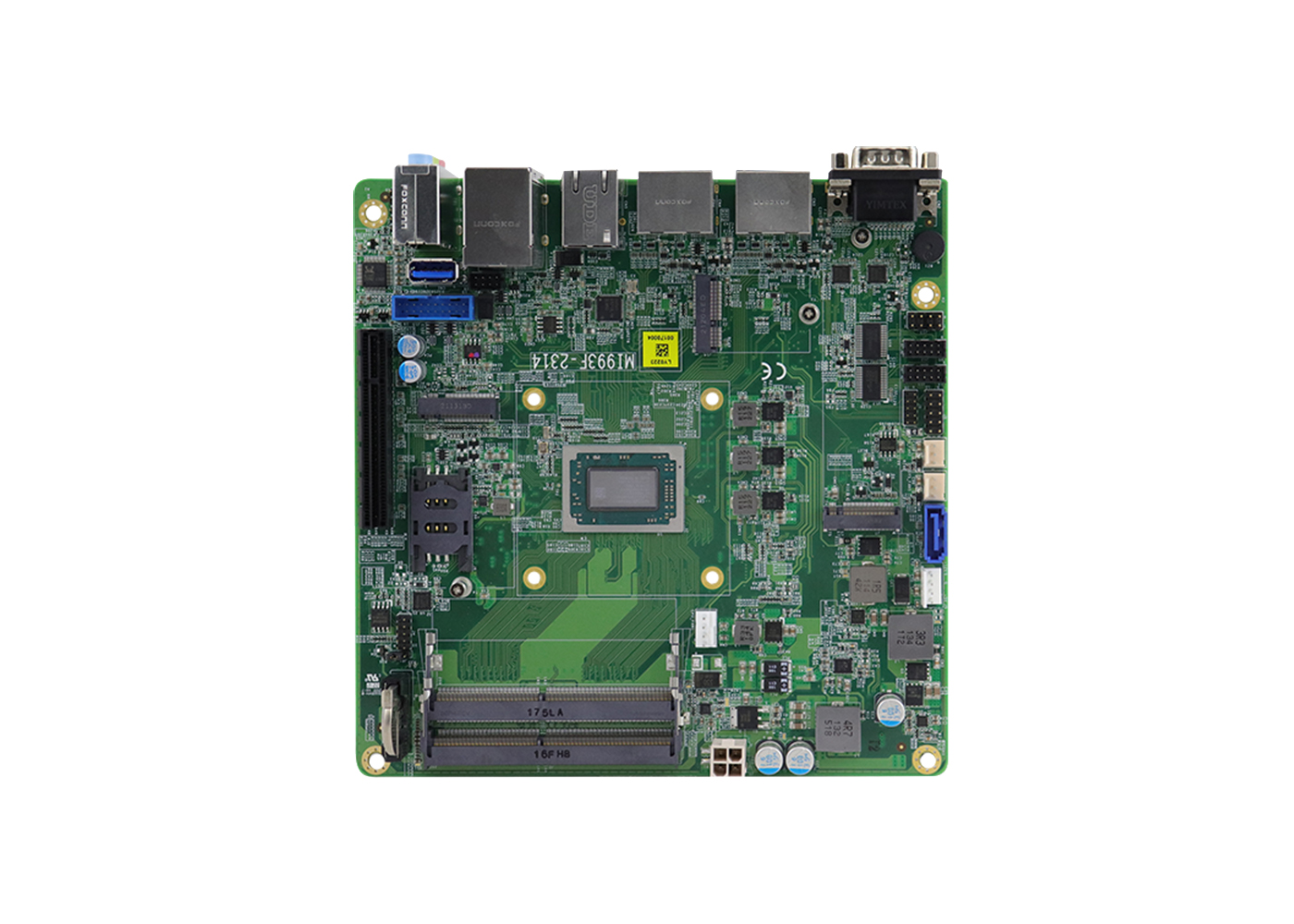

MI993 - Image 2

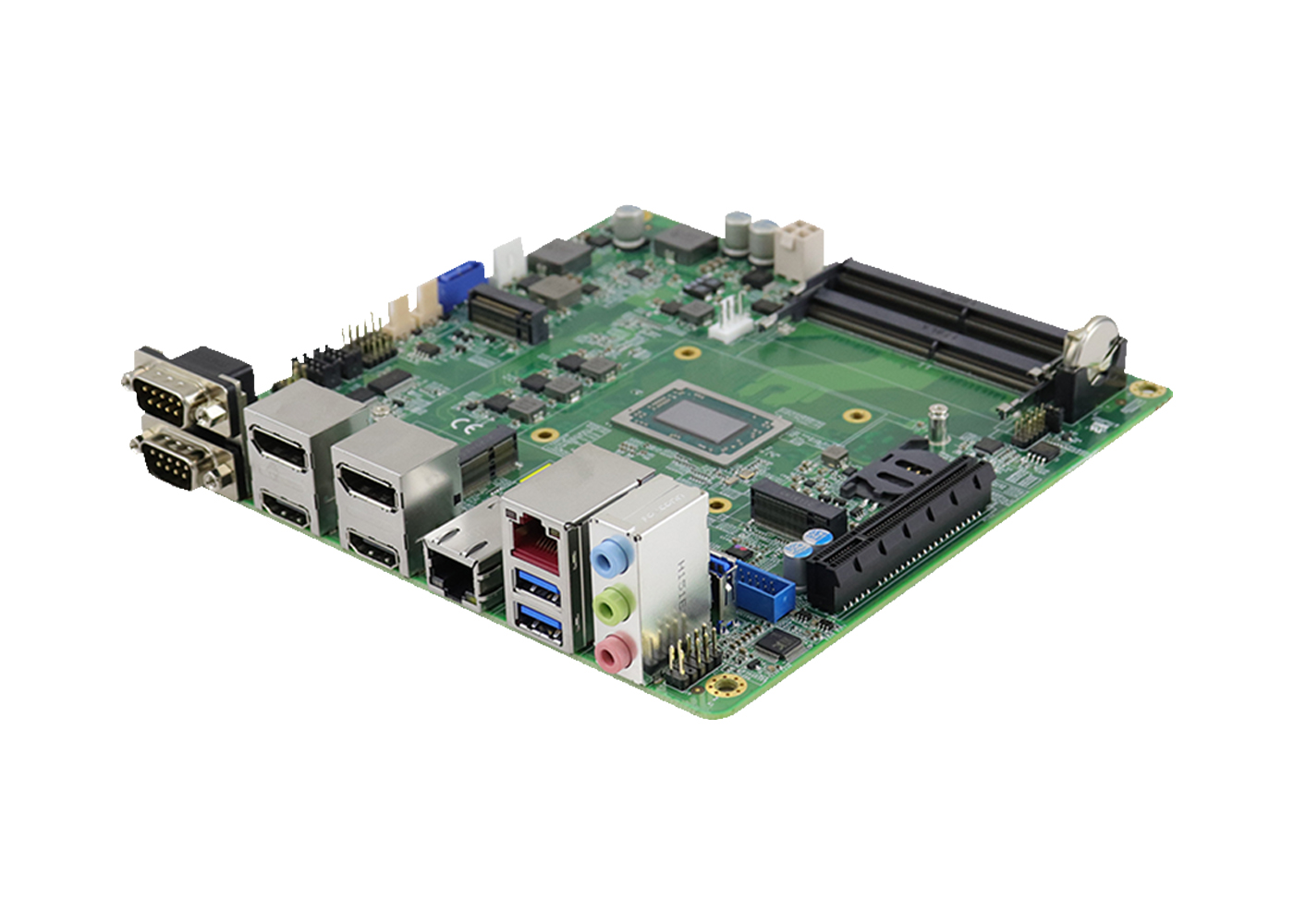

MI993

an AMD Ryzen™ Embedded R2000 Series Mini-ITX Motherboard. It has immense memory capacity with a 2x DDR4-2666/2400 SO-DIMM socket.

Key Features:

  • AMD Ryzen™ Embedded R2000 series APU Onboard
  • 2x DDR4 SO-DIMM Sockets, Max. 32GB
  • Dual Intel® 2.5G LAN
  • 2x HDMI + 2x DisplayPort
  • 5x USB 3.1, 2x USB 2.0, 4x COM, 1x SATA III
  • 1x PCI-E (x8), 3x M.2 (B-key, E-key and M-Key)
  • Watchdog Timer, Digital I/O, TPM (2.0)
MI993F-2314 AMD Ryzen™ R2314 (2.1GHz~3.5GHz) APU onboard, 2x HDMI, 2x DisplayPort, 1x SATA, 2x 2.5G LAN, TPM (2.0), CPU cooler on board
MI993F-2312 AMD Ryzen™ R2312 (2.7GHz~3.5GHz) APU onboard, 2x HDMI, 1x DisplayPort, 1x SATA, 1x 2.5G LAN, TPM (2.0), CPU cooler on board
