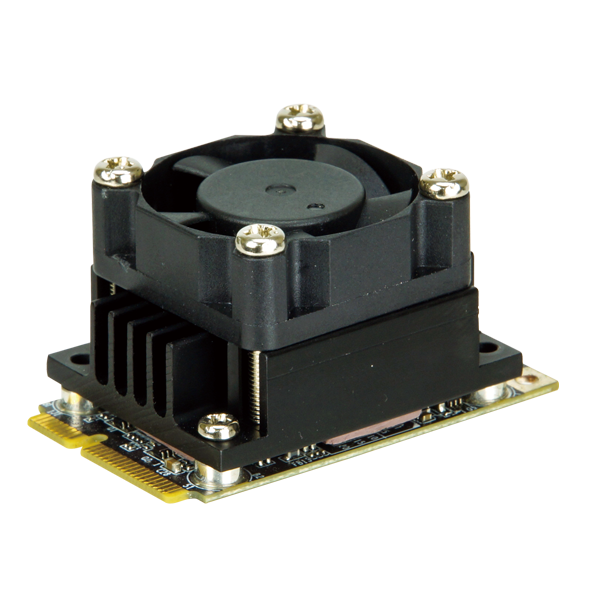

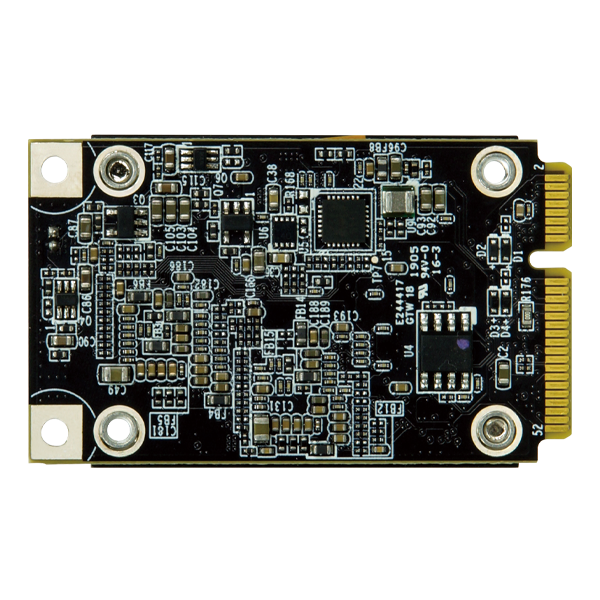

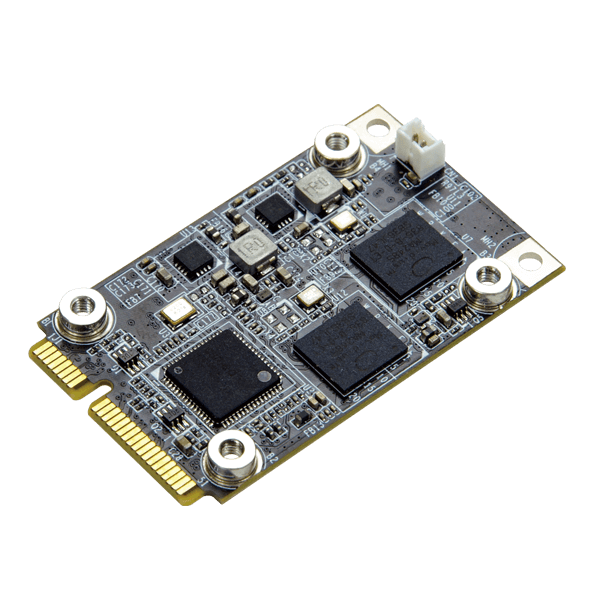

Mustang-MPCIE-MX2

The Mustang-MPCIE-MX2 card included two Intel® Movidius™ Myriad™ X VPU, providing an flexible AI inference solution for compact size and embedded systems.

VPU is short for vision processing unit. It can run AI faster, and is well suited for low power consumption applications such as surveillance, retail, transportation. With the advantage of power efficiency and high performance to dedicate DNN topologies, it is perfect to be implemented in AI edge computing device to reduce total power usage, providing longer duty time for the rechargeable edge computing equipment.

  • miniPCIe form factor (30 x 50 mm)

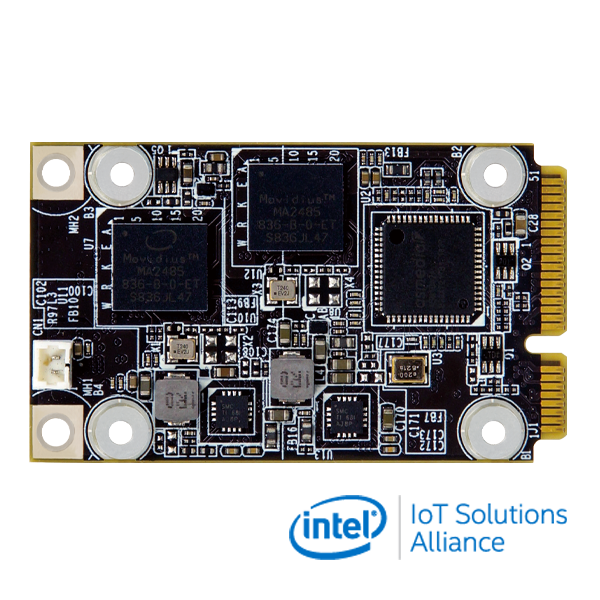

  • 2 x Intel® Movidius™ Myriad™ X VPU MA2485
  • Power efficiency, approximate 7.5W
  • Operating Temperature -20°C~60°C
  • Powered by Intel’s OpenVINO™ toolkit

Mustang-MPCIE-MX2-R10: Deep learning inference accelerating miniPCIe card with 2 x Intel® Movidius™ Myriad™ X MA2485 VPU, miniPCIe interface 30mmx50mm, RoHS

  • IEI Integration
