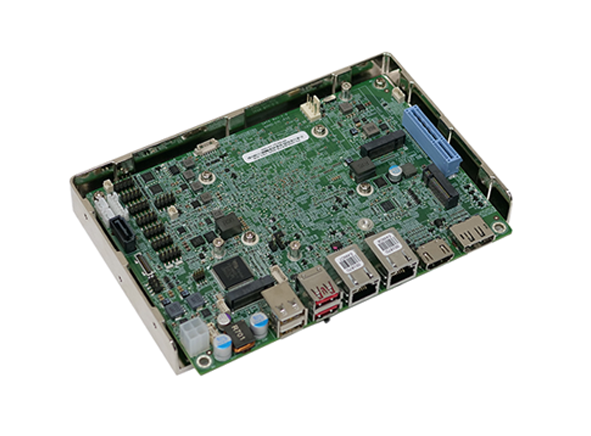

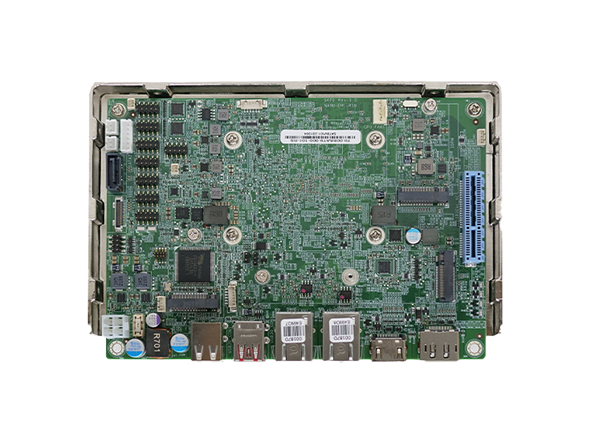

Backplane Systems Technology is proud to introduce iEi’s NANO-EHL. iEi’s NANO-EHL is an exciting technological addition to the EPIC single-board computer (SBC) landscape, providing a robust platform that supports the latest Intel® Celeron® on-board SoC, designed specifically for industrial and embedded applications.

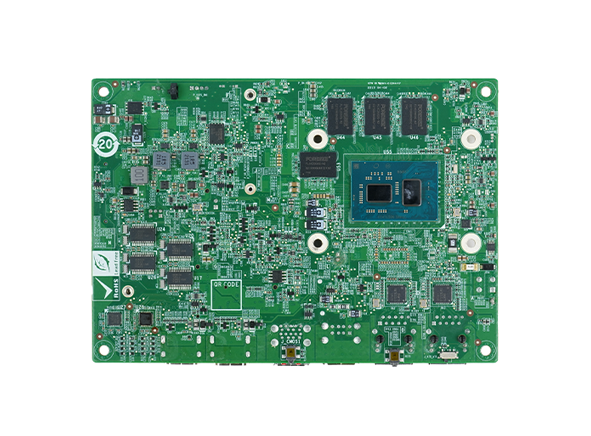

With a powerful low-power Intel® Elkhart Lake Celeron® J6412 CPU, the NANO-EHL delivers high performance with its 4 cores and 4 threads, a base frequency of 2.00GHz, and a turbo frequency of up to 2.60GHz. The 10nm architecture ensures energy efficiency, making it suitable for a wide range of applications.
What sets the NANO-EHL apart is its diverse connectivity and expansion capabilities. It supports dual Intel® I225V 2.5GbE Ethernet controllers, offering high-speed network transmission. Additionally, the board boasts triple independent displays via DP, HDMI, and iDPM, catering to various visual requirements.
The expansion features of the NANO-EHL include one PCIe Gen3 x4, one M.2 A key, and one M.2 B Key, alongside a unique PCIe x4 slot reserved for riser cards. This slot enables further PCIe expansion, ensuring flexibility and scalability.

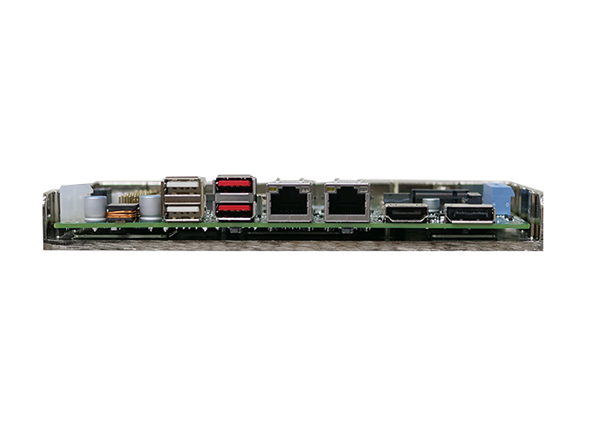

The board’s I/O support is comprehensive, with two USB 3.2 Gen2, four USB 2.0, four RS-232, and two RS-232/422/485 ports, providing ample peripheral connectivity options. The IEI-specific iDPM Interface adds further versatility, allowing users to tailor their display interface requirements.
In conclusion, the iEi NANO-EHL is a feature-rich SBC that marks a significant advancement in embedded computing. With its high-performance Intel® Celeron® CPU, extensive connectivity, and unique expansion options, it represents a versatile and future-ready solution for a wide array of industrial and embedded applications. Its compliance with RoHS ensures that it meets the highest standards of environmental responsibility. Whether for manufacturing, automation, or IoT, the NANO-EHL is poised to become a key player in the industry.
