- Intel® Celeron® Bay Trail J1900 Quad-Core Processor
- 3x PCI Slots or 1x PCIe x4 + 2x PCI Slots
- Rugged, -25°C to 70°C Fanless Operation
- Dual Independent Display via DVI-I Connector
- 2x SATA Ports for 2.5″ HDD/SSD
- 2x RS-232/422/485 + 2x RS-232
- Optional Isolated 8-CH DI and 8-CH DO
- 8 to 25 VDC Wide-Range DC Input

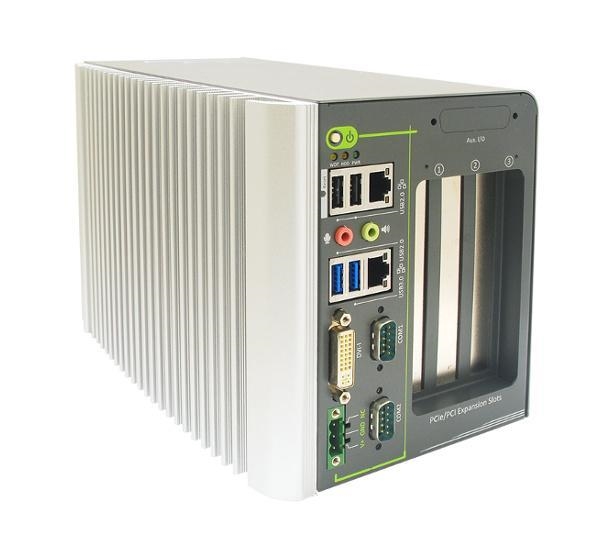

The Nuvo-2400 is a fanless shoe-box IPC with 3 PCI/PCIe expansion slots. The expansion slots are provides for add-on cards, such as COM port cards and frame grabber. The Nuvo-2430 model provides 3 PCI slots, while the Nuvo-2421 model provides 1x PCIe x4 slot with 1-lane Gen2 signal and 2x PCI slots.
The convenient design of this series facilitates the integration of both a remote on/off switch and the system status indicators. Little effort is needed to power it on/off and to know the status of the Nuvo-2400, possible via an external control panel. Furthermore, 8-channel digital input and 8-channel digital outputs are provided as an option of Nuvo-2400. All inputs and outputs are isolated and 24VDC-rated. This makes the DI/O compatible with many industrial sensors, indicators, coils and actuators.
Powered by an Intel® Celeron® Bay Trail J1900 quad-core processor, the Nuvo-2400 shows outstanding computing power and is even more power efficient compared to its predecessors. The Nuvo-2400 supports dual independent displays, dual 2.5″ SATA bays and dual gigabit LAN ports with teaming and PXE. These features, together with the 3 expansion slots, maximise the flexibility of the Nuvo-2400 for even more applications. Compact, expandable, yet stable.
The Nuvo-2400 has an ingenious mechanical design which gives consideration to small dimension, superior heat dissipation, flexible wall-mounting, or DIN-Rail mounting, and intuitive pattern of use. Furthermore, its compact chassis can accommodate two 2.5″ SATA hard drives to expand your storage capacity.
