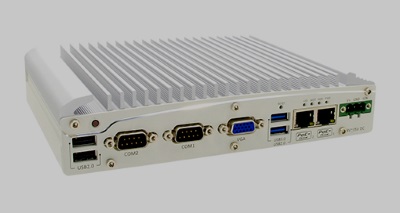

Nuvo-2510VTC

SKU 4469

The Nuvo-2510VTC is an in-vehicle fanless computer by Neousys Technology, featuring:

  • Intel® Atom™ Bay Trail E3845 Quad-Core Processor
  • Dual mPCIe and USIM Sockets for 3G, LTE, WLAN, BT, or GPS Modules
  • Dual Storage with 1x mSATA and 1x SATA
  • Intelligent Ignition Power Control
  • 1x CAN Bus Port with Compliance to CAN 2.0A and CAN 2.0B
  • 8 to 35VDC Wide-Range DC Input
  • Operating Temperature from -25° to 70°C
  • Patented Damping Bracket for In-Vehicle Installation (R.O.C Patent No.M491752)

Please see the product PDF for more in-depth product specifications and do not hesitate to contact us if you have any questions.

  • Intel® Atom™ Bay Trail E3845 Quad-Core Processor
  • Dual mPCIe and USIM Sockets for 3G, LTE, WLAN, BT, or GPS Modules
  • Dual Storage with 1x mSATA and 1x SATA
  • Intelligent Ignition Power Control
  • 1x CAN Bus Port with Compliance to CAN 2.0A and CAN 2.0B
  • 8 to 35VDC Wide-Range DC Input
  • Operating Temperature from -25° to 70°C
  • Patented Damping Bracket for In-Vehicle Installation (R.O.C. Patent No. M491752)



Equipped with 2 IEEE 802.3at Gigabit Ethernet ports, the Nuvo-2510VTC is capable of directly driving 25W GigE and PoE IP cameras with a single standard CAT-5e. Along with its intelligent ignition power control and built-in CAN bus, the Nuvo-2510VTC is ideal for light-weight mobile applications, such as mobile NVR and mobile APNR.

Designed for in-vehicle applications, the Nuvo-2510VTC supports wide-range DC input, and thus can be directly powered by 12VDC or 24VDC vehicle battery. It features intelligent ignition power control with selectable on/off delay and battery voltage monitoring. The Nuvo-2510VTC also supports one built-in CAN bus port with compliance to CAN 2.0A and CAN 2.0B. The CAN bus is the foundation of many different kinds of vehicles protocols.

The Nuvo-2510VTC provides 2 PoE+ Gigabit Ethernet ports and 1 USB3.0 port for industry cameras and IP cameras. Additionally, 4 serial ports and 3 USB2.0 ports are available. For mobile applications which require data transmission, it is possible to install two 3G/4G modules with USIMs in the Nuvo-2510VTC’s 2 mini PCI Express (mPCIe) sockets. The Nuvo-2510VTC is ideal for your versatile in-vehicle applications.

As it’s equipped with an Intel® Bay Trail quad-core processor, the Nuvo-2510VTC shows much higher performance than previous Atom D2550 computers. This provides enough computing power for many light-weight applications while still within reasonable cost. With TDP (thermal design power) the on-board processor consumes only 10W, and with its wide-range DC input as well, the Nuvo-2510VTC is also good for battery-powered applications. Moreover, many value-added features such as shock-absorbing mounting, ignition power control, wide operating temperature, and wide-range DC input, are included in the product’s design. Whether for in-vehicle or general purpose applications, the Nuvo-2510VTC is really a high-value industrial fanless computer.

Nuvo-2510VTC: Intel Atom Bay Trail-I In-Vehicle Fanless Computer with 2x IEEE 802.3at PoE+ Ports

Options:
60W AC/DC power adaptor with 12V, 5A DC output
Option of DIN-rail mounting kit

Please see the product PDF for more in-depth product specifications and further optional accessories.
