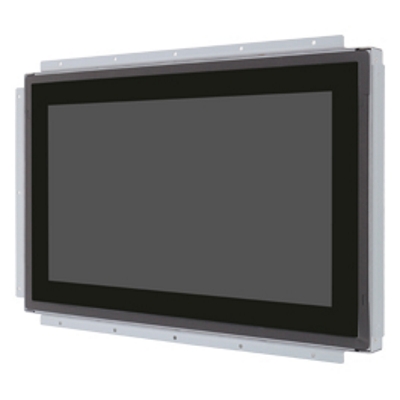

OPC-5168

SKU 4597

There are 15” and 15.6” Open Frame Panel PC in OPC-5XX8(P) series, which
comes with a low power consumption, slim, fanless, and easily achieve flat front
bezel design. It is powered by Intel Celeron N2930 processor and supporting 4GB
DDR3L 1600MHz onboard memory. It comes with a 15” and 15.6” color TFT display,
and 2 x USB 3.0, 2 x COM, 1 x audio line out, 2 x LAN, and 1 x 2-pinconnector for
power on/off button, and 1 x system power LED light….etc. the model comes with a
resistive window and the projected capacitive touch screen is for option, and it is
9~36V wide-ranging DC power input. OPC-5XX8(P) is ideal for use as web browser,
terminal and HMI at all levels of automation control.

  • 15.6″ TFT-LCD, Resistive touch
  • x86 base Intel Celeron N2930 Processor
  • Easily Achieve Flat Front Bezel Design
  • Adjustable Front Bezel Design(2mm, 3mm and 6mm Front Bezel)
  • Optional for High Brightness and Optical Bonding
  • 5-wire Resistive Touch Window/Projected Capacitive Touch Screen Support 7H Optional
  • Front Bezel IP65

OPC-5168-01: 15.6″ WXGA fanless open frame PC with Celeron N2930 1.83G CPU, 4GB DDR3 RAM, Resistive touch screen, 9~36VDC input with adapter, steel enclosure
