POC-200

SKU 3848

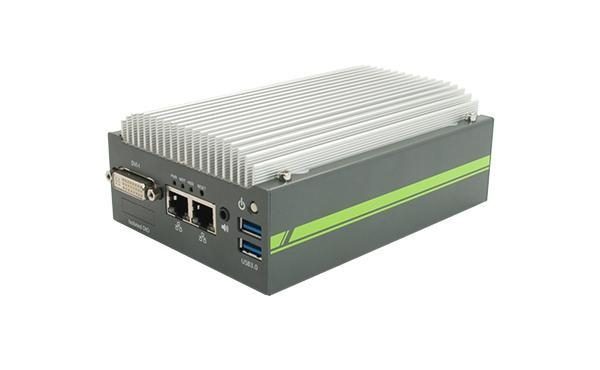

The POC-200 is a fanless controller, ultra compact 146 x 102 x 58mm (W x H x D)—almost as to the same size as a 3.5 inch HDD, and can be easily built into existing systems in the production line, or used for customize systems. Powered by the new Intel® Bay Trail Quad Core CPU, 1.91Ghz E3845, the POC-200 is capable of upgrading to a maximum of 8 GB memory; feature isolated I/O provide users with the digital devices connection, the slick interior design minimizes compatibility and cabling issues.

See the product PDF Datasheet for Full Specifications.

  • Ultra-compact 150 mm x 100 mm foot-print
  • Intel® Atom™ E3845 1.91GHz Quad-core processor
  • Rugged, wide temperature range from -25°C to 70°C fanless operation
  • Two 802.3at (25.5W) Gigabit PoE ports
  • Three USB 3.1 Gen1 ports
  • Standard 2.5″ SATA HDD/SSD accommodation and optional on-board eMMC
  • Up to two RS-232/422/485 ports and two RS-232 ports

POC-200: Intel® Atom™ E3845 ultra-compact fanless embedded computer with 2x 802.3at PoE ports, 3x USB 3.1 Gen1 and 4x COM ports

POC-210: Intel® Atom™ E3845 ultra-compact fanless embedded computer with 2x GbE ports, 3x USB 3.1 Gen1 and 4x COM ports

POC-212: Intel® Atom™ E3845 ultra-compact fanless embedded computer with 2x GbE ports, 3x USB 3.1 Gen1 and 2x COM ports

POC-222: Intel® Atom™ E3825 ultra-compact fanless embedded computer with 2x GbE ports, 3x USB 3.1 Gen1 and 2x COM ports

Option
Option of DIN-rail mounting kit
60W AC/DC power adapter with 12V, 5A DC output
