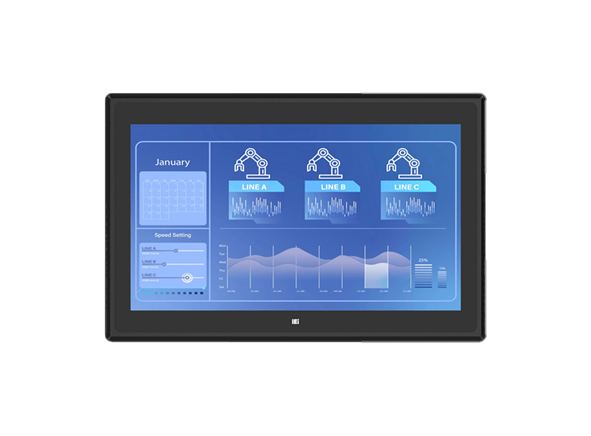

PPC2-CW22-ADL

21.5” High performance Panel PC with 12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor



KEY FEATURES:

  • 12th Gen Intel® Processors Platform
  • PCIe Gen4 x16 slot (x16 signal)
  • Anti-glare and Anti-UV PCAP
  • Support Gloved and Wet Hand Operation
  • Newly Designed Panel Mount Kit
  • New Graphical BIOS Interface

Backplane Systems Technology is proud to introduce iEi’s PPC2-CW22-ADL. The iEi PPC2-CW22-ADL Panel PC is a high-performance computing solution powered by the 12th Gen Intel Alder Lake S series processor. This feature-packed panel PC offers a range of advanced capabilities, including HDMI 2.0 display output, dual 2.5G Ethernet ports, and one PCIe Gen4 x16 slot for expansion. It also comes with M.2 M key and M.2 E key expansion slots, providing additional flexibility for system customization.

One of the standout features of the PPC2-CW22-ADL is its anti-glare and anti-UV 10-point touchscreen with PCAP technology. This allows for clear and uninterrupted display even in outdoor or bright light environments. The touchscreen is designed to support gloved and wet hand operation, ensuring accurate and efficient user interaction in various conditions.

Installation of the PPC2-CW22-ADL is made easy with its newly designed panel mount kit, which can be quickly fastened by hand without the need for additional tools. The panel PC also features a new graphical BIOS interface that can be navigated using touch input, eliminating the need for a keyboard and mouse.

With support for the 12th Gen Intel Desktop Platform, the PPC2-CW22-ADL delivers exceptional performance and efficiency. The PCIe Gen4 x16 slot allows for functional expansions such as graphics cards, LAN cards, or motion control cards, enabling users to enhance the system’s capabilities according to their specific needs.

Overall, the iEi PPC2-CW22-ADL Panel PC combines powerful computing performance, a versatile expansion interface, and a user-friendly touchscreen to offer a comprehensive solution for various applications, including industrial automation, retail, and digital signage.

Ordering Information

PPC2-CW22-ADL-P/4G-R10 21.5″ 350 cd/m² 1920×1080 Panel PC with 12th Intel® Pentium® Gold G7400 Processor (6M Cache, 3.70 GHz),TDP 46W,4GB DDR4,HDMI Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10
PPC2-CW22-ADL-i7/4G-R10 21.5″ 350 cd/m² 1920×1080 Panel PC with 12th Intel® Core™ i7-12700 Processor (25M Cache, up to 4.90 GHz),TDP 65W,4GB DDR4,HDMI Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10
PPC2-CW22-ADL-i5/4G-R10 21.5″ 350 cd/m² 1920×1080 Panel PC with 12th Intel® Core™ i5-12400 Processor (18M Cache, up to 4.40 GHz),TDP 65W,4GB DDR4,HDMI Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10
PPC2-CW22-ADL-i3/4G-R10 21.5″ 350 cd/m² 1920×1080 Panel PC with 12th Intel® Core™ i3-12100 Processor (12M Cache, up to 4.30 GHz),TDP 60W,4GB DDR4,HDMI Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10
