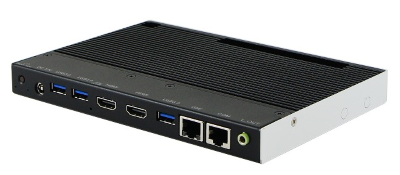

SE-102-N

SKU 4796

The SE-102-N has been designed and tested to work in harsh outdoor and indoor environments with a wide range of operating temperatures rating of -40°C to +70°C. This fanless and noiseless system comes with an Intel® Atom™ x7-E3950 @ 2.0GHz quad-core processor and Intel® HD Graphics, which combines efficient and excellent performance, ensuring industrial-grade reliability for stable operation. The SE-102-N has two dual-channel DDR3L-1866 sockets to provide up to 8GB memory and 64GB mSATA SSD for faster system boot and low heat emission.

  • iSMART – for EuP/ErP Power Saving, Auto-Scheduling and Power Resume
  • Intel® Atom™ Processor x7-E3950 @ 2.0GHz (Optional Intel® Pentium® N4200)
  • Intel® HD Graphics (Gen 7-LP) 4EU
  • 2x DDR3L-1866 SO-DIMM, Dual Channel, Max. 8GB (Non-ECC)
  • 2x HDMI 1.4b (Built-in Hardware EDID Emulation Function with Software Control)
  • 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth, 4G or Capture Card Options
  • Wide Operating Temperature Range From -40°C to 70°C
  • Fanless, Super Slim and Compact Design

SE-102-N: Signage Player with Intel® Atom™ x7 / E3950 (1.6~2.0GHz), 1x 4GB DDR4 SO-DIMM RAM, 64GB mSATA, and 60W power adaptor.
(Operating temperature : -40~70C support is not included the adaptor)
SE-102-N420: Signage Player with Intel® Pentium® N4200 (1.1~2.5GHz); 1x 4GB DDR4 SO-DIMM RAM, 64GB mSATA, and 60W power adaptor.
(Operating temperature : 0~45C)
SI-MK1: Mounting bracket for SI-06/08/12/18/22/SE-102-N series
