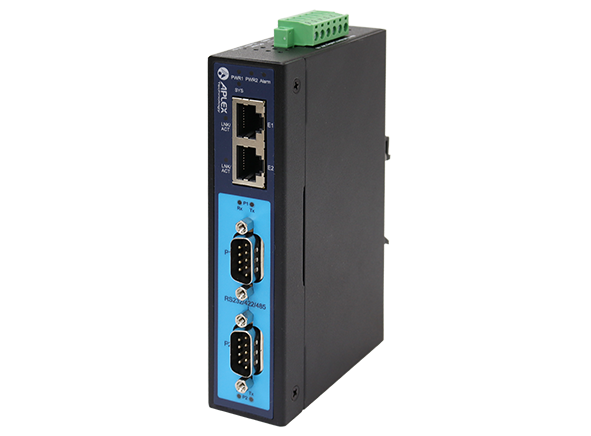

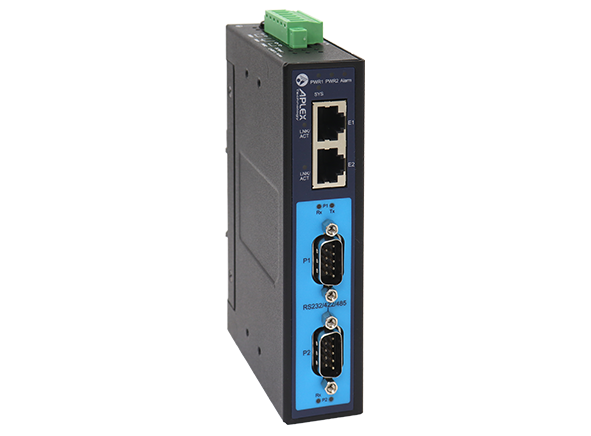

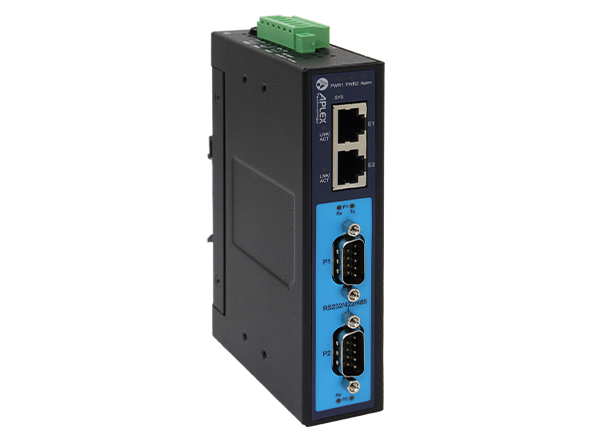

SiER-G2201M

Industrial 2-port RS-232/422/485 Modbus Gateway



Key Features:

  • Integrated Ethernet and RS-232/RS-422/RS-485 serial interface
  • Supports 32 Modbus TCP master and slave mode devices

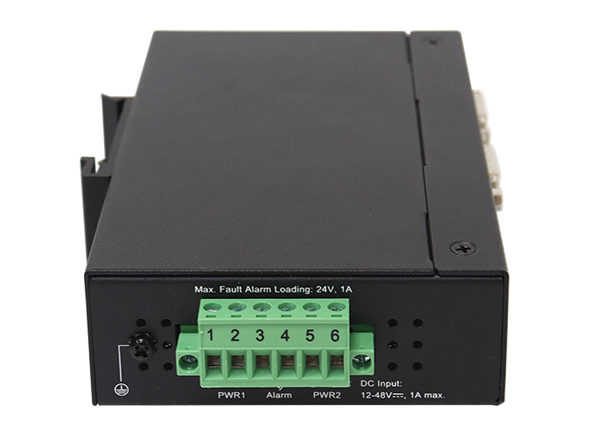

  • Industrial standard 12~48V DC power backup, or 9~48V DC and 24V AC power backup Supports 10/100BASE-TX RJ45 transmission distance up to 100 meters
  • Support Modbus RTU. ASCII Master/Slave

Backplane Systems Technology is pleased to present Aplex’s SiER-G2201M. The Aplex SiER-G2201M Industrial Modbus Gateway marks a pivotal advancement in smart manufacturing technology. As an integral part of Aplex’s SiER series, this gateway facilitates robust communication between devices using different protocols within a factory setting. It supports both Ethernet and RS-232/RS-422/RS-485 serial interfaces, allowing up to 32 Modbus TCP master and slave mode devices to connect seamlessly.

Key features of the SiER-G2201M include dual COM ports and dual LAN ports, ensuring enhanced connectivity and reliability. This model also boasts a flexible power backup option ranging from 12 to 48V DC, or 9 to 48V DC and 24V AC, catering to varied industrial power supply standards. The device’s transmission capabilities extend up to 100 meters with a 10/100BASE-TX RJ45 setup, supporting both Modbus RTU and ASCII Master/Slave protocols.

Designed for durability, the SiER-G2201M withstands harsh industrial environments with a wide operating temperature range of -40˚C to 85˚C. Its rugged build is complemented by shock-proof and vibration-proof testing, ensuring long-term reliability. This gateway is a fundamental tool for digitizing and streamlining operations, thereby enhancing the overall efficiency of smart manufacturing systems. Through the integration of such advanced technologies, Aplex is shaping the future of industrial automation and AIoT implementation in factories worldwide.



Ordering Information

SiER-G2201M

Industrial 2-port RS-232/422/485 Modbus Gateway
