The tM-P3R3/tM-PD3R3 provides 3 channels for digital input and 3 channels for relay output, each of which features photocoupler isolation. All output channels are form A type relays, while input is based on sink- or souce-type using a wire connection. All input channels can be used as 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.

• Relay Outputs
• Dry Contact Source-type Digital Inputs
• Photocoupler Isolation
• All Channels Can Be Used As 16-bit Counters
• Dual Watchdog
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Cost-effective
• Wide Operating Temperature Range: -25 ~ +75°C

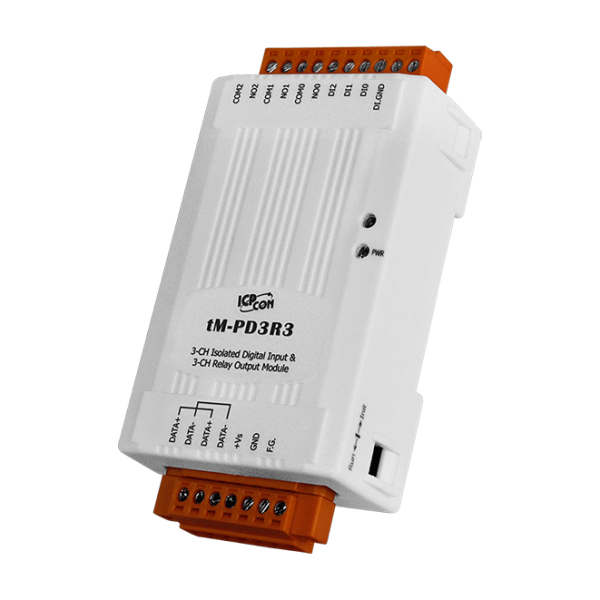

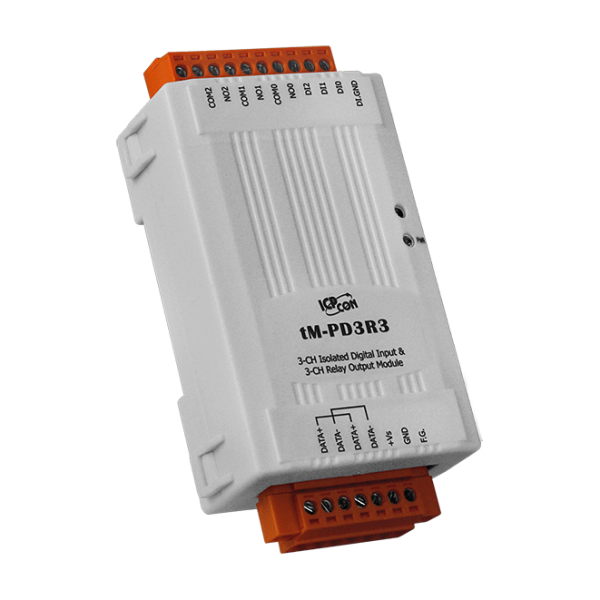

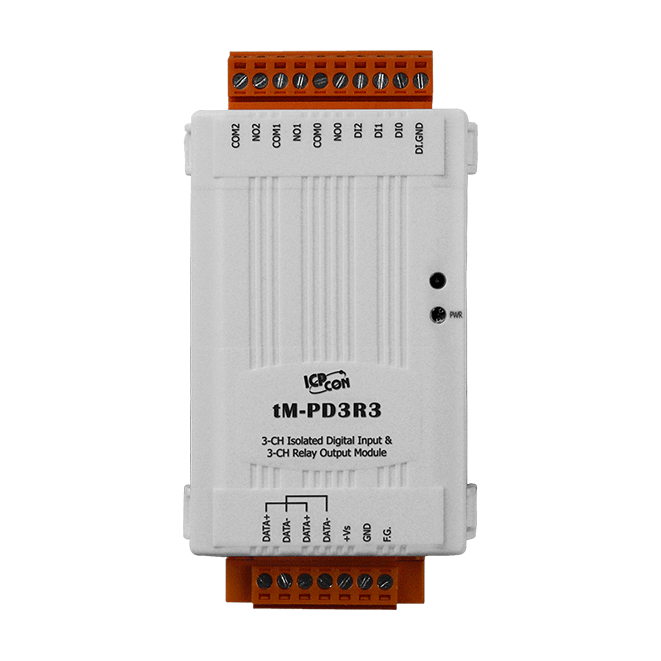

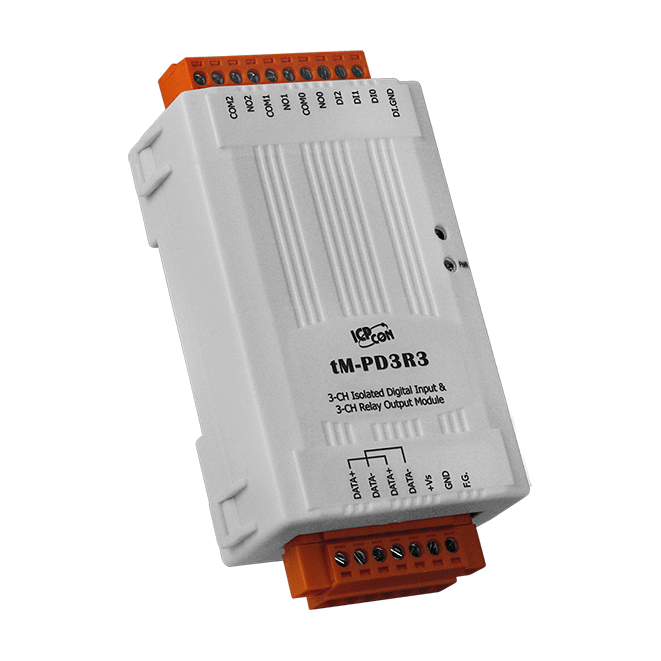

tM-PD3R3 CR: 3-channel Isolation DI (Dry) and 3-channel Power Relay Module (RoHS)
