TPD-433-M2

SKU 4855

TPD 4.3 inch Mx series is a series of tiny touch HMI and designed for building and home automation. TPD 4.3 inch Mx series is equipped with high resolution TFT color touch screen and can be used to replace regular electrical wall-mount outlets. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.

  • Excellent C/P ratio (cost/performance)
  • High-resolution color touch screen
  • PoE (Power over Ethernet)
  • Multiple serial communication interfaces
  • RTC (Real Time Clock)
  • GUI design
  • Free HMIWorks development tool
  • Supports C language and Lader Designer
  • Modbus TCP, Modbus RTU and DCON protocol
  • ESD Protection: 4 kV
  • Operating temperature: -20 ~ 50°C
  • Supports user-defined third party protocol (C language)

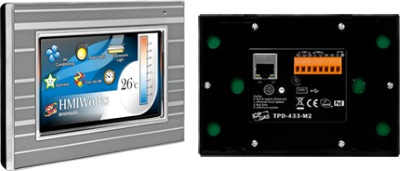

TPD-433-M2 CR: 4.3″ Touch HMI device with RS-485, RS-232 (3 pin), USB, RTC, Ethernet (Panel: grey, RoHS)

  • ICP DAS
