VINO2100

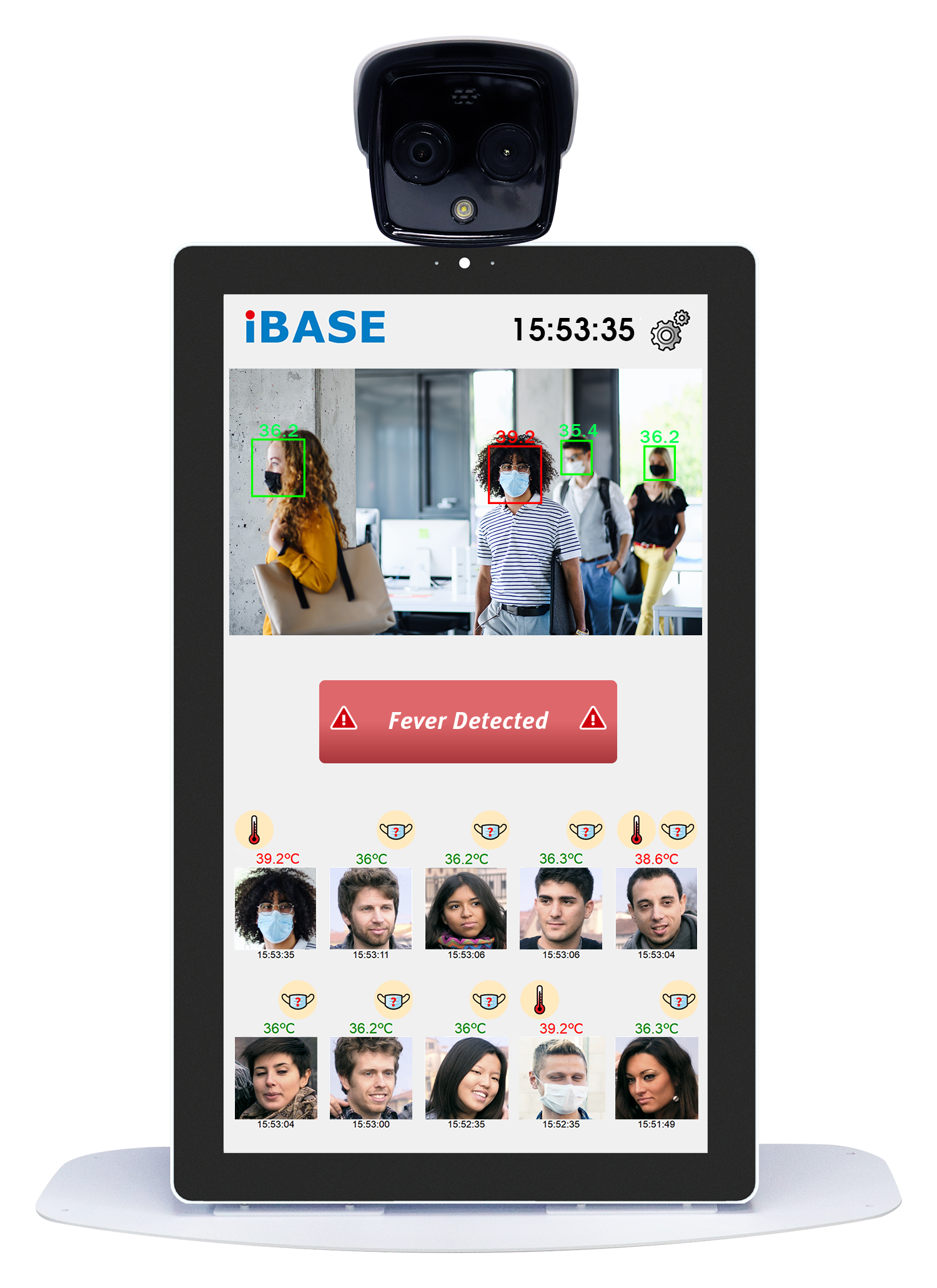

The VINO2100 is an intelligent face mask and body temperature detection system powered by Intel® OpenVINO-based iVINO AI recognition software. It offers real-time face mask detection and accurate body temperature measurement for multiple people during the current COVID-19 pandemic. With face localization to ascertain temperature, it minimizes the risk of measuring a different person’s temperature and is not impacted by a foreign object such as a cup of coffee.

  • Face mask recognition with 90+% accuracy in 50ms speed
  • Body temperature test with measurement range from 35°C ~ 42°C (95°F ~ 107.6°F), precision of ±0.3°C
  • Real-time detection for multiple people
  • Built-in Intel OpenVINO-based iVINO AI recognition software
  • High-precision thermal camera
  • IP65 front-panel waterproof protection
  • Supports sound/light alarm and access gate control

The VINO2100 is an all-in-one platform featuring a 7th Gen Intel® Core™ i7-7600U processor and a 21.5″ IPS LCD touch panel with IP65 front-panel waterproof protection. It uses a high-precision thermal camera for body temperature measurements ranging from 35°C to 42°C (95°F to 107.6°F), precision of ±0.3°C. The VINO2100 features face mask recognition with 90+% accuracy in 50ms speed and can be used to intercept people not wearing face mask and who fail body temperature test. It supports sound/light alarm and access gate control for one by one walk-through inspection. The face mask detection function can be disabled if not required.

Unlike handheld thermometers that need an individual to take a person’s body temperature, VINO2100 provides non-contact and efficient temperature check and facial mask detection to allow or deny the entry of people in buildings and event venues. With artificial intelligence (AI) technology, it does not require human observation or intervention to assist front line workers to perform epidemic prevention and control and is extremely suitable for deployment in public places such as office buildings, retail stores, shopping malls, airports and banks. Measuring 537 x 329.26 x 71.95mm, the fan less system is made in Taiwan and has 8GB of DDR4 memory and 64GB SSD storage. A desktop mounting stand and the high-precision thermal camera are optional in the package.

VINO2100 21.5”: (1080×1920) Artificial Intelligence Image Recognition System, Intel® i7 7600U processor, 8GB DDR4 memory, 64GB SSD, projected capacitive touch screen, pre-installed Windows 10 and iVINO AI recognition software, w/ 24V 180W adaptor

VINOCAM2617: Thermal camera

CB2617: Thermal camera bracket

VINODKM: Desktop mounting stand
