VP-23W9/VP-25W9

SKU 2869

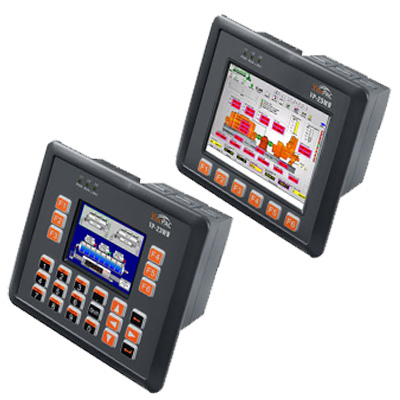

ViewPAC-23W9/ViewPAC-25W9 is the new generation WinCE based InduSoft PAC of ICP DAS. ViewPAC combines WinPAC, graphic display and keypad in one unit. It equips a PXA270 CPU (520MHz) running Windows CE.NET 5.0 operating system, variant connectivities (USB, Ethernet, RS-232/485), 3 slots to expand I/O modules, 3.5”/5.7” TFT LCD and a rubber keypad.

Software Features

  • Windows CE.NET 5.0 Inside
  • Easy Remote Maintenance Via Ethernet
  • FTP Server
  • VCEP software
  • Built-in OPC Server: Quicker
  • An OPC Server for SCADA Software
  • Integrates Local/Remote I/O Modules Via RS-232/485 or Ethernet
  • Provides Library for eVC, C# or VB.NET
  • Supports Modbus and DCON Protocols
  • Development Software
  • Visual Studio.NET 2003/2005/2008 and eVC
  • SDK/Demo Programs for C#, VB.NET & eVC

Hardware Features

  • PXA 270 CPU (32-bit & 520 MHz)
  • IP44 Compliant Front Panel
  • 3.5”/5.7” TFT LCD (5.7” LCD is with Touch Panel
  • Rubber Keypad with 24/6 Keys
  • Audio with MIC-In and Line-Out
  • 64-bit Hardware Serial Number for Software Protection
  • 3 Slots for High Profile I/O Modules
  • Rich I/O Expansion Abilities
  • Ethernet
  • RS-232/422/485
  • FRnet
  • CAN bus
  • Dual Battery Backup SRAM (512 KB)
  • One Ethernet Port
  • 2 Serial Ports (RS-232, RS-485)
  • Operating Temperature: -20 ~ +70 °C

VP-23W9-EN CR : InduSoft based ViewPAC with 3.5″ LCD (English Version of OS) (RoHS)

VP-25W9-EN CR : InduSoft based ViewPAC with 5.7″ LCD (English Version of OS) (RoHS)

VP-23W9-TC CR : InduSoft based ViewPAC with 3.5″ LCD (Traditional Chinese Version of OS) (RoHS)

VP-25W9-TC CR: InduSoft based ViewPAC with 5.7″ LCD (Traditional Chinese Version of OS) (RoHS)

VP-23W9-SC CR: InduSoft based ViewPAC with 3.5″ LCD (Simplified Chinese Version of OS) (RoHS)

VP-25W9-SC CR: InduSoft based ViewPAC with 5.7″ LCD (Simplified Chinese Version of OS) (RoHS)
