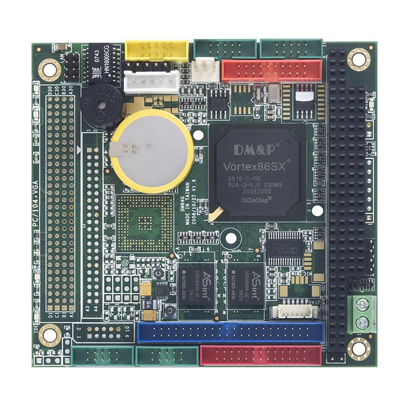

VSX-6150E-V2 (300MHz)

SKU 3233

Features

  • DM&P SoC CPU Vortex86SX- 300MHz
  • PC/104 standard compliant, PCI-104 & PCI/104+ (Optional)
  • 128MB DDR2 onboard
  • Watchdog Timer, software programmable from 30.5 µsec. to 512 sec.
  • Integrated 10/100Mbps Ethernet
  • Onboard 2MB SPI Flash Disk
  • Support MSTI EmbedDisk Module
  • Operation Temperature: -20°C ~ +70°C, -40°C ~ +85°C (Optional)

Ordering Information

VSX-6150E-V2: Vortex86SX PC/104 CPU Module with 128MB DDR2

VSX-6150E-V2-X: -40°C ~ +85°C Wide Operating Temperature

VSX-6150E-V2-PLUS: Vortex86SX PC/104+ CPU Module with 128MB DDR2
