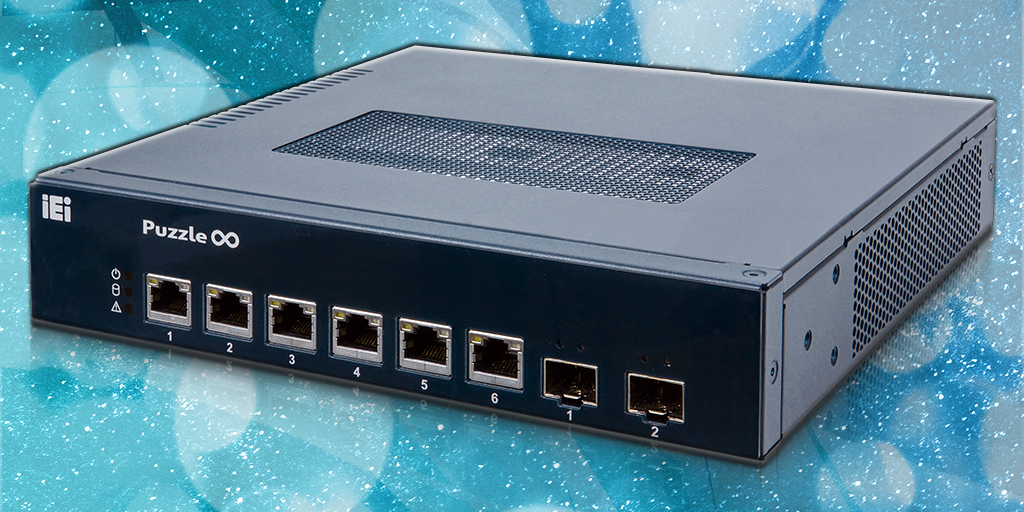

PUZZLE-IN003B

Compact Networking Solution for SME’s - March 16, 2020

Backplane Systems introduces iEi’s PUZZLE-IN003B Compact Networking Solution for Small and Medium-sized Enterprises.

Puzzle-IN003B is a Desktop Network Device that can be easily places in space limited areas. It comes with Intel® Atom® Processor C3000 series System On Chip (4 core to 16 core and up to 2.2Ghz ) which supports up to 128GB Dual-channels DDR4 2400 MHz ECC (UDIMM, or RDIMM), 32GB Embedded Multi Media Card (eMMC), and have High Speed Network Data Transmission of 2 x 10Gb integrated Ethernet and 6 x 1Gb RJ-45 LAN ports.

In order to speed up the network solutions, it also offers Intel® QuickAssist Technology (Intel® QAT up to 20Gbps) to accelerate and compress cryptographic workloads.

In the 5G network, security is an indispensable requirement. The base station must use air interface security to connect to the User Equipment (UE), and an IPsec connection to connect to the core network. The base station must support high-performance crypto algorithms like AES at the IP level and ZUC/Kasumi/Snow3G at the PDCP level.

To support these requirements the Intel Atom® C3000 processor series integrates Intel® QuickAssist Technology providing up to 20 Gbps of crypto performance, ensuring secure data transfer while reserving valuable processor cycles for other tasks.

KEY FEATURES:

  • Intel® Atom® Processor C3000, Processor up to 16 CPU Cores
  • Support Six GbE and Two 10 GbE SFP+ via Integrated C3558/C3758
  • DDR4 2133MHz ECC or non-ECC UDIMM / RDIMM up to 128GB
  • 1 x 2230 M.2 A Key (USB 2.0, PCIe x1), 1 x 2260/2280 M.2 M Key, 1 x PCIe Mini (USB 2.0, PCIe x1), SIM Card Slot, 1 x eMMC 32GB
