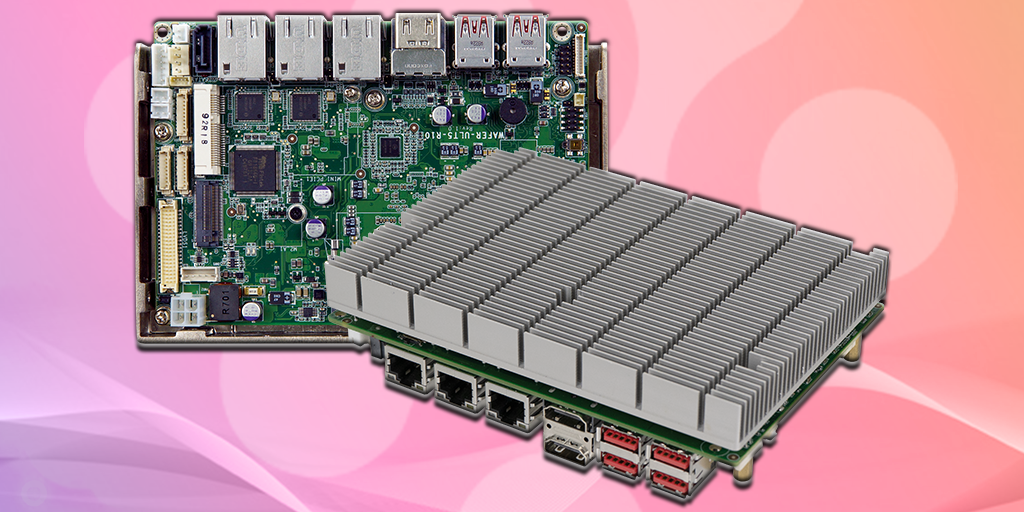

WAFER-ULT5

3.5” SBC Supports Intel® 8th Generation Whiskey Lake Processor - March 6, 2020

Backplane Systems introduces iEi’s WAFER-ULT5 3.5” SBC Supports Intel® 8th Generation Whiskey Lake Processor with DDR4 SO-DIMM, Triple Display with dual HDMI 1.4, LVDS, Triple GbE, USB 3.1 Gen2, M.2 A key, mPCIe with mSATA support, SATA 6Gb/s and COM.

The WAFER-ULT5 Series is a 3.5″ form factor Single Board Computer. It has an on-board 8th Generation 14nm Intel® Core™ i7/i5/i3 or Celeron® Processor and supports one 260-pin 2400 MHz dual-channel DDR4 SDRAM SO-DIMM slot with up to 32.0 GB of memory.

WAFER-ULT5 Series includes two HDMI connectors and an 18-/24-bit LVDS connector for Triple Independent Display.

Expansion and I/O includes one full-size PCIe Mini slot supporting mSATA Modules, one M.2 A-key slot for expansions, four USB 3.2 Gen 2 connectors on the rear panel, two USB 2.0 connectors by pin header and one SATA 6Gb/s connector. Serial Device Connectivity is provided by one internal RS-232 connector and one internal RS-232/422/485 connector. Three RJ-45 GbE connectors provide the system with smooth connections to an external LAN.

KEY FEATURES:

  • 3.5” SBC Supports Intel® 8th Generation Whiskey Lake Processor with DDR4 SO-DIMMs
  • Triple Display with Dual HDMI, LVDS Selection
  • 2 A Key, PCIe Mini Slot with mSATA Support
  • COM, USB 3.1 Gen2, SATA 6Gb/s Support
  • Support Temperature Operation: -20°C ~ +60°C
