August 19, 2019

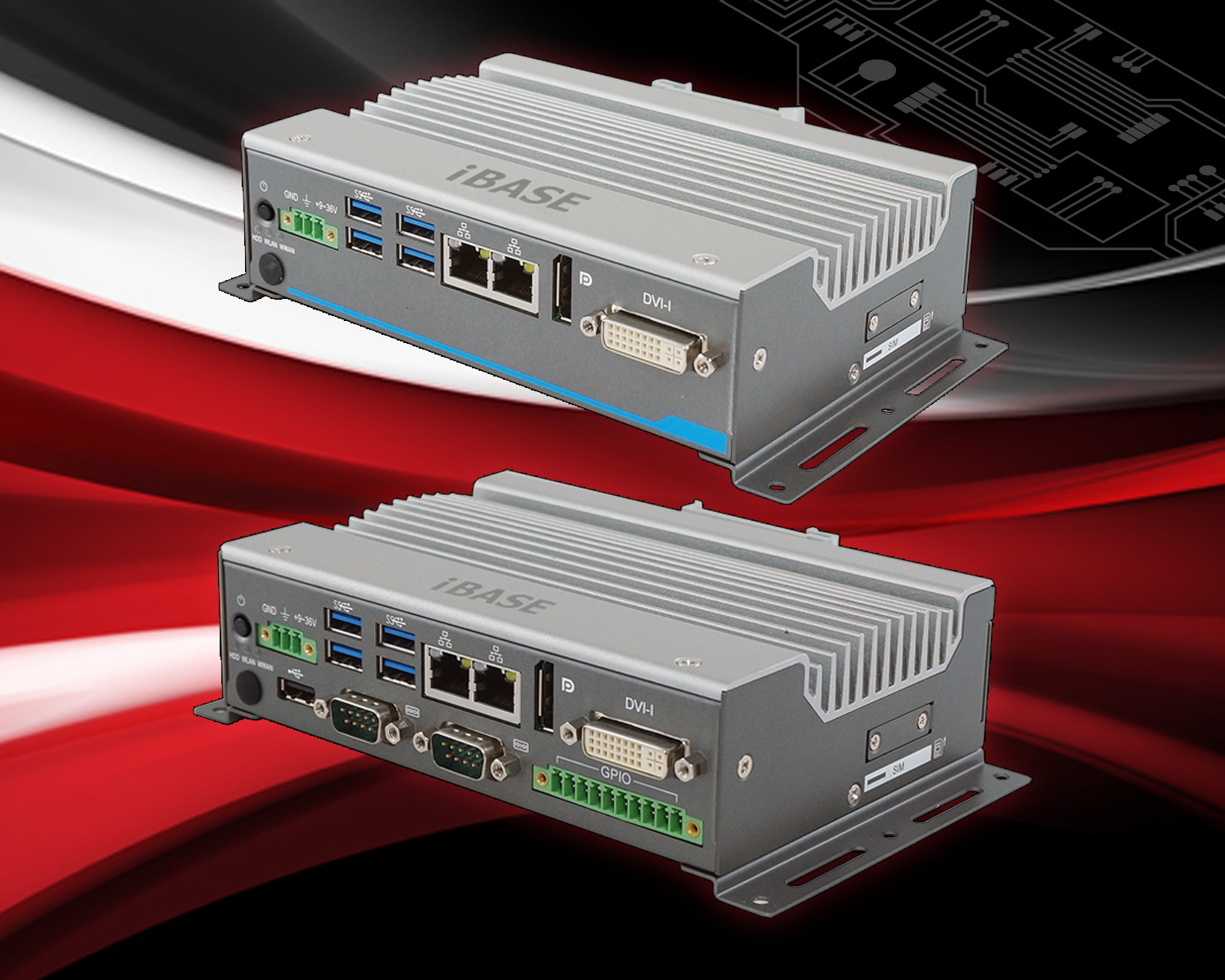

Backplane Systems Technology is proud to present iBase’s New AGS100T/AGS102T IoT Gateways with TPM Security.

The AGS100T/AGS102T Compact Fanless Platforms offer maximum reliability and longevity support, featuring Wide-Range Operating Temperature ranging from -40°C to 70°C depending of CPU required with dimensions of 160 x 110 x 44mm. Both models are suitable for Space-Constrained Applications in harsh environments that require devices equipped with Trusted Platform Module (TPM) Technology.

Powered by Intel’s Apollo Lake Atom™ x7/x5 series, Pentium® N4200, and Celeron® N3350 SoCs, the systems enable Seamless and Secure Data Flow to the Cloud in IoT-Focused Applications with Enterprise-Grade Security, and Easy Manageability.

AGS100T/AGS102T gateways come with an extra advanced security TPM 2.0 chip to provide a high level of hardware-based security. By using TPM together with Windows 10, these devices carry out cryptographic operations for access control and authentication. TPM enables integrity measurements during system boot and makes TPM-Based Key unavailable outside the TPM to prevent phishing attacks and authorization value guesses.

The Rugged AGS100T feature 4GB DDR3L-1866 DO-DIMM, 64GB MLC Industrial-Grade mSATA SSD, Dual Display Ports (DVI-I and DisplayPort), 4x USB 3.0, 2x GbE, 2x COM, DC-in Terminal Block for 9V~36V Input and Over/Under/Reverse Voltage Protection. The AGS102T has the same features as the AGS100T but has two extra Serial Ports for COM3/COM4 and GPIO 4-in & 4-out Multi-Purpose Interface.

Expansion are available with a Full-Size Mini PCI-E, 2230 M.2 E-Key Socket for WLAN & BT, a 3042 M.2 B-Key Socket for WWAN & SSD, mSATA Socket (Mini PCI-E), and a 2242 M.2 B-Key Socket for mSATA SSD.

Key Features:

  • Intel® Atom™ x7-E3950/x5-E3940/x5-E3930 / Pentium® N4200 / Celeron® N3350 Series Processors
  • Rugged and Fanless Design
  • Over/Under/Reverse Voltage Protection
  • Wide-Range Operating Temperature from -40°C to 70°C (12W Max. CPU) and -20°C to 60°C (6W CPU) (E Series CPU)
  • 9V~36V DC Wide-Range Power Input
  • Supports DIN-Rail Mount & Wall Mount & TPM 2.0
  • 2x RS232/422/485 (AGS100T) / 4x RS232/422/485 (AGS102T)
  • GPIO 4-In & 4-Out with Isolation (AGS102T)
