µMAXBES

a Rugged 10-port Gigabit Switch. The open frame version offers a 1Gbit port lockable header. The 10Gbit ports can be equipped with RJ45 or SFP connectors.

Key Features:

  • Two 10Gbit Ports to be Used with SFP+ and Copper
  • Copper or Mixed Copper/Fiber Versions
  • Header Versions for the 1Gbit Ports
  • Wide Input 5-36VDC
  • Fully Manageable Over Web Interface or Telnet
  • Fanless Operation
  • 1AS gPTP Support
  • Optionally CLI via USB

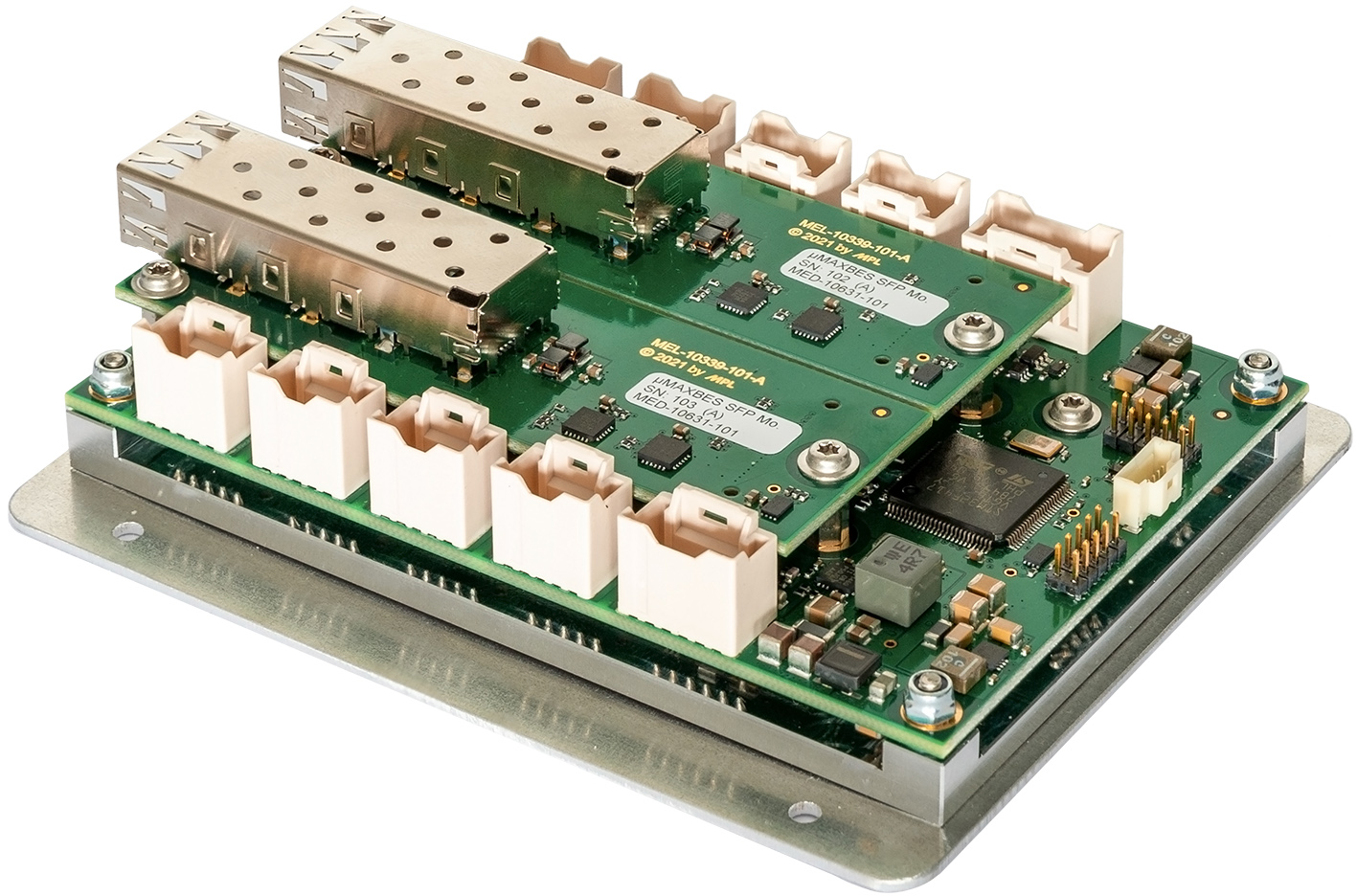

µMAXBES-A8OH Open Frame 10-port manageable Ethernet Switch with 8x 10/100/1000 copper ports on headers and
2x 10Gbit interfaces for SFP+ or copper carrier, all built on universal cooling plate, 8 -36VDC
µMAXBES-SFP1 SFP+ 10Gbit carrier module (max 2 modules (SFP1 or RJ1) per µMAXBES)
µMAXBES-RJ1 RJ45 10Gbit copper module (max 2 modules (SFP1 or RJ1) per µMAXBES)
