tDS-734i

SKU 4885

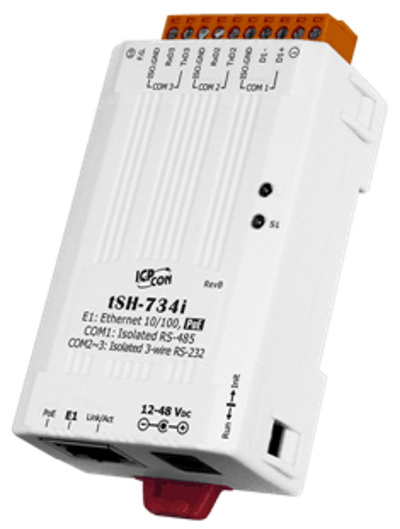

The tSH-734i module is a serial port sharer that provides a number of functions, including “Baud Rate Conversion”, “Modbus RTU/ASCII Conversion” and “Two Masters Share One Slave”. The built-in web server provides easy configuration interface, and no console commands are required.

The tSH-734i also adds 3000 VDC isolation and +/-4 kV ESD protection component that diverts the potentially damaging charge away from sensitive circuit to protects the module and equipment from the sudden and momentary electric current.

  • Supports Baud Rate conversion application
  • Supports Modbus RTU/ASCII protocol conversion
  • Supports two masters sharing one slave port
  • Raw data mode for most query-response protocols
  • Built-in web server for easy configuration (HTTP)
  • Redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
  • Tiny form-factor and low power consumption
  • Watchdog Timer Suitable for Use in Harsh Environments
  • 3000 VDC Isolation and +/-4 kV ESD protection

tDS-734i CR: Tiny Device Server with PoE, 2 Isolated RS-232 and 1 Isolated RS-485 Ports (RoHS)
