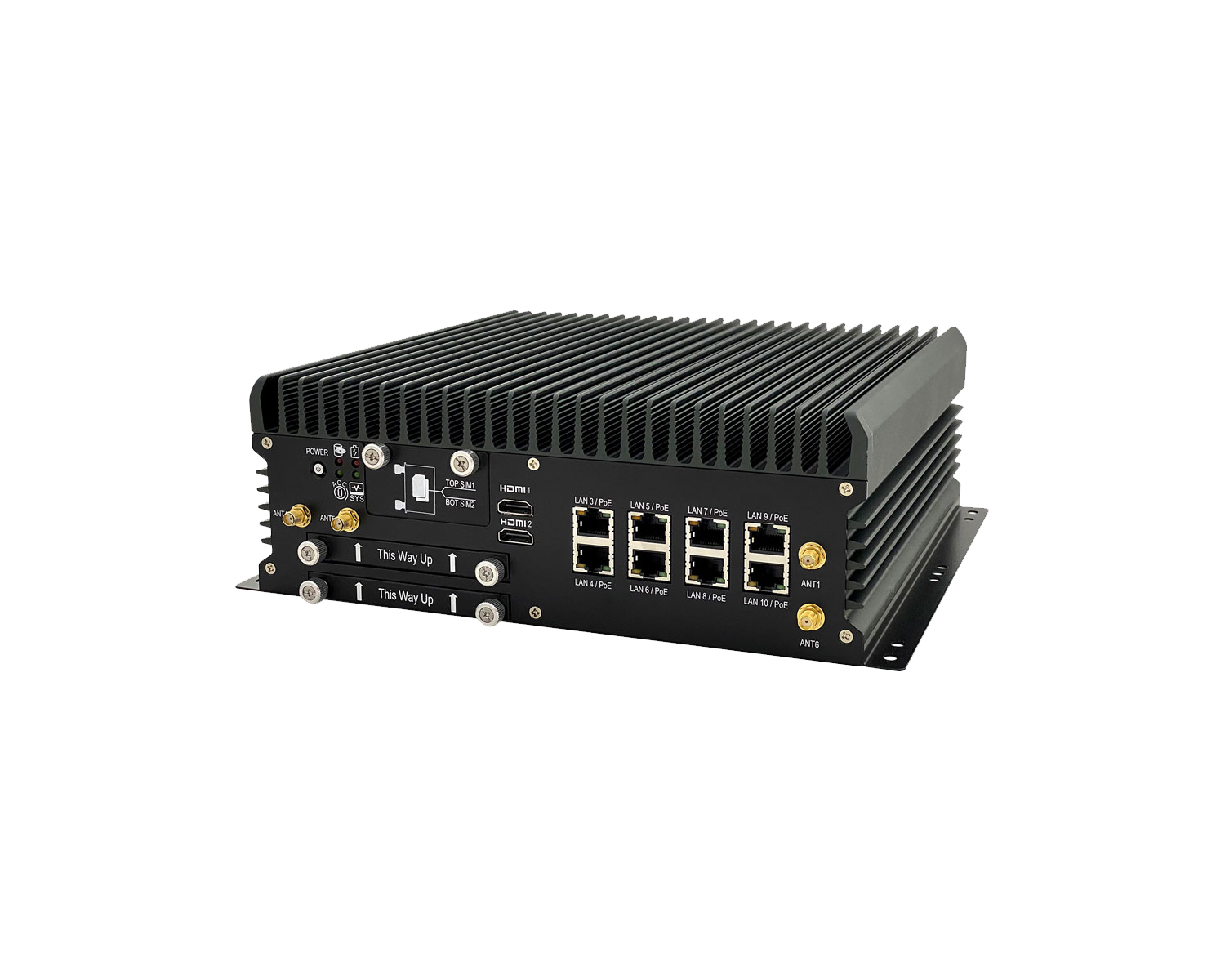

ABOX-5210G6

powerful edge AI fanless computer system powered by Intel® Gen 10th 10 Cores Xeon®, i9 CPU with 10 x GbE and NVIDIA® Quadro® RTX 3000 GPU for AI GPU Computing.

Key Features:

  • Intel® GEN 10th 10 Cores Xeon® W-1290TE / i9-10900TE
  • NVIDIA® Quadro® RTX 3000 GPU
  • Support 1920 CUDA Cores and 240 Tensor Cores
  • 8 x DI, 4 x DO and 3 x RS-232/422/485
  • 1 x M.2 B key, 1 x M.2 A-E key & 3 x miniPCIe expansion slots
  • Dual Hot Swappable SATA Storage RAID 0,1,5
  • 9-48V DC Input and Operating Temp.: -40~60°C
  • 10 x GbE RJ45 (Optional 8 x PoE and 8 x M12 X coded connectors)
  • Rolling Stock EN 50155 and EN 50121-3-2 certified
Part Number ABOX-5210xyy-zz (x= P= w/PoE, x= Empty= w/o PoE, yy=G6=RTX 3000, zz= i9= i9-10900TE, zz= i7= i7-10700TE, zz= i5= i5-10500TE, zz= i3= i3-10100TE, zz= C1= G5900TE)
Description Intel® Gen 10th 10 Cores Xeon®, i9 CPU w/ 10 x GbE (Optional 8 x PoE)/3 x COM/ 3 x DP/ 2 x HDMI/4 x USB 3.2 Gen 1×1/ NVIDIA® Quadro® RTX 3000 GPU/ 9-48V Input AI GPU Computing
