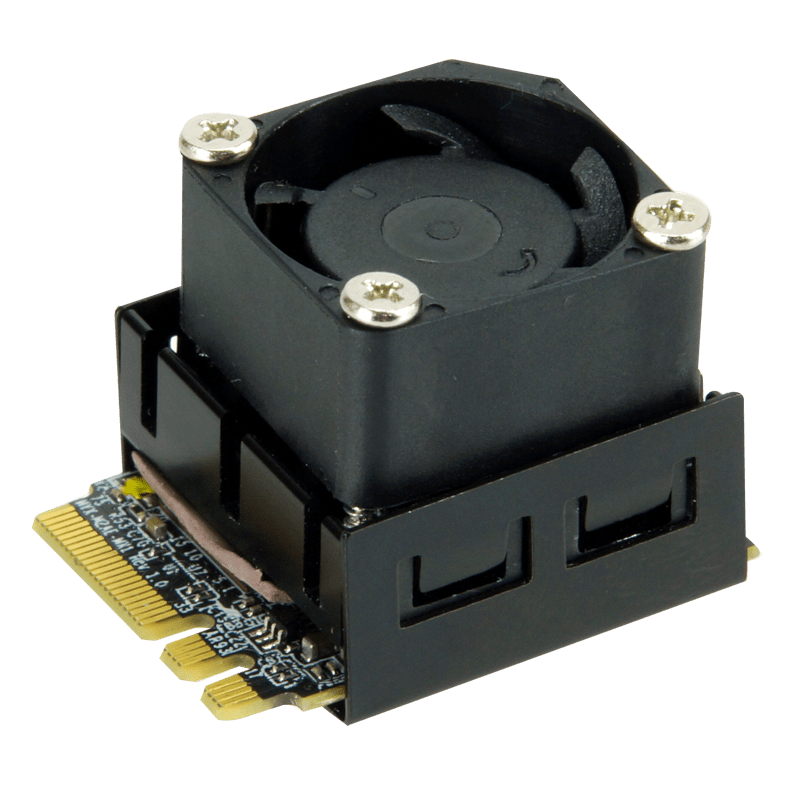

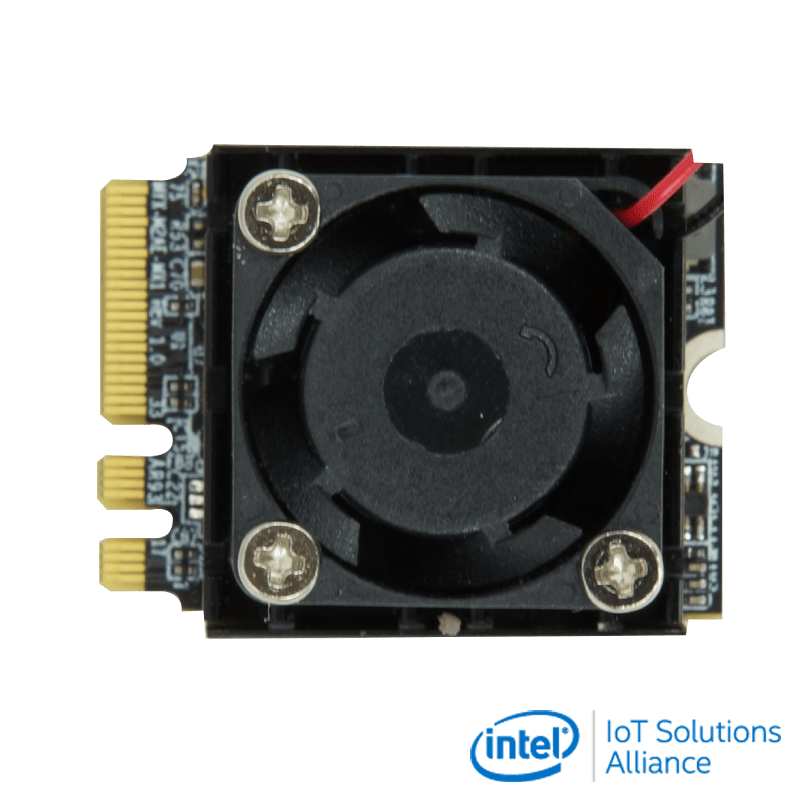

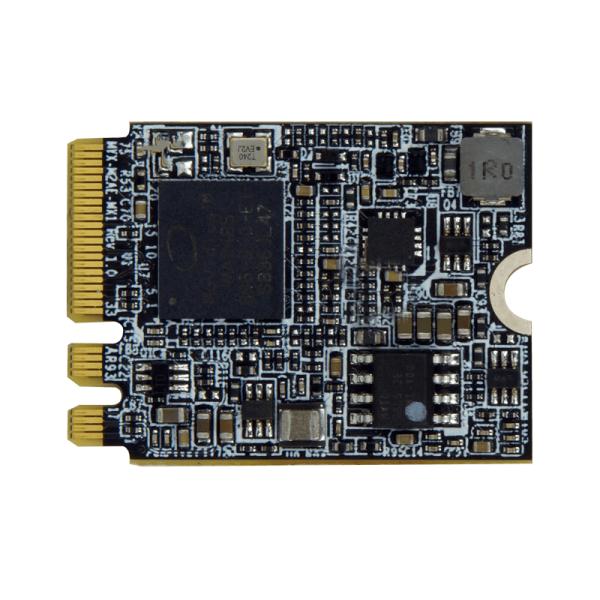

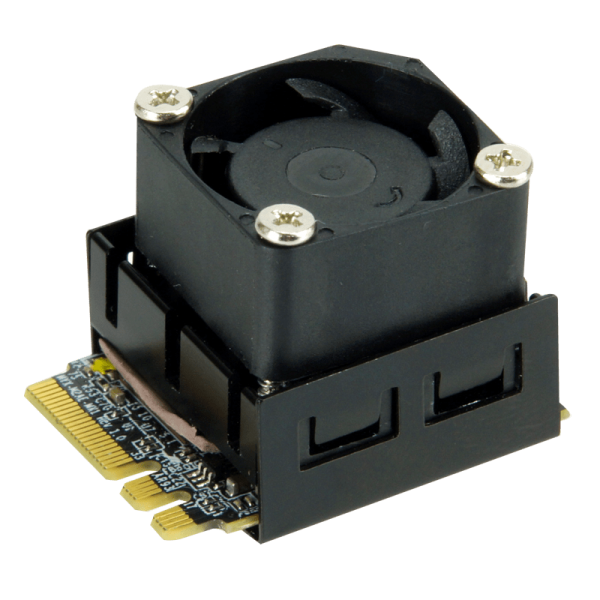

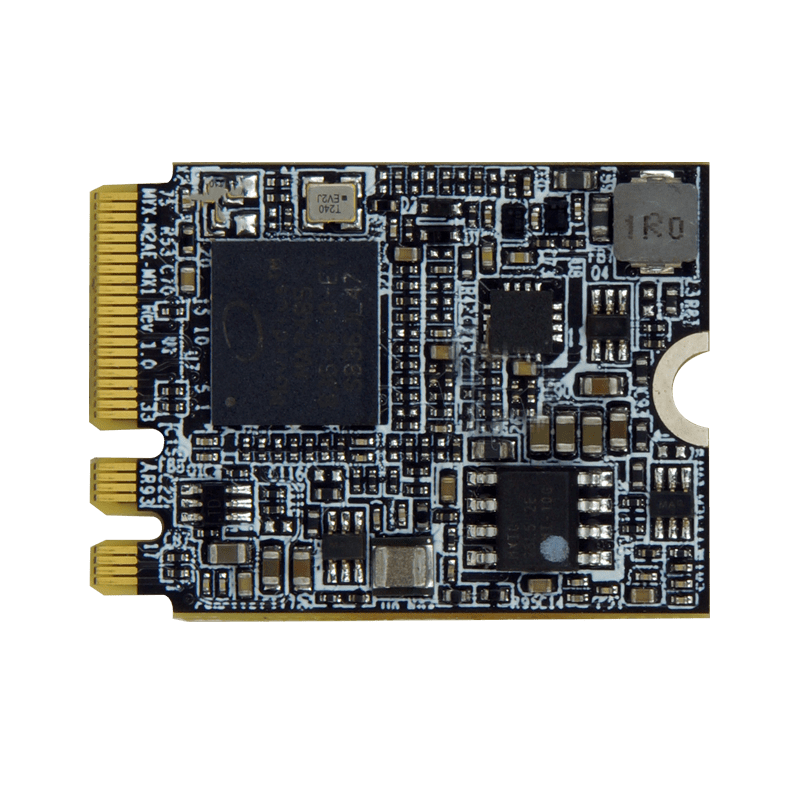

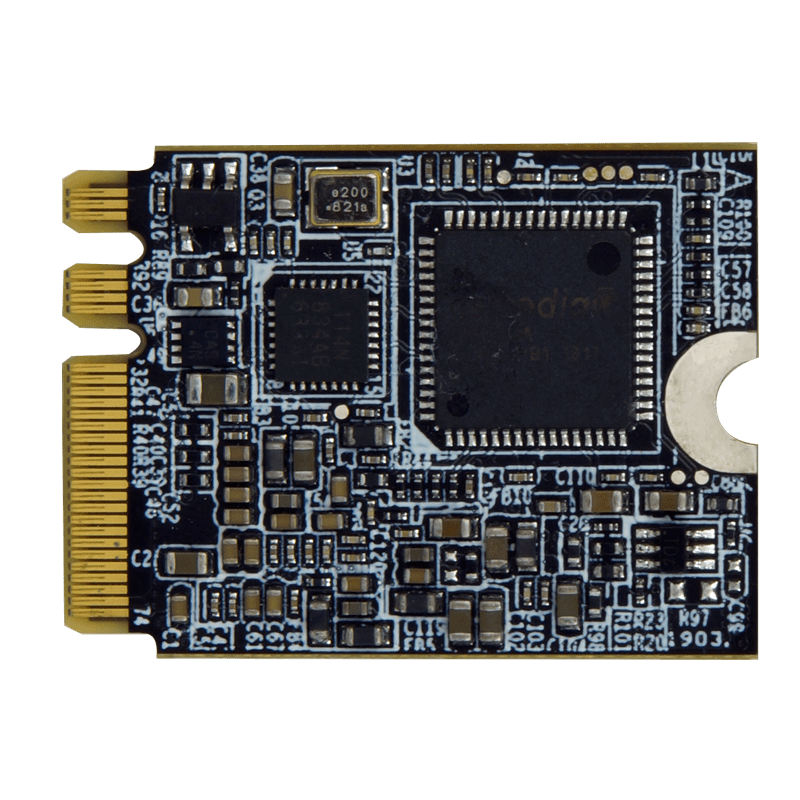

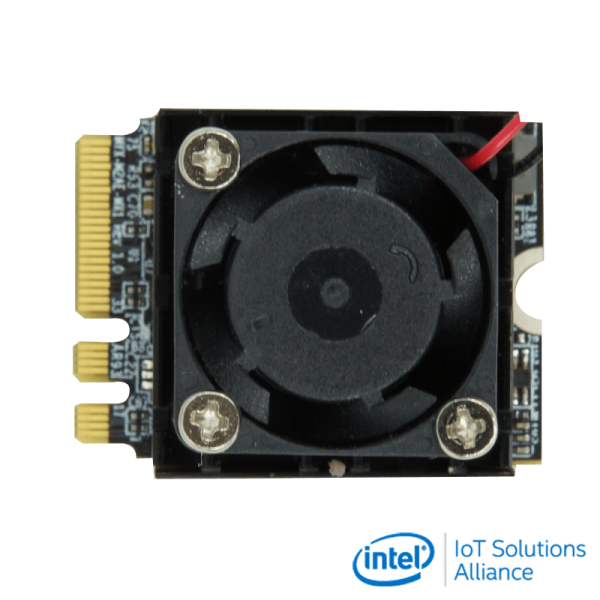

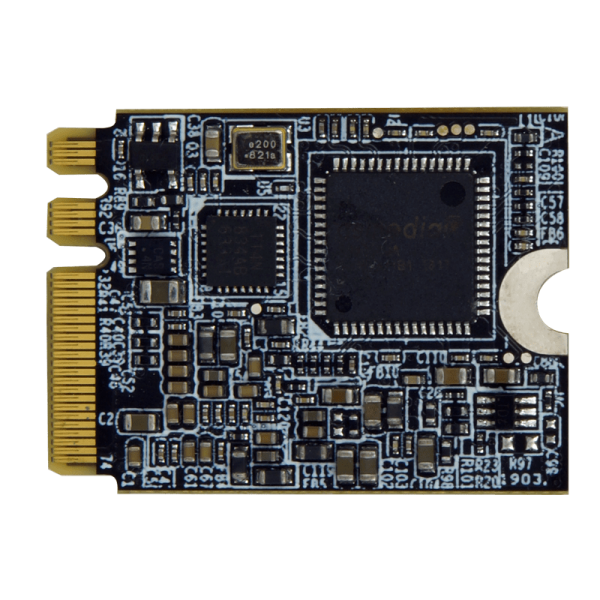

Mustang-M2AE-MX1

The Mustang-M2AE-MX1 (M.2 AE-key card) includes an Intel® Movidius™ Myriad™ X VPU, providing a flexible AI Inference Solution for compact size and embedded systems.

With the Intel® Movidius™ Myriad™ X VPU implemented, the Mustang-M2AE-MX1 supports FP16 and can rapidly port and deploy neural networks in Caffe and Tensorflow formats allowing for End-to-End acceleration.

The Vision Processing Unit (VPU) is designed to allow an AI to process faster and is well suited for low power consumption applications such as surveillance, retail, transportation.

  • M.2 AE Key Form Factor (22 x 30 mm)
  • 1 x Intel® Movidius™ Myriad™ X VPU MA2485
  • Power Efficiency, Approximate 4.5W
  • Operating Temperature -20°C to 60°C
  • Powered by Intel’s OpenVINO™ Toolkit

Mustang-M2AE-MX1: Computing Accelerator Card with 1 x Intel® Movidius™ Myriad™ X MA2485 VPU,M.2 AE key interface, 2230, RoHS

  • IEI Integration
