1-slot Linux Based Metal PAC with E3950 CPU



  • Linux Ubuntu 20.04 with Kernel 5.4
  • Intel® Atom E3950 Processor (1.6 ~ 2.0 GHz, 4C4T)
  • 64 GB SSD
  • Hard Real-Time Capability
  • VGA / HDMI Display Output
  • Built-In Real-time clock
  • 2 10/100/1000M Ethernet Ports
  • 4 Serial Ports (RS-232/485)
  • Redundant Power Input

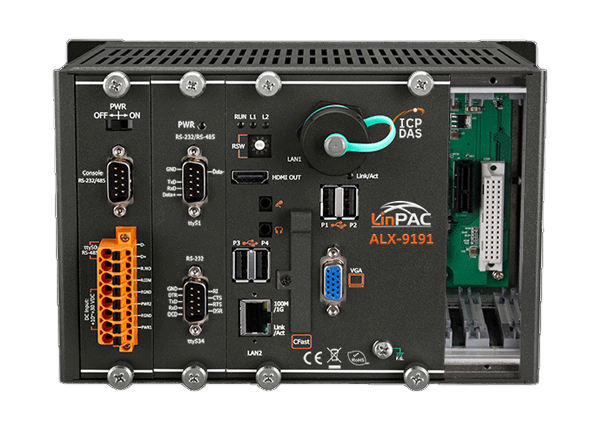

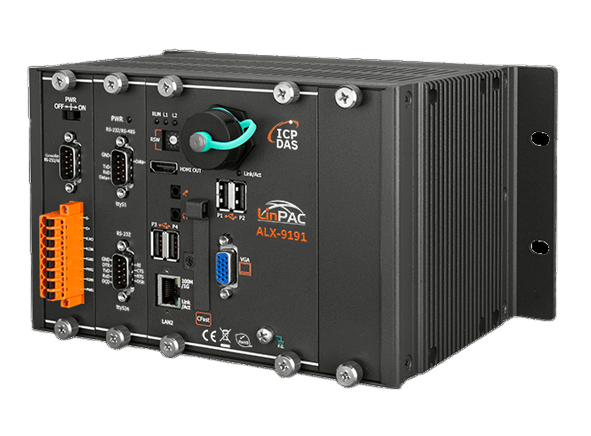

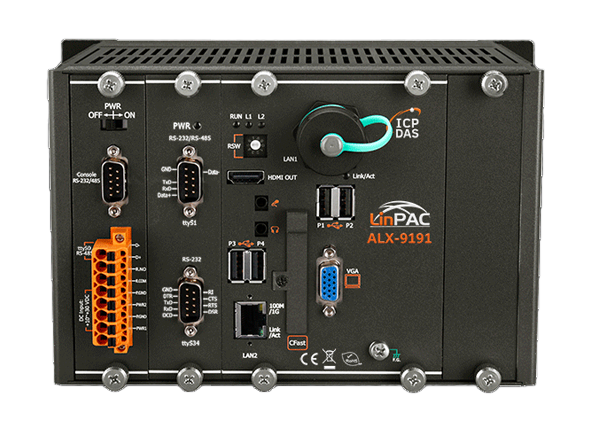

Backplane Systems Technology is proud to introduce ICP DAS ALX-9191. The ICP DAS ALX-9191 emerges as a pivotal component in the landscape of programmable automation controllers (PACs), distinguishing itself through a harmonious blend of computational prowess and versatile connectivity. At its core, the ALX-9191 is powered by the robust Intel® Atom E3950 Processor, which operates at speeds ranging from 1.6 to 2.0 GHz and is complemented by four cores and threads, ensuring a balance between performance and energy efficiency. It is fortified with 8 GB DDR4 SDRAM and a 64 GB SSD, ensuring ample space and speed for demanding applications.

Running on Linux Ubuntu 20.04 with Kernel 5.4, it offers a stable and flexible platform for a variety of industrial applications, further enhanced by its hard real-time capability. This feature is critical in environments where timing is paramount. Visual outputs are managed through VGA and HDMI ports, catering to diverse display requirements.

Connectivity is a forte of the ALX-9191, with dual 10/100/1000M Ethernet ports and four serial ports (RS-232/485), making it adept at handling complex communication tasks. The inclusion of redundant power inputs adds an extra layer of reliability, ensuring uninterrupted operation even in the face of power supply issues.

The ALX-9191 is part of the ALX-9000 series, designed to integrate seamlessly with HMI, data acquisition, and control tasks into a unified system. It supports external storage expansions like CFast cards or USB mass storage, offering flexibility in data management. With the provision of the LinPAC SDK, developers are equipped to create tailored applications using GNU C Language, making the ALX-9191 a cornerstone for custom automation solutions.

Ordering Information

ALX-9191     CR  1-slot Linux Based Metal PAC with E3950 CPU (RoHS)
