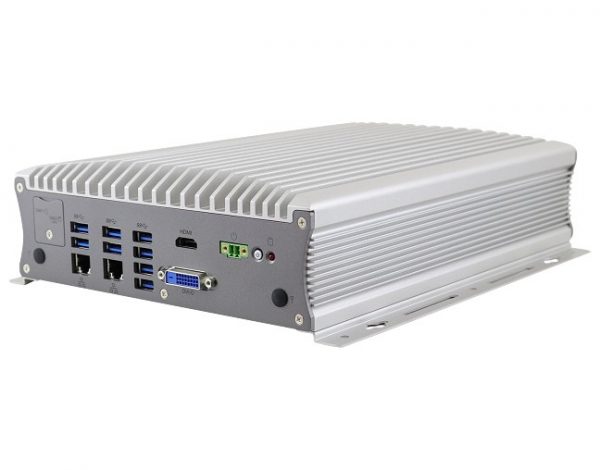

AMI230

It is a robust embedded system based on the 9th/8th Gen Intel® Core™ platform. Developed for the smart factory, industrial automation, AIoT and other applications in harsh environments.

Key Features:

  • Fanless System with IBASE MB230 Customized Board
  • 9th/8th Gen Intel® Core™ i7/i5/i3 Desktop Processors
  • Dual SIM Slots Supports WWAN redundancy

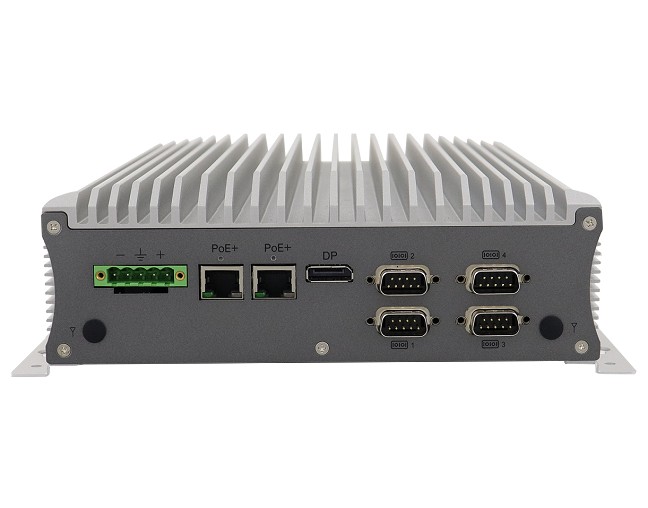

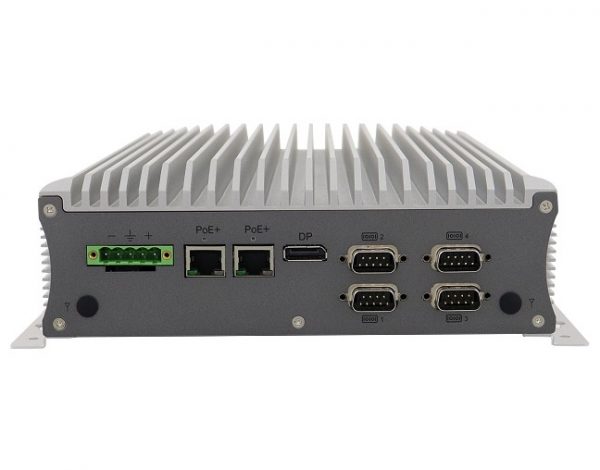

  • 4x RJ45 Gigabit Ethernet port (2x Supports 802.3at PoE+)
  • 3x M.2 (B-Key/E-Key/M-Key)
  • Supports Over/Under/Reverse Voltage Protection
  • iSMART, iAMT (11.6), TPM (2.0)
AMI230AF (Supports SIERRA module) Fanless box System with MB230AF, w/ Intel® Core™ i7/i5/i3 desktop Processor, 4x COM, 1x 8GB memory, 1x 2.5” 64GB MLC industrial-grade SSD, w/o power adaptor
270W Power Adaptor Kit (optional) 270W (24V@11.25A) power adaptor kit Compatible with IEC62368-1/EN62368-1
Optional Accessories Global 4G antenna kit for Sierra Wireless EM7565 module, M.2 (M-Key 2280) Thermal ki
