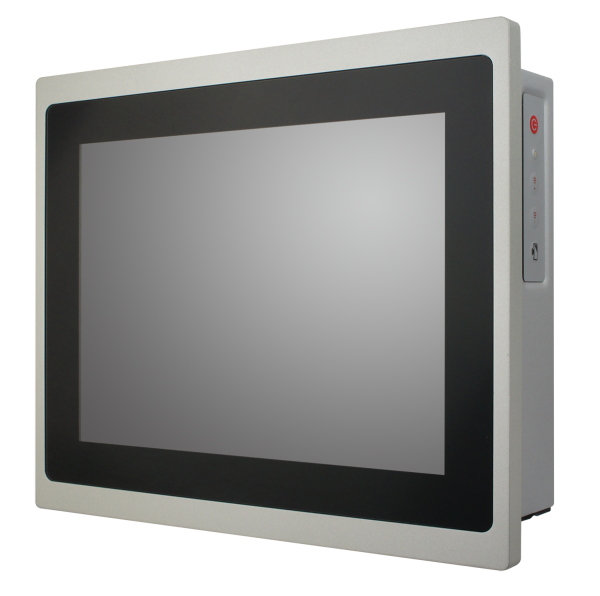

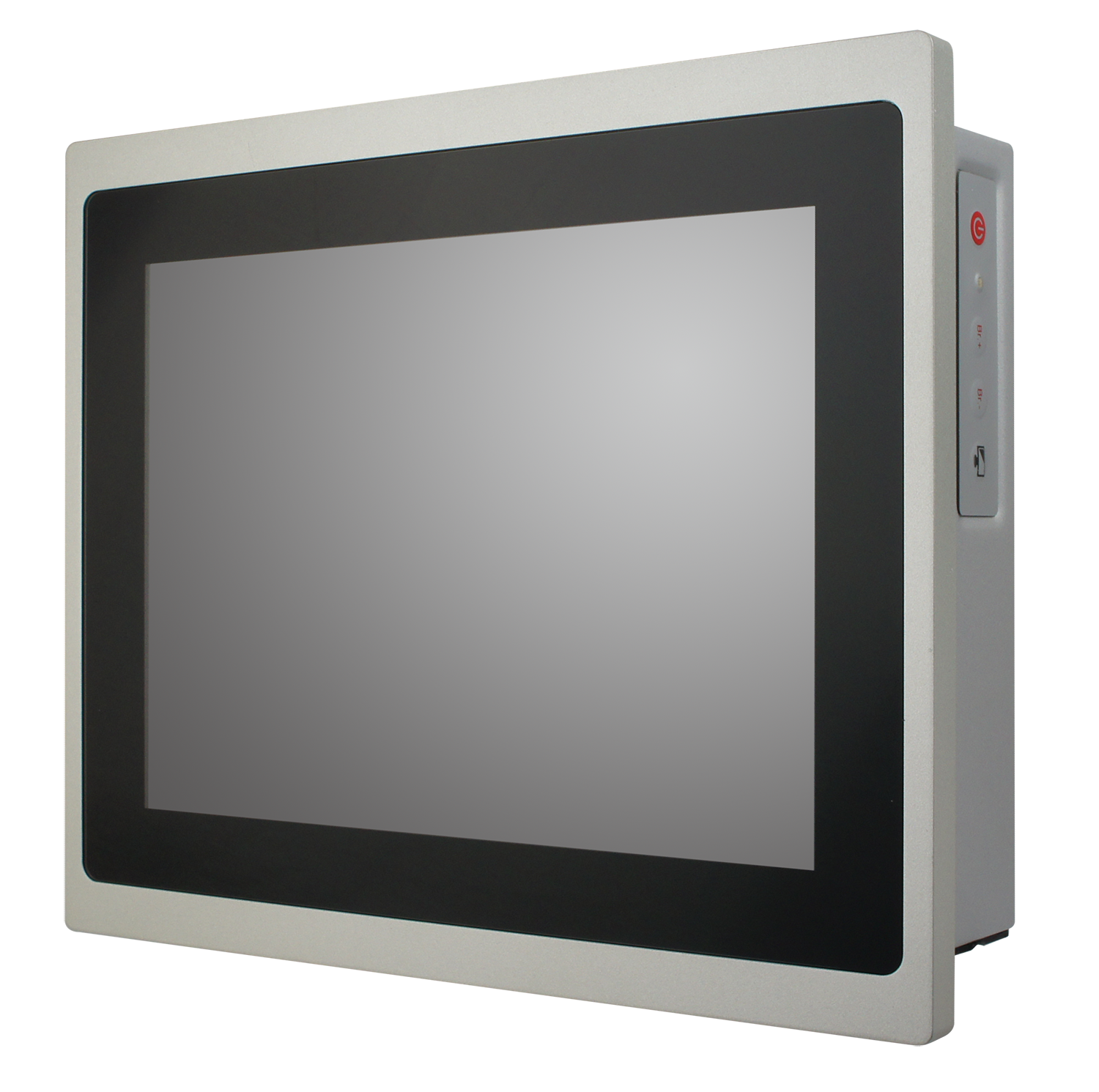

BYTEM-123-PC

The BYTEM-123-PC is based on the quad-core Intel® Atom™ processor E3845 and EN50155 certified for railway applications. It provides high computing performance and low power consumption, silently operating at temperatures from -40°C to 75°C. Meeting EN50155 standards, the units support input voltages including 24V (default) as well as 72V and 110V (options). Their front panels have IP65 protection to make them dust tight and wash-down capable, and also IP54 rating for the whole unit. To enhance functionality and performance of the BYTEM-103-PC, IBASE has included two-finger multi-touch screen to enable users with greater control of the user interface.

  • EN50155 certified
  • Optical bonding
  • Front bezel IP65 and full IP54 protection
  • 24V DC power input with M12 connector, 48V DC, 72V DC or 110V DC as options
  • Two M12 LAN ports and one M12 USB port
  • Movable and programmable membrane keypad
  • Additional rack mount kit

BYTEM-123-PC: 12.1” (1024 x 768) Panel PC with IB897, Intel® Atom™ Processor E3845 1.91GHz, 4GB DDR3L SO-DIMM, 64G SSD, projected capacitive touch, w/o power adaptor
