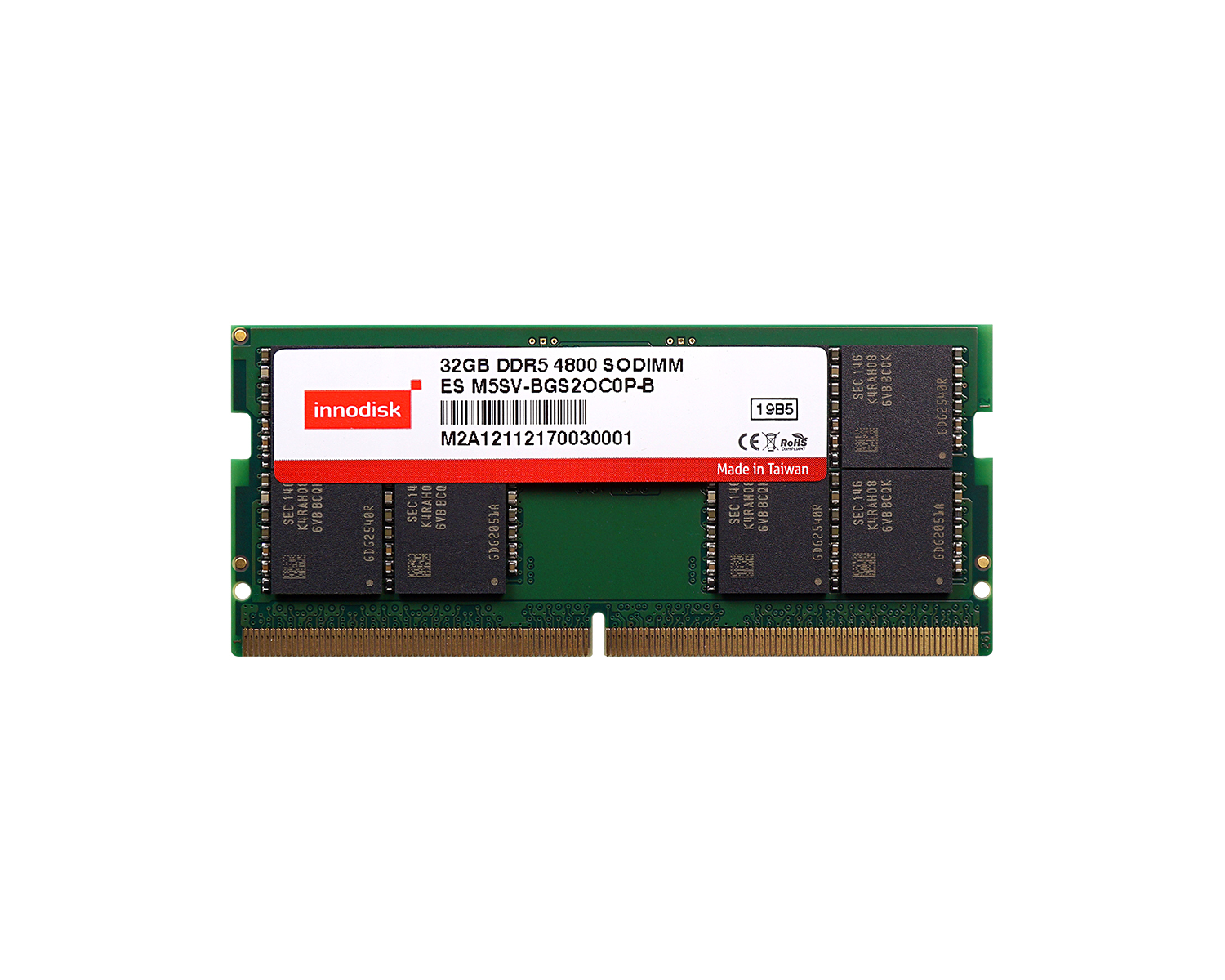

DDR5 DRAM Modules

The DDR5 specification details up to four times as much capacity per IC, raising the maximum achievable per die capacity to 64Gb and bringing the maximum potential capacity for a single DDR5 DIMM to 128GB.

Key Features:

  • High Capacity and Speed (Maximum Potential Up to 128GB & 6400MT/s)
  • Small Outline Dual In-line Memory Module
  • Fully Tested and Optimized for Stability and Performance
  • Uses Original IC to Meet Strict Industrial Standards
  • On module Power Management IC (JEDEC Standard: 1.1V)
  • Operating Environment: 0°C ~ 85°C
  • Anti-Sulfuration Protection Against Harsh Environments
  • RoHS Compliance
  • CE/FCC Certification
Density Component
Composition		 Part Number Rank Voltage Description
8GB 1GX16 M5SV-8GMYZC0P-A 1Rx8 1.1V DDR5 4800 SODIMM
8GB 1GX16 M5SV-8GSYZC0P-B 1Rx8 1.1V DDR5 4800 SODIMM
16GB 2Gx8 M5SV-AGM2NC0P-A 1Rx8 1.1V DDR5 4800 SODIMM
32GB 2Gx8 M5SV-BGM2OC0P-A 2Rx8 1.1V DDR5 4800 SODIMM
16GB 2Gx8 M5SV-AGS2NC0P-B 1Rx8 1.1V DDR5 4800 SODIMM
32GB 2Gx8 M5SV-BGS2OC0P-B 2Rx8 1.1V DDR5 4800 SODIMM
