EMPL-G201

SKU 4961

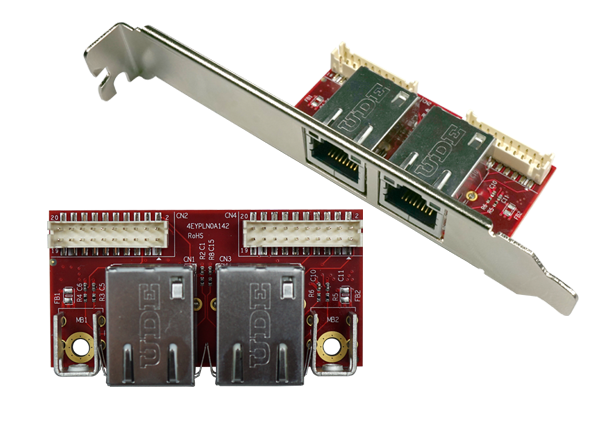

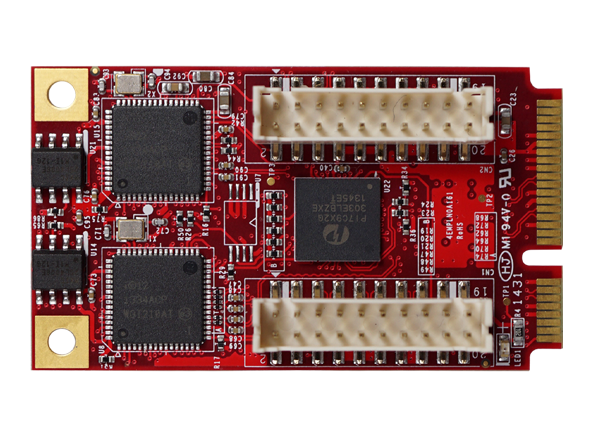

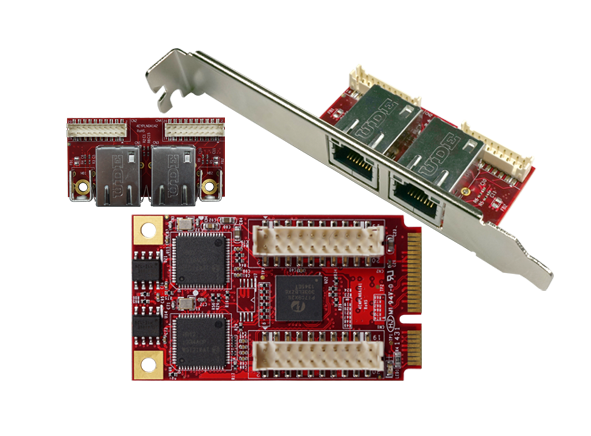

The EMPL-G201 is a Mini PCIe to dual isolated GbE LAN embedded peripheral module produced by Innodisk, featuring:

  • Dual Isolated GbE LAN Ports
  • EN61000-4-5 2kV Surge Protection Compliant
  • IEC 60950-1:2005 + A1: 2009 + A2:2013 2kV HiPOT Protection Compliant
  • EN61000-4-2 (ESD) Air-15kV, Contact-8kV Compliant

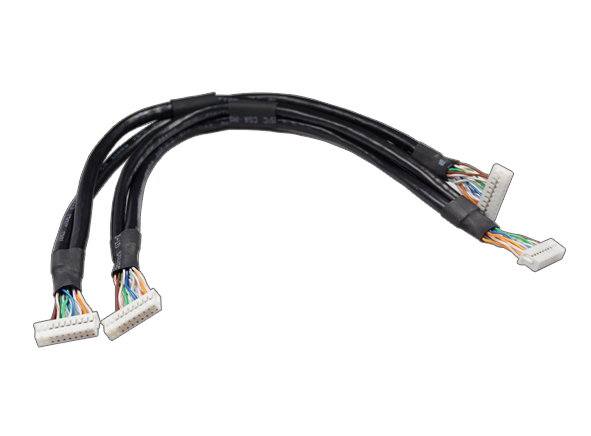

  • Flexible Daughter Board with Cable to fit into Different System
  • Optional Terminal Mounting Hole or Bracket for Daughter Board
  • -40°C~85°C Industrial Operation Temperature

Please see the product PDF for more in-depth product specifications and do not hesitate to contact us if you have any questions.

  • Dual Isolated GbE LAN Ports
  • EN61000-4-5 2kV Surge Protection Compliant
  • IEC 60950-1:2005 + A1: 2009 + A2:2013 2kV HiPOT Protection Compliant
  • EN61000-4-2 (ESD) Air-15kV, Contact-8kV Compliant
  • Flexible Daughter Board with Cable to fit into Different System
  • Optional Terminal Mounting Hole or Bracket for Daughter Board
  • -40°C~85°C Industrial Operation Temperature

EMPL-G201-C1: Terminal Mounting Hole, 0°~70°C Standard Operation Temperature

EMPL-G201-W1: Terminal Mounting Hole, -40°C~85°C Wide Operation Temperature

EMPL-G201-C2: Bracket, 0°~70°C Standard Operation Temperature

EMPL-G201-W2: Bracket, -40°C~85°C Wide Operation Temperature

  • Innodisk
