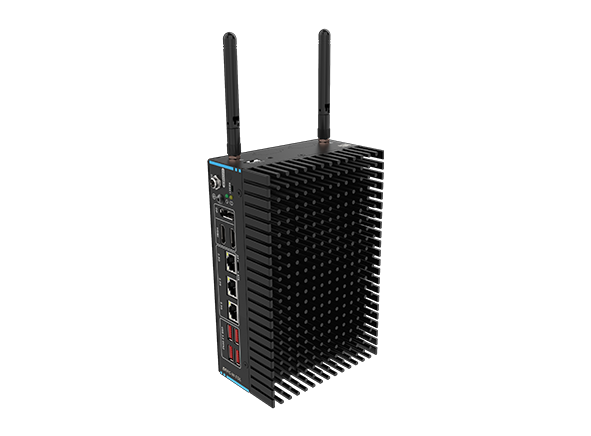

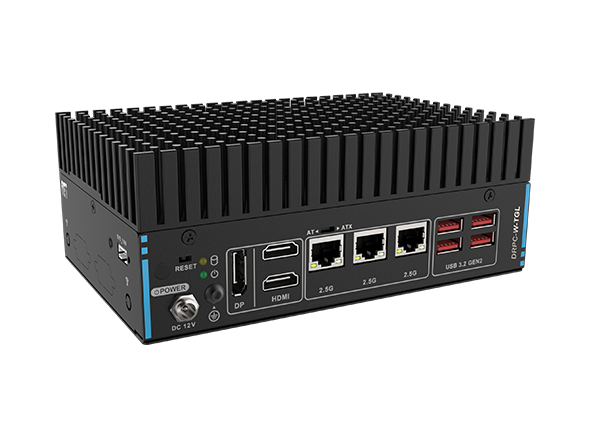

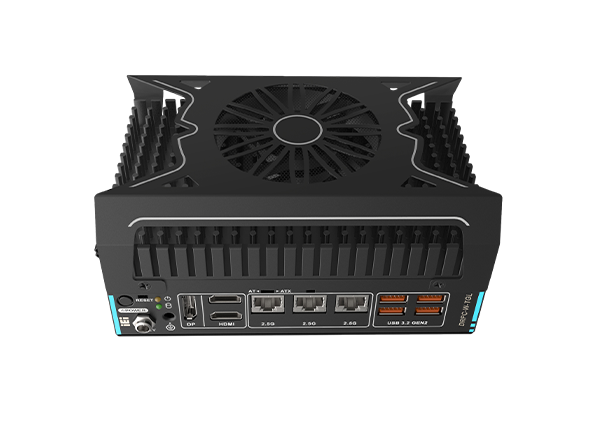

DRPC-W-TGL



DRPC-W-TGL Fanless DIN-Rail Embedded System with Tiger Lake 11th Gen Intel® Celeron™ Solution (up to 4 cores)



KEY FEATURES:

Supported CPU:

  • Intel® Core™ i7-1185G7E 1.8 GHz (up to 4.4 GHz, quad-core, TDP 15W)
  • Intel® Core™ i5-1145G7E 1.5 GHz (up to 4.1 GHz, quad-core, TDP 15W)
  • Intel® Core™ i3-1115G4E 2.2 GHz (up to 3.9 GHz, dual-core, TDP 15W)
  • Intel® Celeron™ 6305 1.8 GHz (dual-core, TDP 15W)
  • Support three independent display
  • 3 x 2.5GbE ports
  • 1 x M.2 A Key
  • 1 x M.2 B Key (with SIM card slot)
  • CE/FCC compliant
  • Wide operating temperature range (-20°C to +60°C)
  • Half-sine wave shock 5G, 11ms, 3 shocks per axis

Please see the product PDF for more in-depth product specifications and certification details, and do not hesitate to contact us if you have any questions.

Backplane Systems Technology is proud to introduce iEi’s DRPC-W-TGL.. Designed for use with iEi’s 3.5″ single board computers, the iEi DRPC-W series are small, DIN-rail mounted embedded systems. Its small size is suitable for installing into applications that need numerous I/O connectivity and improved performance yet have a small footprint. The iEi DRPC-W series is made to manage communication for IoT gateways, motion, and vision applications on the factory floor.



The DRPC-W-TGL fanless embedded system provides great performance and energy efficiency thanks to its 11th Generation Intel CoreTM/Celeron® processor and Intel® UHD graphics. The Intel® CoreTM CPU, which powers the DRPC-W-TGL fanless embedded system and has a maximum turbo frequency of 4.40 GHz, provides a performance boost of two times over Whiskey Lake.

Ordering Information:

Part No. Description
DRPC-W-TGL-U-CC-R10 Fanless System with Intel® Tiger Lake-U Celeron® 6305 1.8GHz(dual-core, TDP 15W), 3 x 2.5GbE Lan, 2 x HDMI, 1 x DP, 8GB memory pre-installed, 12V
DC, RoHS
DRPC-W-TGL-U-i3C-R10 Fanless System with Intel® Tiger Lake-U Core™ i3-1115G4E 2.2GHz(up to 3.9GHz, dual-core,TDP 15W), 3 x 2.5GbE Lan, 2 x HDMI, 1 x DP, 8GB memory
pre-installed, 12V DC, RoHS
DRPC-W-TGL-U-I5C-R10 Fanless System with Intel® Tiger Lake-U Core™ i5-1145G7E 1.5GHz(up to 4.1GHz, quad-core, TDP 15W), 3 x 2.5GbE Lan, 2 x HDMI, 1 x DP, 8GB memory
pre-installed, 12V DC, RoHS
DRPC-W-TGL-U-i7C-R10 Fanless System with Intel® Tiger Lake-U Core™ i7-1185G7E 1.8GHz(up to 4.4GHz, quad-core, TDP 15W), 3 x 2.5GbE Lan, 2 x HDMI, 1 x DP, 8GB memory
pre-installed, 12V DC, RoHS
