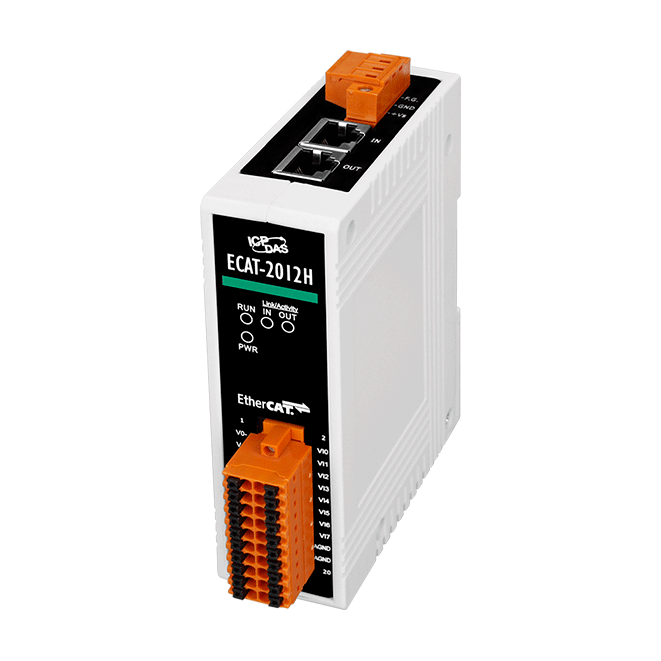

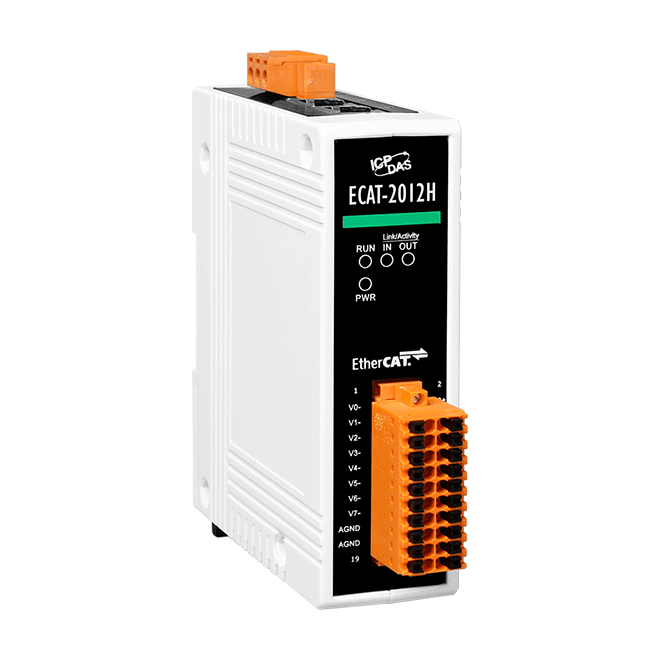

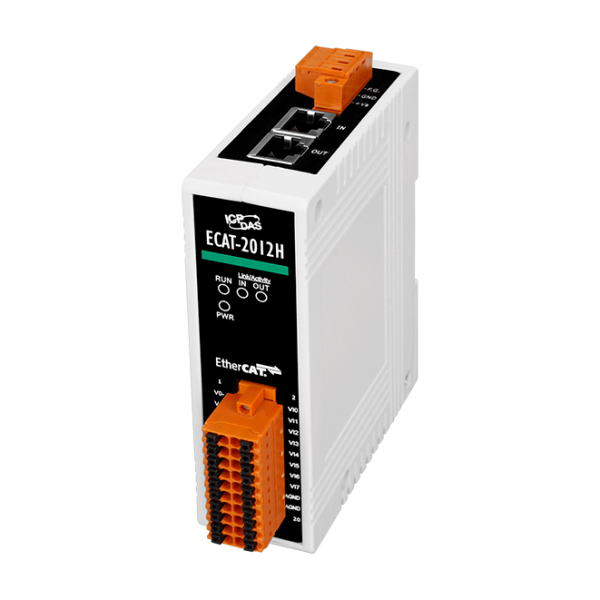

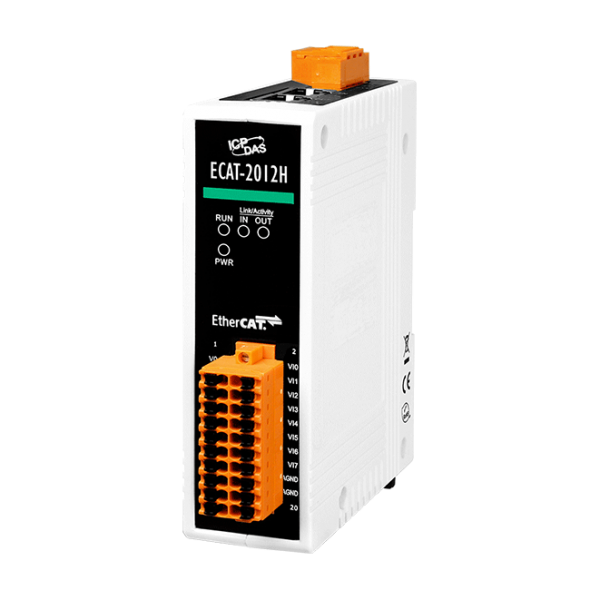

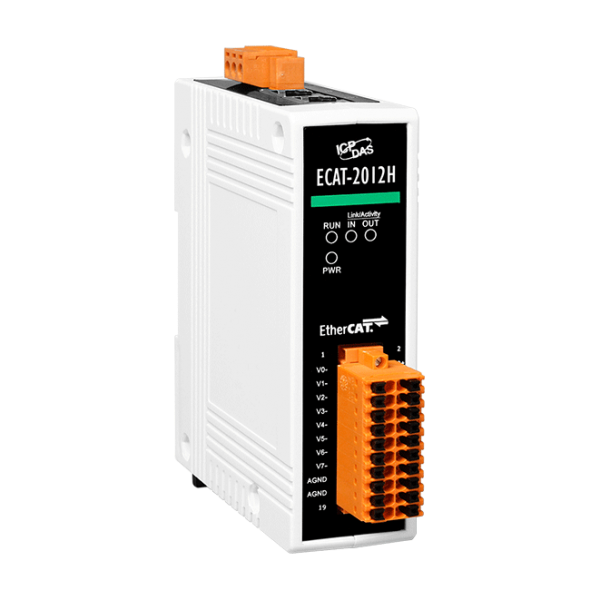

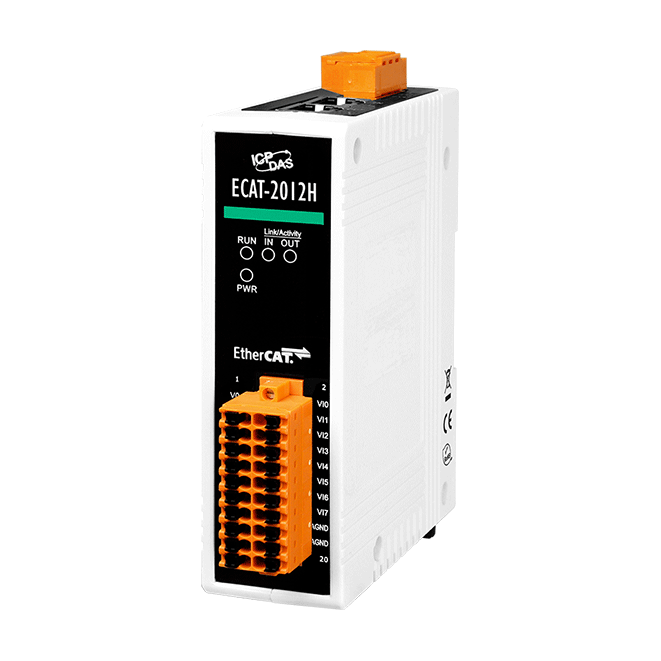

ECAT-2012H

The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The ECAT-2012H is built in 16-bit, 8-ch differential inputs or 16-ch single-ended inputs. Users can obtain the input status via the process data. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.

• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic
• 2 x RJ-45 bus interface
• Distance between Stations up to 100 m (100BASE-TX)
• Support daisy chain connection
• EtherCAT conformance test tool verified
• Removable terminal block connector
• LED indicators
• Built-in Analog Input: 16bit, 8-/16-ch
• RoHS compliant

ECAT-2012H CR: EtherCAT Slave I/O Module with 16-bit, 16-ch/8-ch AI (RoHS)
